ASUS NCCH-DR
Logs
chipChipset
cpuSocket
Socket 604 (mPGA604)
speedFSB speed
800MHz
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 268mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM types
DDR UDIMMDDR UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
tag Also known as
  • ASUS AP1600R-E2 (AA2/AI2) 1U Rackmount system board
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
6x
SATA I
2x
Serial
2x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
32-bit mini-PCI
2x
64-bit PCI-X
notes Notes

the mini-PCI slot is used for BMC

Last updated 2025-05-21T11:46:37Z
Board info score is 9.8/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/17/2006-Canterwood-NCCH-DR-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
12/05/2006-Canterwood-NCCH-DR-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/15/2005-Canterwood-NCCH-DR-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/10/2004-Canterwood-NCCH-DR-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/18/2004-Canterwood-NCCH-DR-00
Note
Core version
6.00PG
BIOS version
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
1.00
OS support
Windows 2000 Windows XP/2k3
Arch
x86 , x86-64
Size
374.1KB
Filename
Name
Version
2.0.2600.2
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
6.9MB
Filename
Name
Version
1.17
OS support
MS-DOS
Arch
x86
Size
25.1KB
Filename
Name
Version
4.00.041
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
144.8KB
Filename
Name
Version
7.4.19
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
193.2KB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Name
Version
3.6.3.3 (Win2000/XP) / 1.0.2010.827 (Vista/Win7/2008)
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Chip
Release date
2003-08-07
File
Logs
Chip
Release date
2006-09-26
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

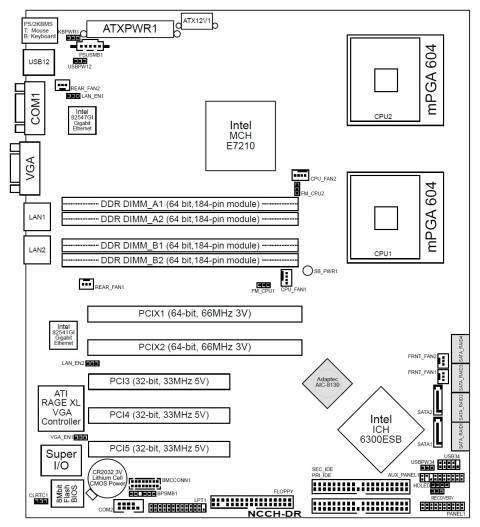

image1 Image 1 of 4 (ASUS)

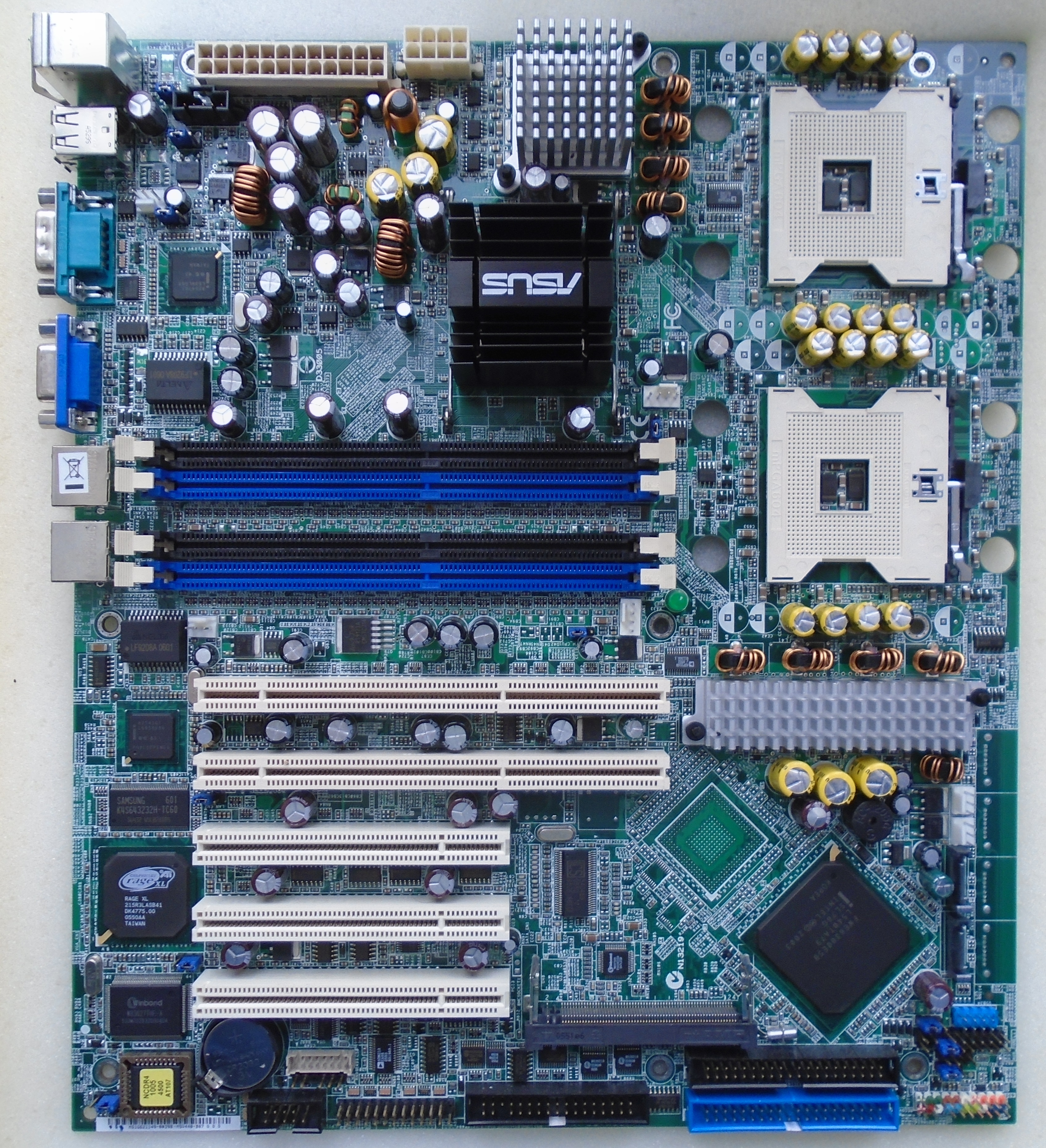

image2 Image 2 of 4 (PC Hoarder Patrol)

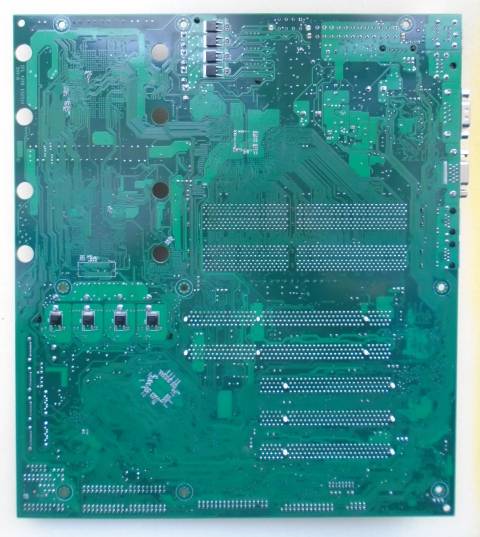

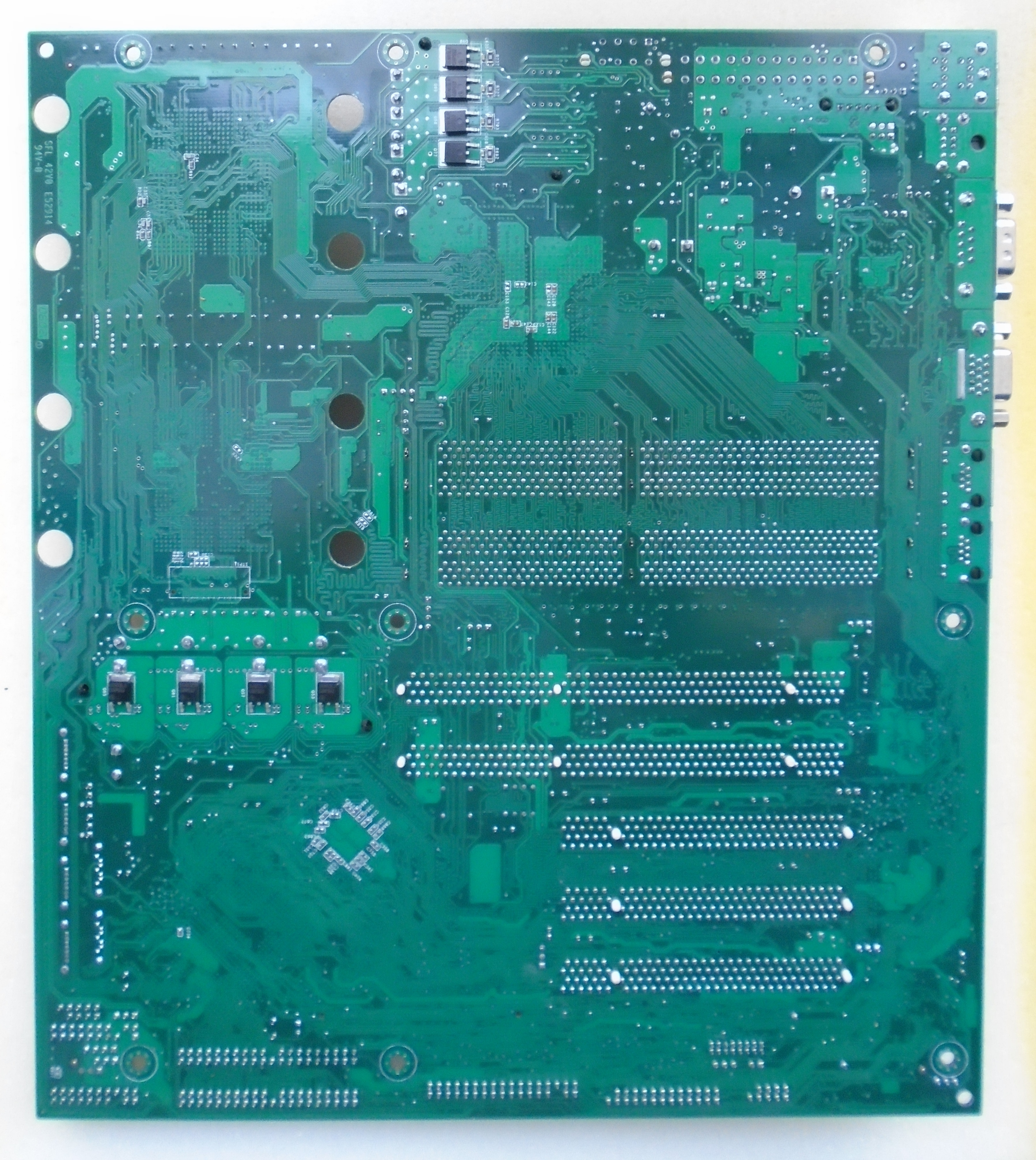

image3 Image 3 of 4 (PC Hoarder Patrol)

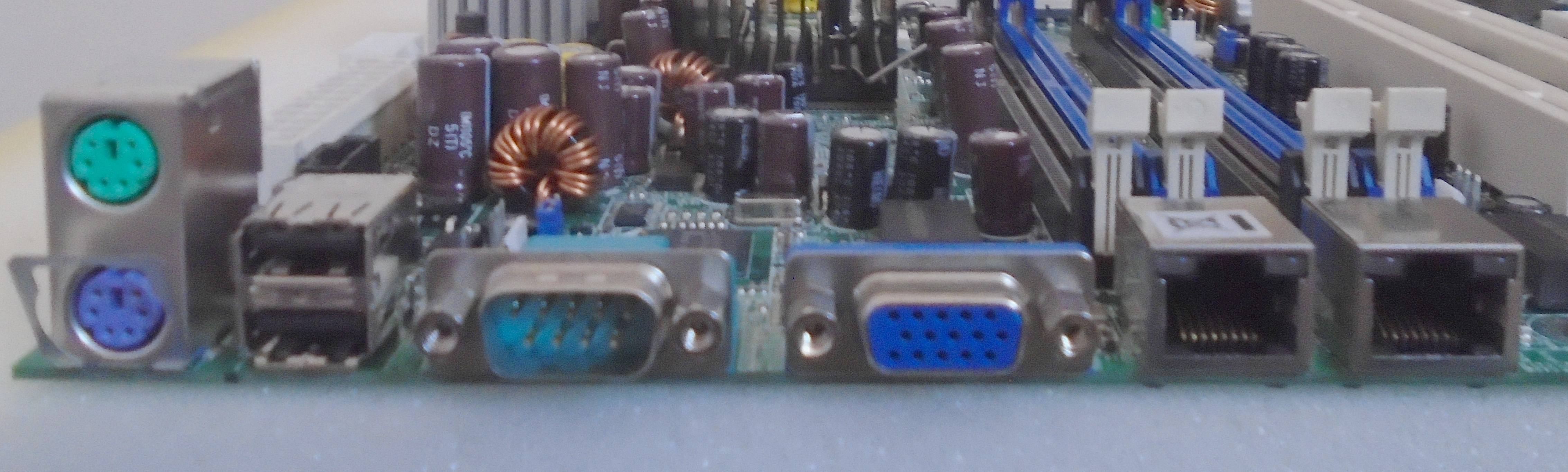

image4 Image 4 of 4 (PC Hoarder Patrol)
