ASUS NCCH-DL
Chipset
Socket
FSB speeds 533MHz800MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 250mm
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM types DDR UDIMMDDR UDIMM ECC
PSU connector
Multi CPU support2 CPUs

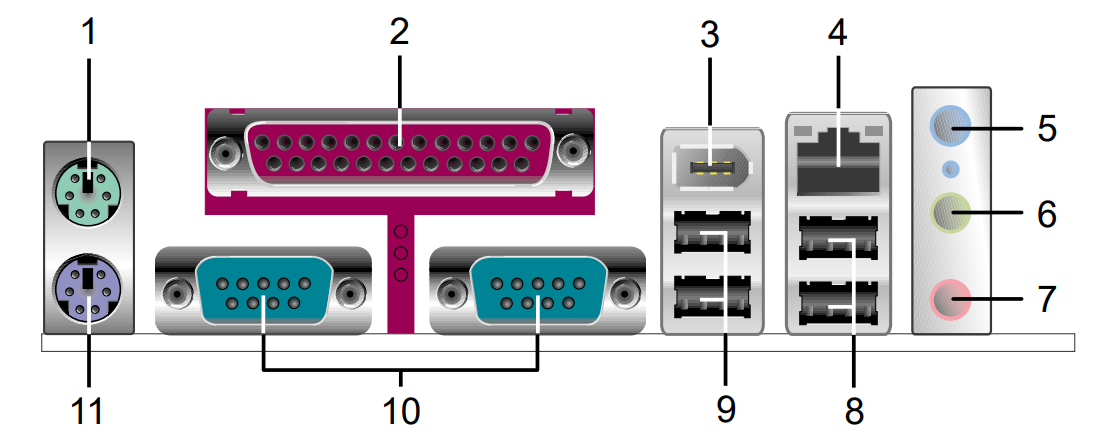

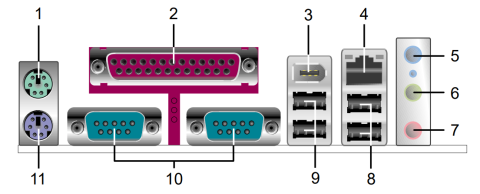

I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA I
2x
Serial
4x
USB 2.0
Expansion slots1x
1.5V AGP Pro
2x
32-bit PCI
2x
64-bit PCI-X
Notes
Does NOT support FSB 400 CPUs.
Last updated 2026-01-08T08:56:48Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> SATA ctrl.
CPU family support
6 BIOS files available
Award - 6 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.00.041
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
144.8KB
Filename
Name
Version
7.4.19
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
193.2KB
Filename
Name
Version
11.1
OS support
MS-DOS
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
, x86-64
Size
36.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
Empty
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-12
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Image 1 of 3 (ASUS)
Image 2 of 3 (Carlos S. M.)
Image 3 of 3 (ASUS)
