ASUS M5A78L-M PLUS/USB3
Chipset
Sockets
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 229mm
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM types DDR3 UDIMMDDR3 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
1x
Toslink
8x
USB 2.0
4x
USB 3.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-05-15T18:59:19Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
-> USB ctrl.
CPU family support
3 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0502-000001-00101111-111816-RS760_SB7-A3690001
Note
Core version
080015
BIOS version
Logs
POST string
65-0404-000001-00101111-062716-RS760_SB7-A3690001
Note
Core version
080015
BIOS version
Logs
POST string
65-0206-000001-00101111-040516-RS760_SB7-A3690001
Note
Core version
080015
BIOS version
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.16.32.1
OS support
Windows 10
Windows 7
Windows 8.x
Windows Vista
Arch
x86
, x86-64
, IA-64
Size
8.9MB
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86
, x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86
, x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86
, x86-64
Size
3.6MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
File
Logs

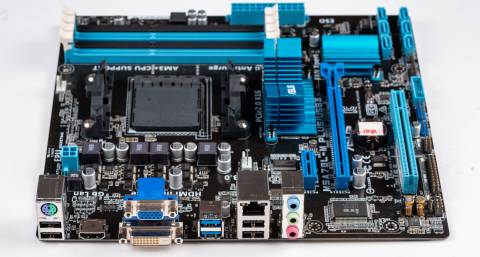

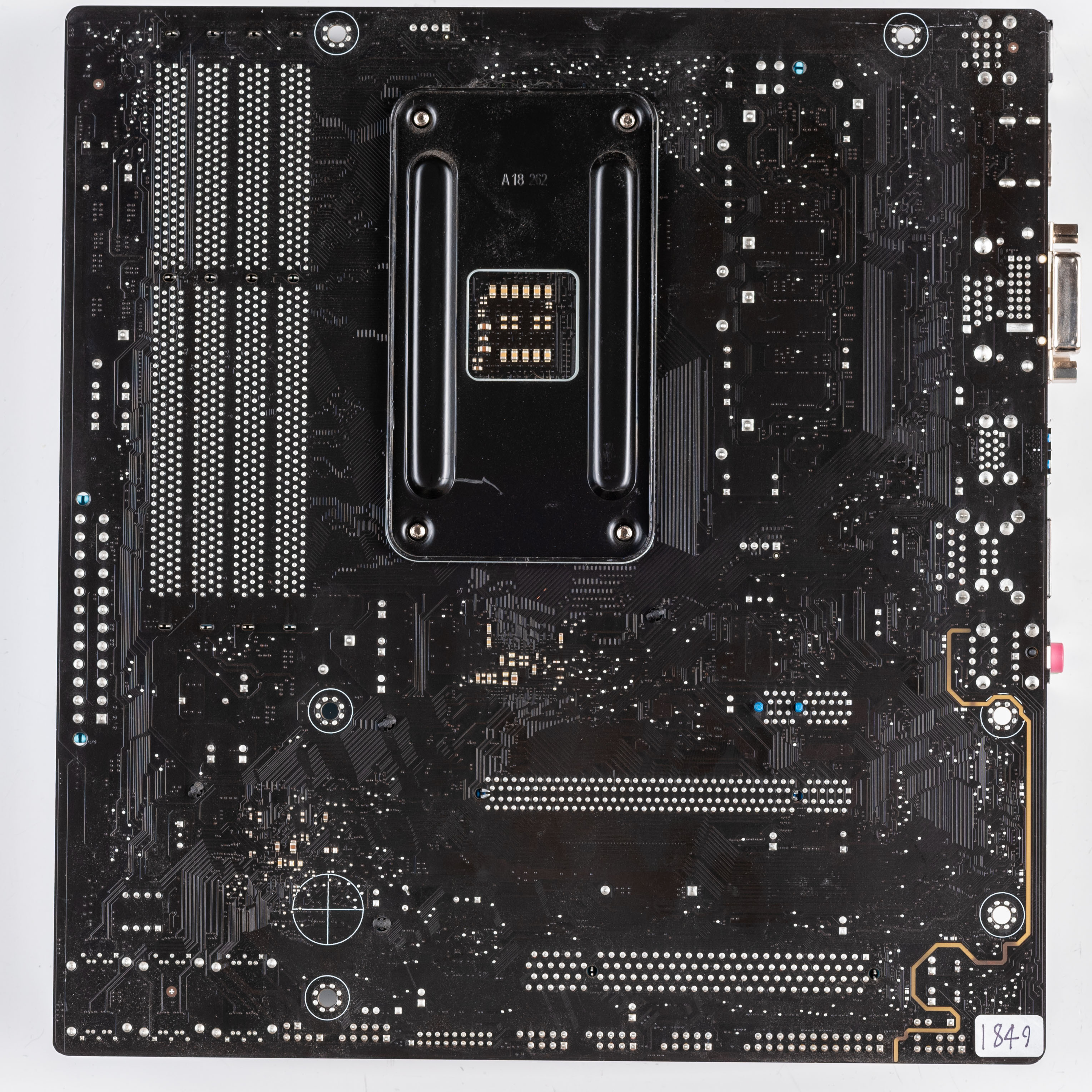

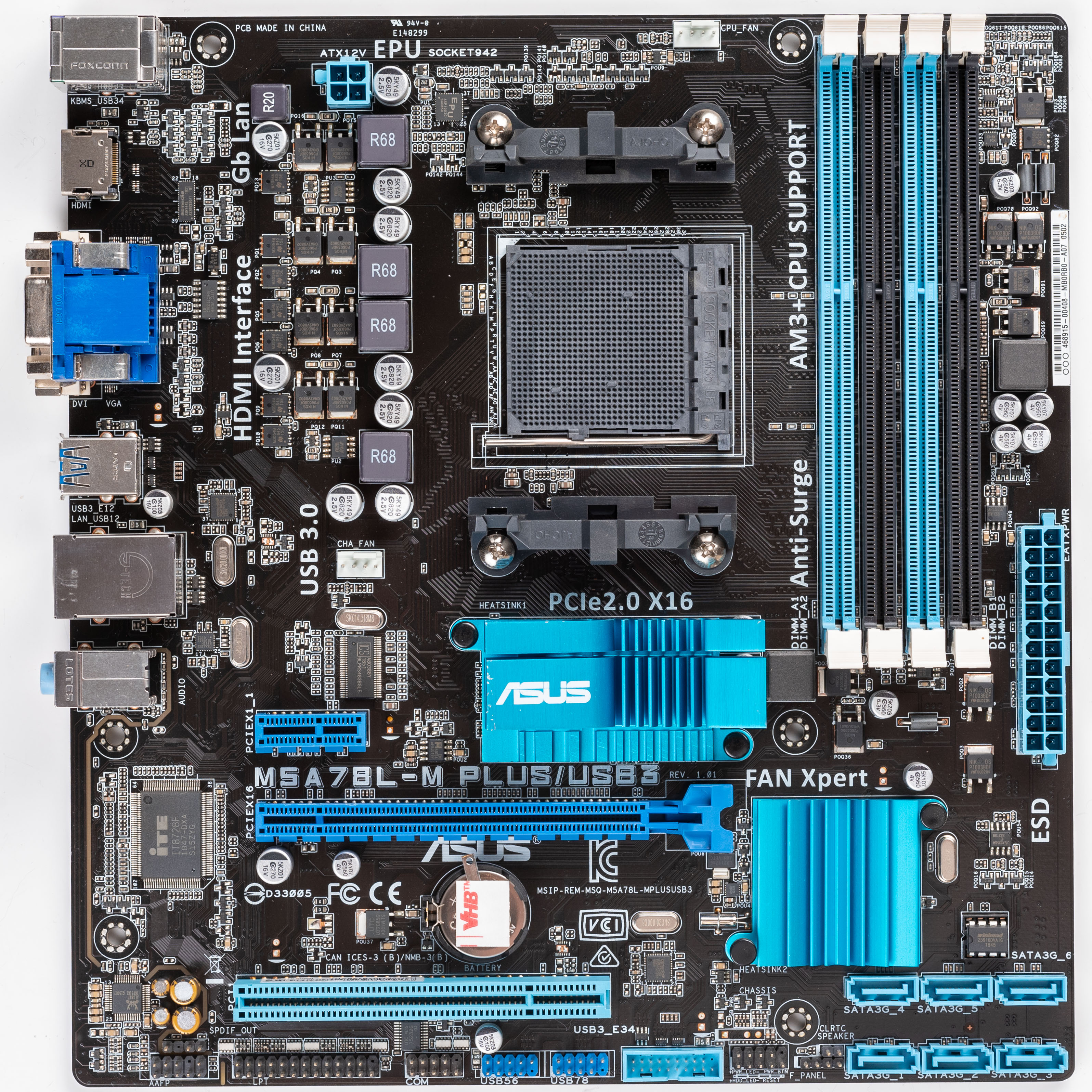

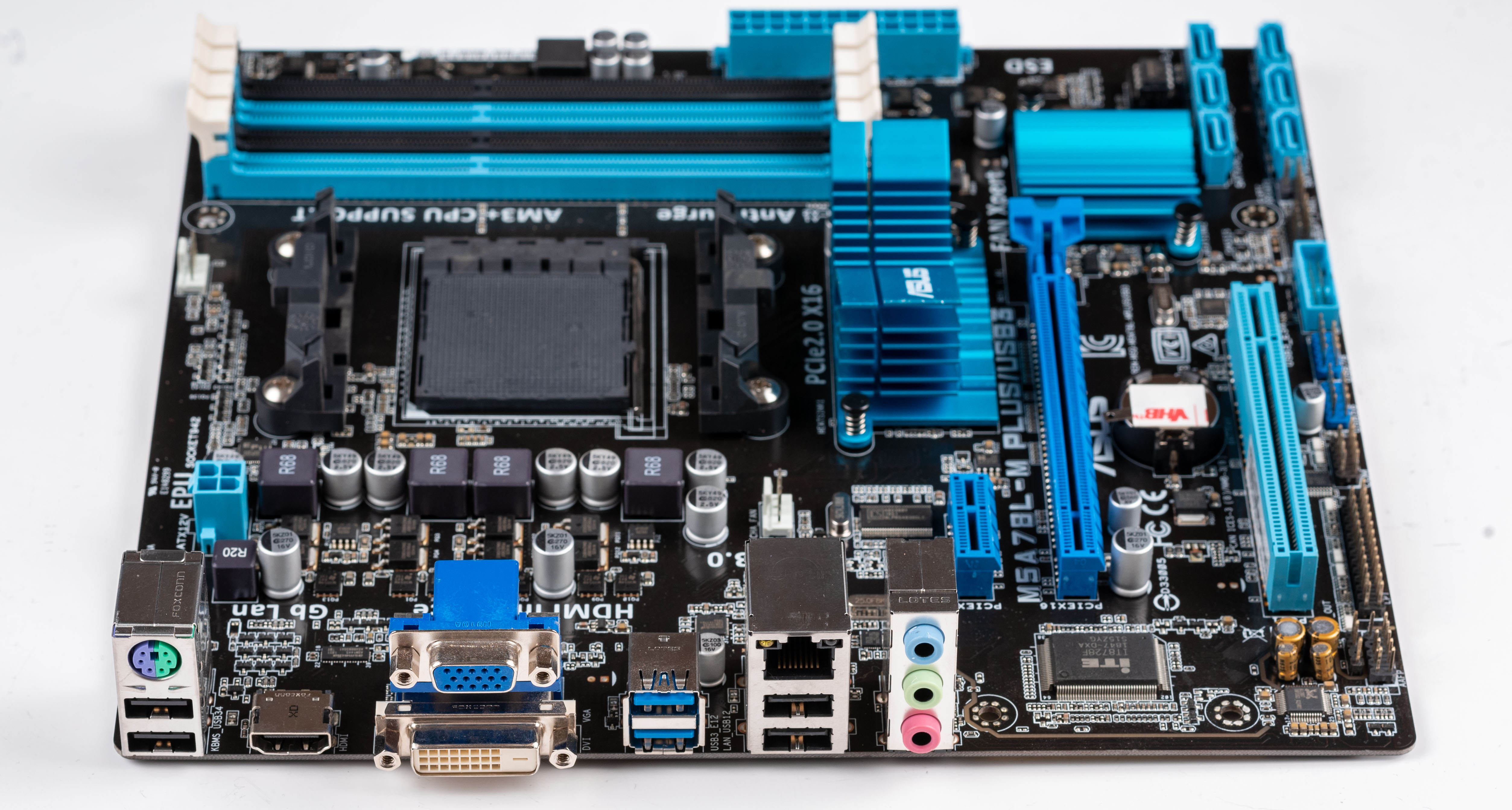

Image 1 of 4 (ASUS)
Image 2 of 4 (Motherboard Continuum)
Image 3 of 4 (Motherboard Continuum)
Image 4 of 4 (Motherboard Continuum)
