ASUS M5A78L-M LX V2 (Rev. 2.00)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 203mm
ramMax VRAM size
1GB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-04-12T17:32:49Z
Board info score is 9.2/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-1701-000001-00101111-111816-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-1602-000001-00101111-091114-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-1401-000001-00101111-042713-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-1302-000001-00101111-111412-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-1201-000001-00101111-090412-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-1001-000001-00101111-071812-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-0902-000001-00101111-032612-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-0802-000001-00101111-022812-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-0801-000001-00101111-021512-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-0601-000001-00101111-113011-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-0402-000001-00101111-092011-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
POST string
65-0303-000001-00101111-090111-RS760_SB7-A1974001
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

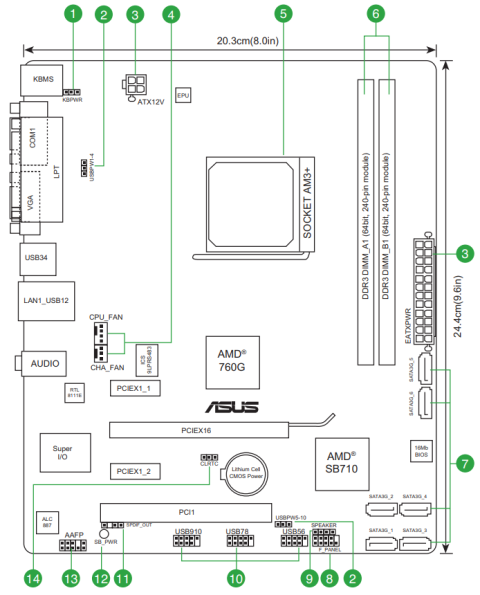

image1 Image 1 of 3 (ASUS)

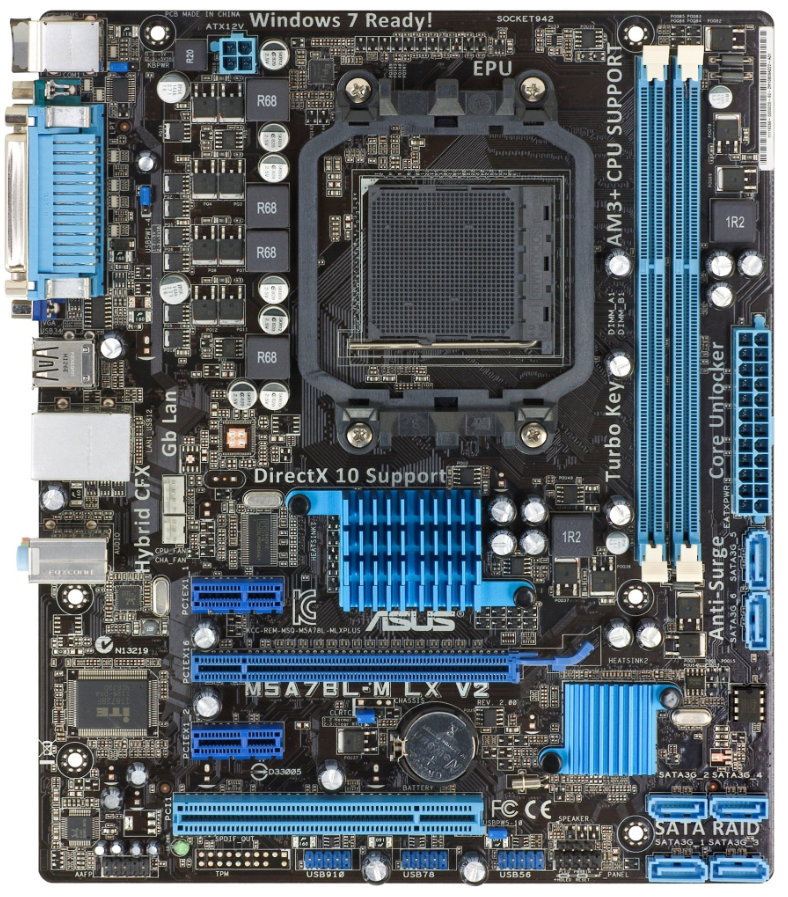

image2 Image 2 of 3 (ASUS)

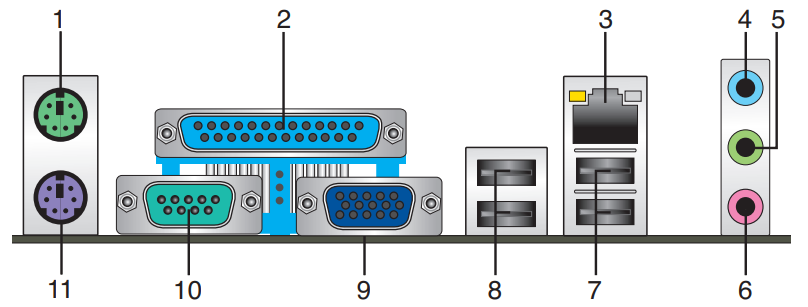

image3 Image 3 of 3 (ASUS)
