ASUS M5A78L-M LX (Rev. 1.00)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 203mm
ramMax VRAM size
1GB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(DDR3-1866)
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-11-02T14:13:51Z
Board info score is 9.2/10
bios 11 BIOS files available

vendor AMI - 11 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0801-000001-00101111-113011-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-1502-000001-00101111-111412-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-1603-000001-00101111-110513-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-0602-000001-00101111-092111-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-1401-000001-00101111-090412-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-0510-000001-00101111-081511-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-1202-000001-00101111-071812-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-0404-000001-00101111-042211-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-1003-000001-00101111-032612-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-0205-000001-00101111-031411-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
POST string
65-0901-000001-00101111-021512-RS760_SB7-A1860001
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

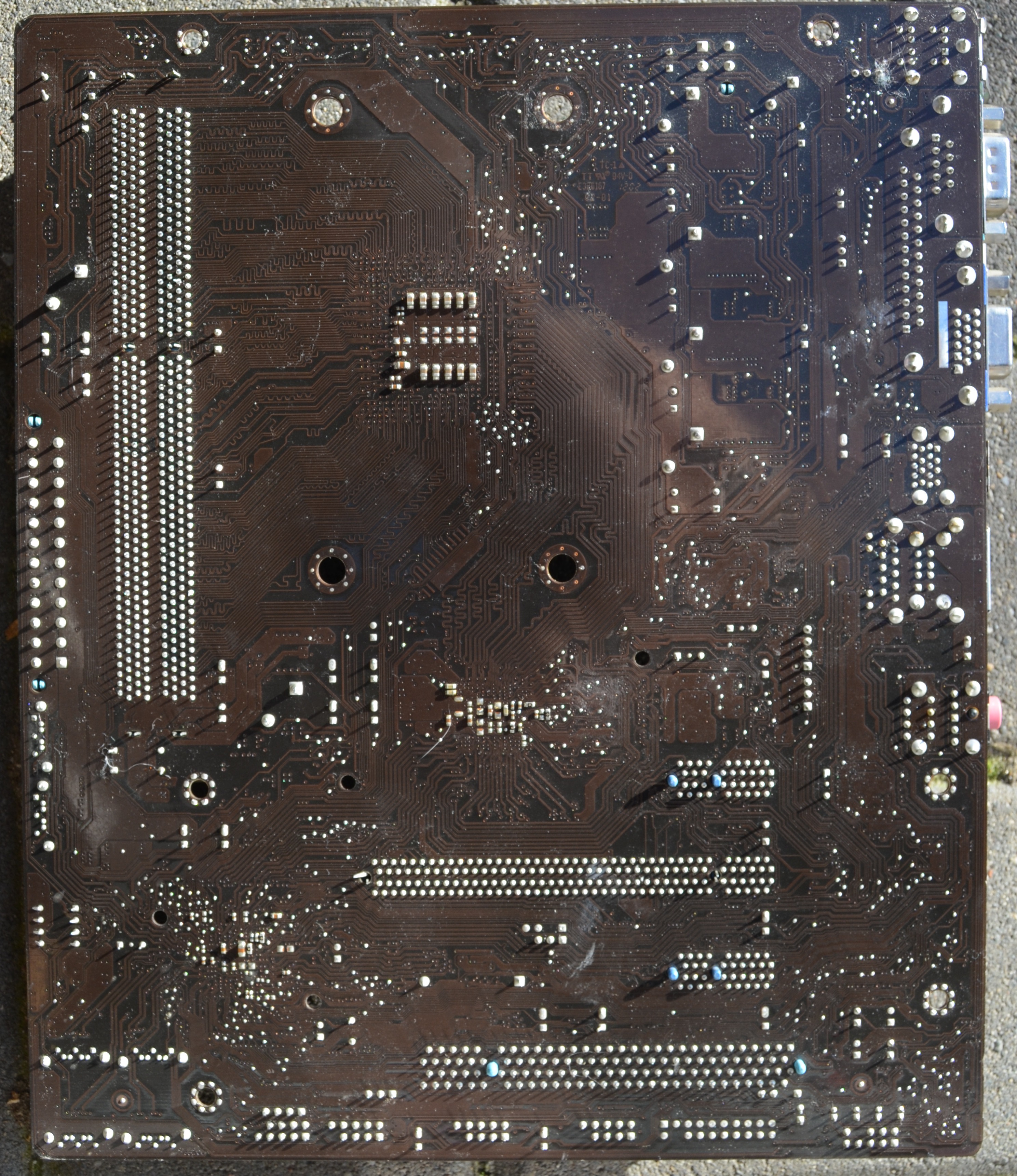

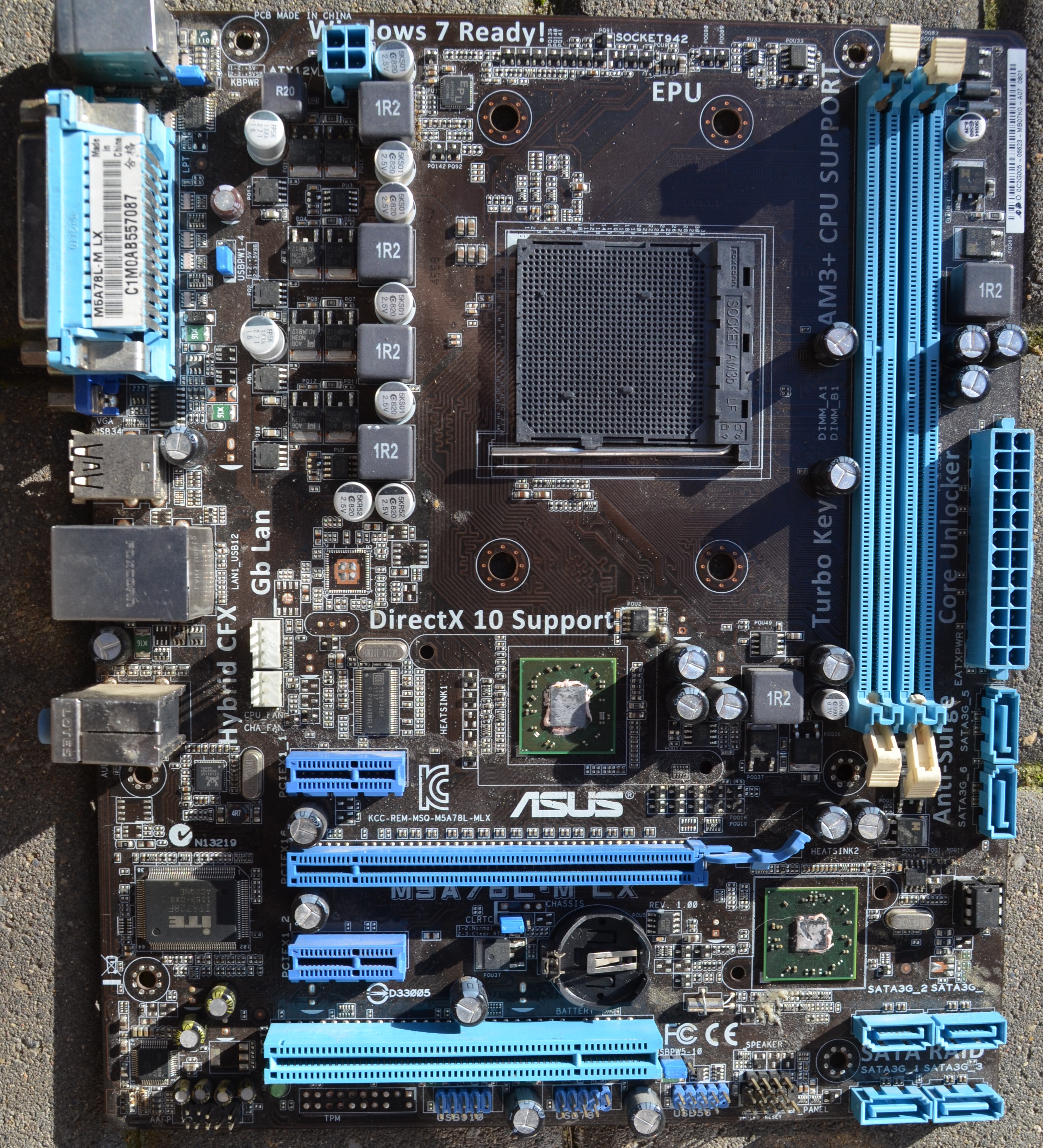

image1 Image 1 of 3 (ASUS)
image2 Image 2 of 3 (kotelstudios)
image3 Image 3 of 3 (kotelstudios)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
