ASUS M5A78L-M LX/BR (Rev. 1.00)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 203mm
ramMax VRAM size
1GB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(DDR3-1866)
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
notes Notes

Can be cross-flashed to M5A78L-M LX V2 however it causes incorrect h/w monitoring reading.

Officially supports CPUs up to 95W TDP, will start with a warning for higher models.

Last updated 2025-11-02T14:15:17Z
Board info score is 9.4/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-1201-000001-00101111-030417-RS760_SB7-A1916001
Note
Core version
080015
BIOS version
Logs
POST string
65-1101-000001-00101111-041913-RS760_SB7-A1916001
Note
Core version
080015
BIOS version
Logs
POST string
65-0901-000001-00101111-082112-RS760_SB7-A1916001
Note
Core version
080015
BIOS version
Logs
POST string
65-0802-000001-00101111-071912-RS760_SB7-A1916001
Note
Beta BIOS
Core version
080015
BIOS version
Logs
POST string
65-0702-000001-00101111-032612-RS760_SB7-A1916001
Note
Beta BIOS
Core version
080015
BIOS version
Logs
POST string
65-0502-000001-00101111-120111-RS760_SB7-A1916001
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

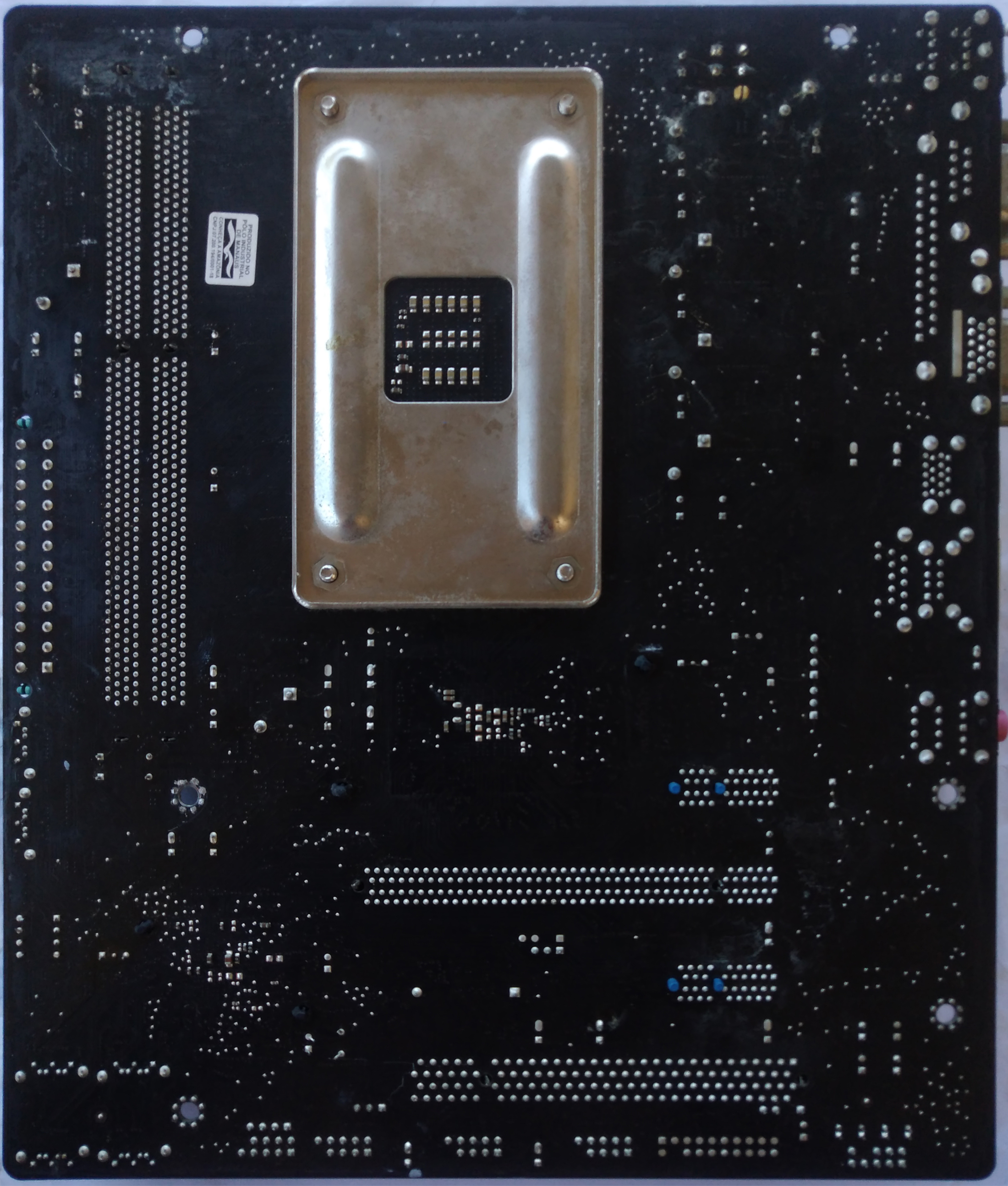

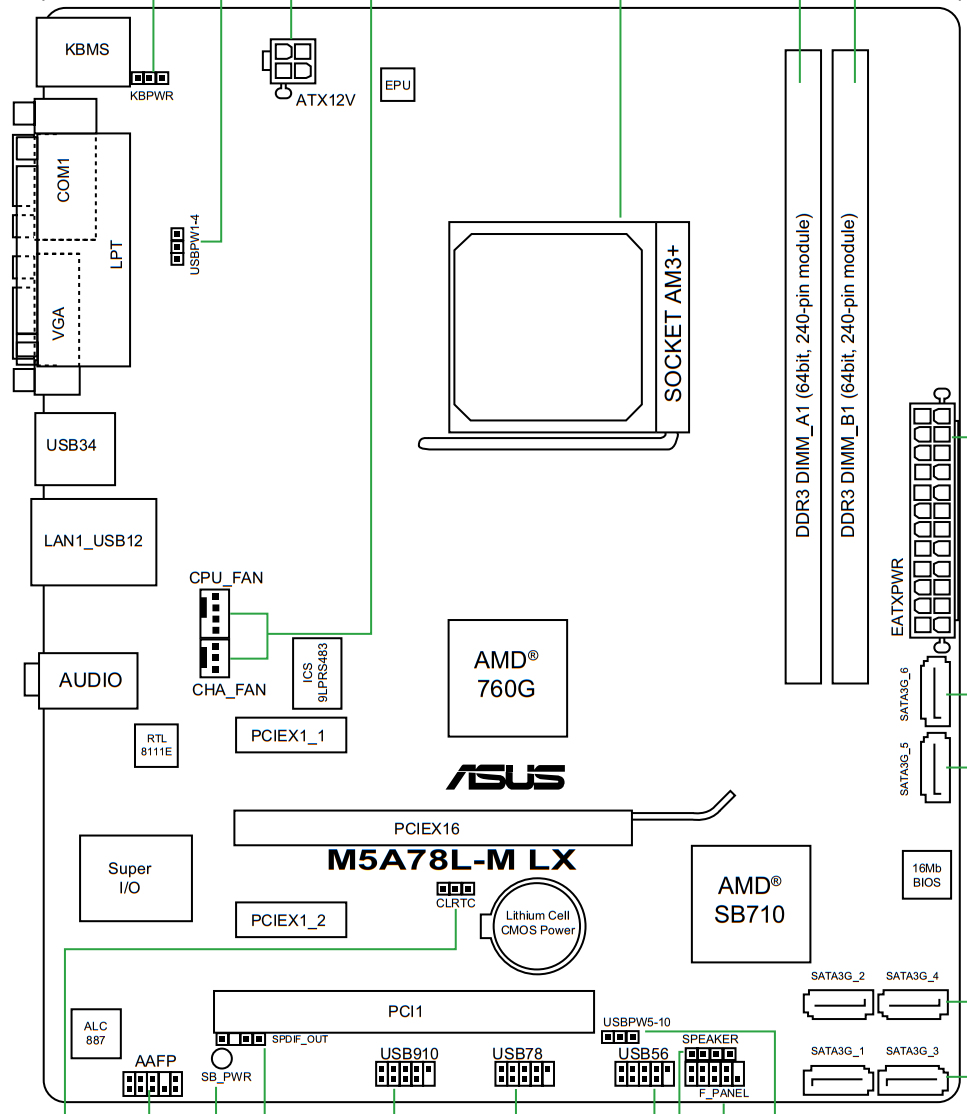

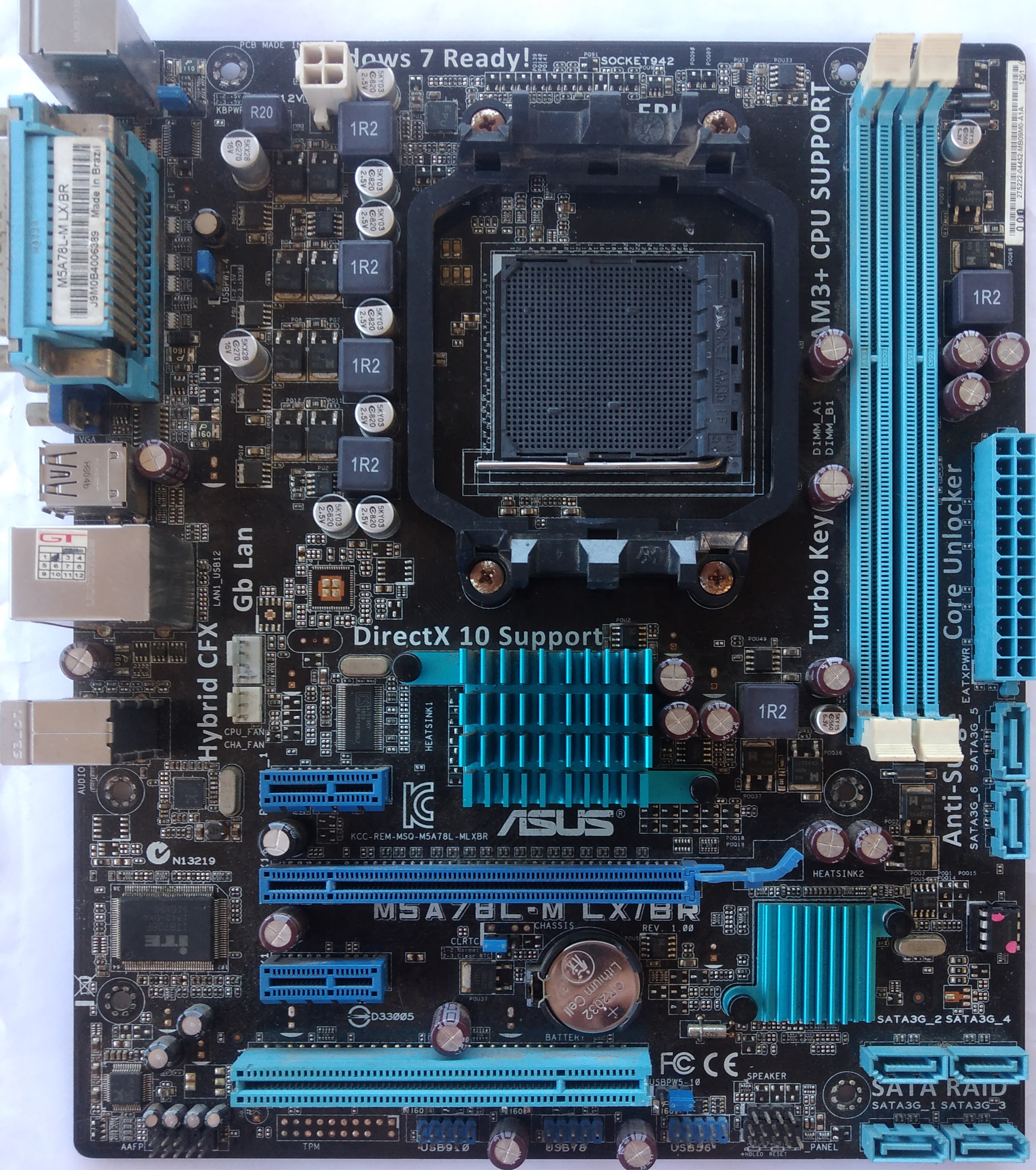

image1 Image 1 of 4 (ASUS)
image2 Image 2 of 4 (nurzaksubterra33)
image3 Image 3 of 4 (nurzaksubterra33)
image4 Image 4 of 4 (ASUS)
