ASUS M4A88TD-V EVO/USB3 (Rev. 1.06)
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA III
1x
Serial
1x
Toslink
12x
USB 2.0
2x
USB 3.0
1x
VGA
1x
eSATA II
cardExpansion slots
3x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-08-07T14:40:12Z
Board info score is 9.4/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-2301-000001-00101111-080912-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-2201-000001-00101111-051112-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-2001-000001-00101111-070811-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1702-000001-00101111-122210-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1601-000001-00101111-090810-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1503-000001-00101111-081910-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1404-000001-00101111-072110-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1401-000001-00101111-061110-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1308-000001-00101111-053110-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1202-000001-00101111-042810-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1106-000001-00101111-042310-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
POST string
65-1015-000001-00101111-033110-RS880_SB8-A1638001
Note
Core version
080015
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
11.3MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2010-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

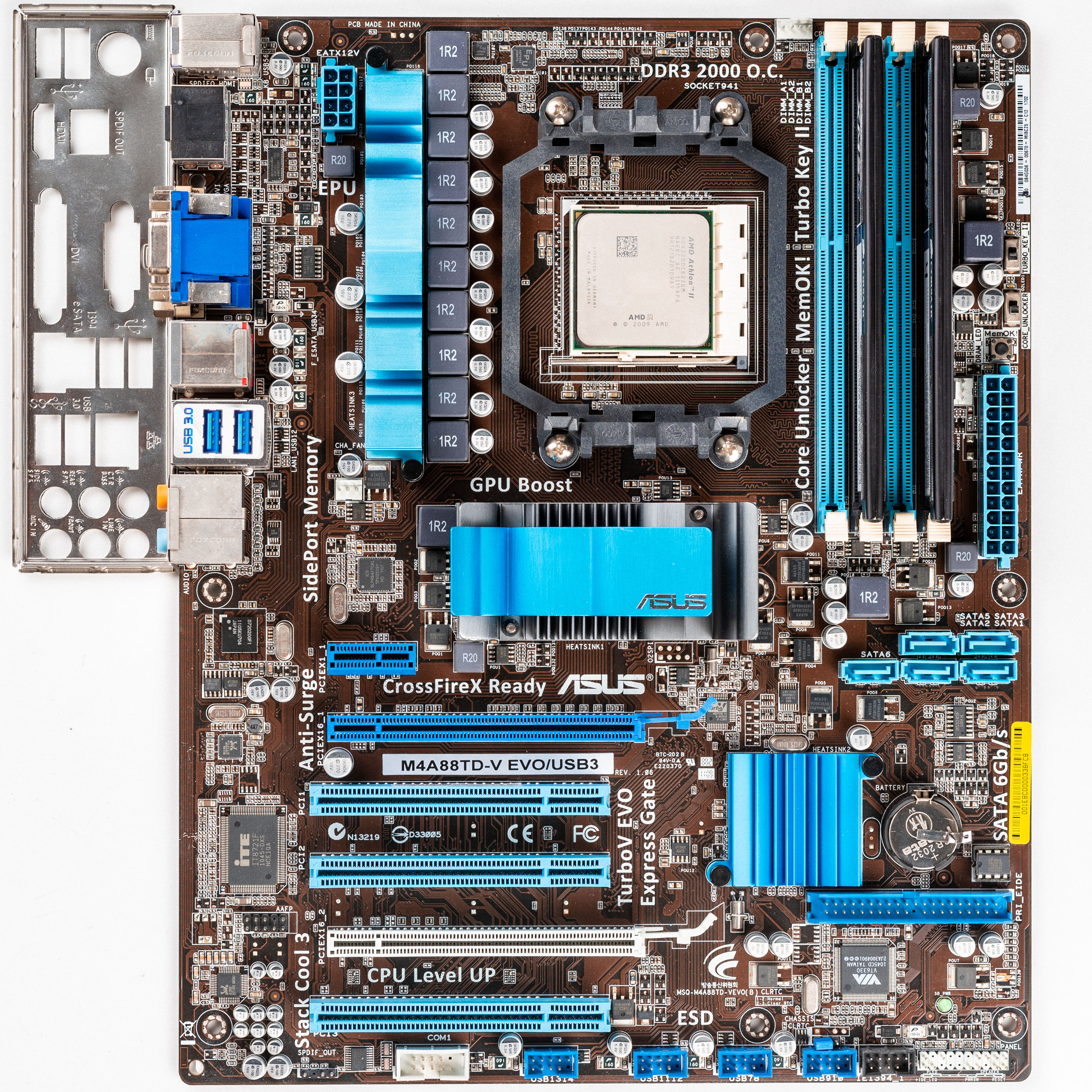

image1 Image 1 of 4 (ASUS)

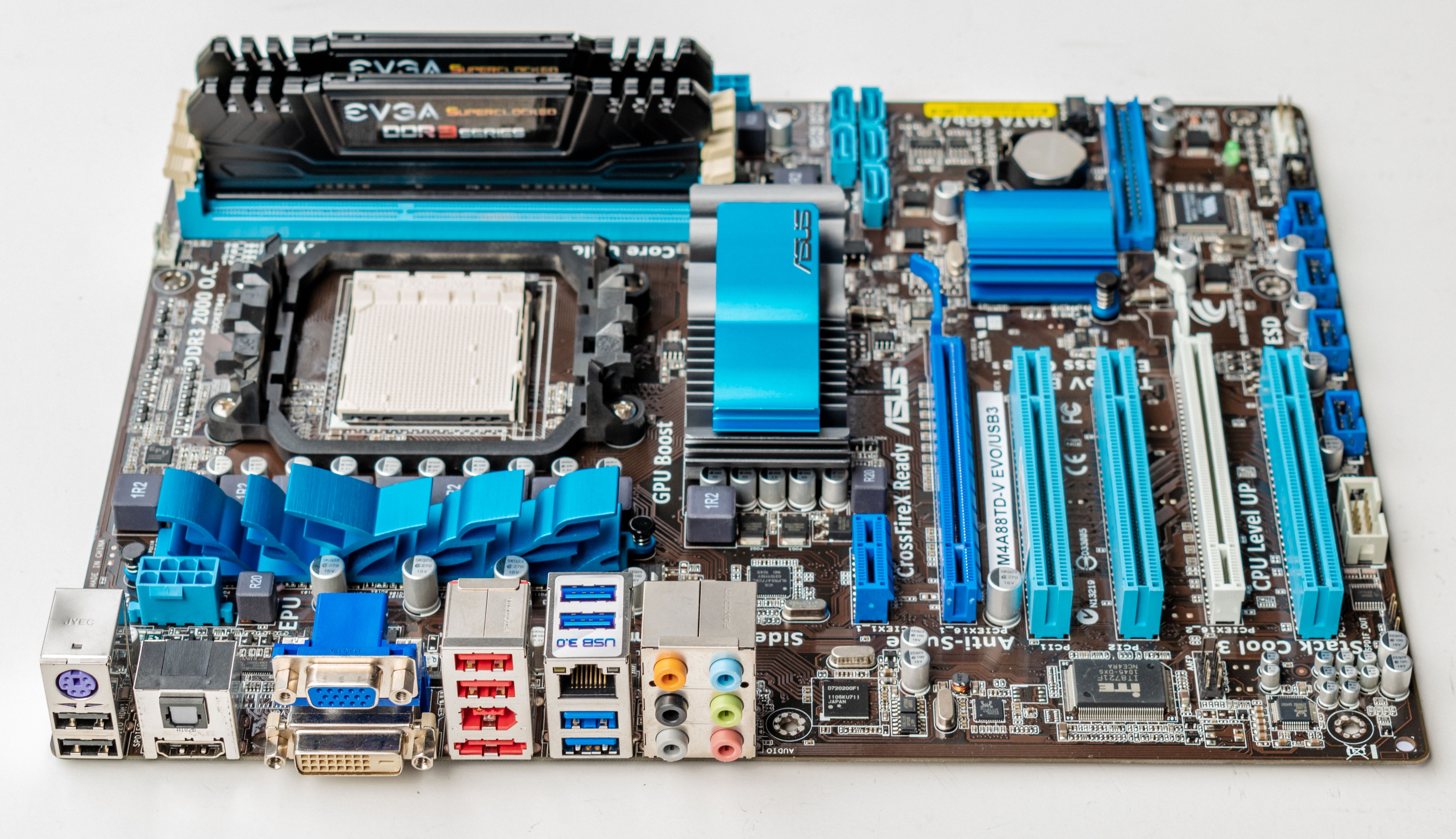

image2 Image 2 of 4 (Motherboard Continuum)

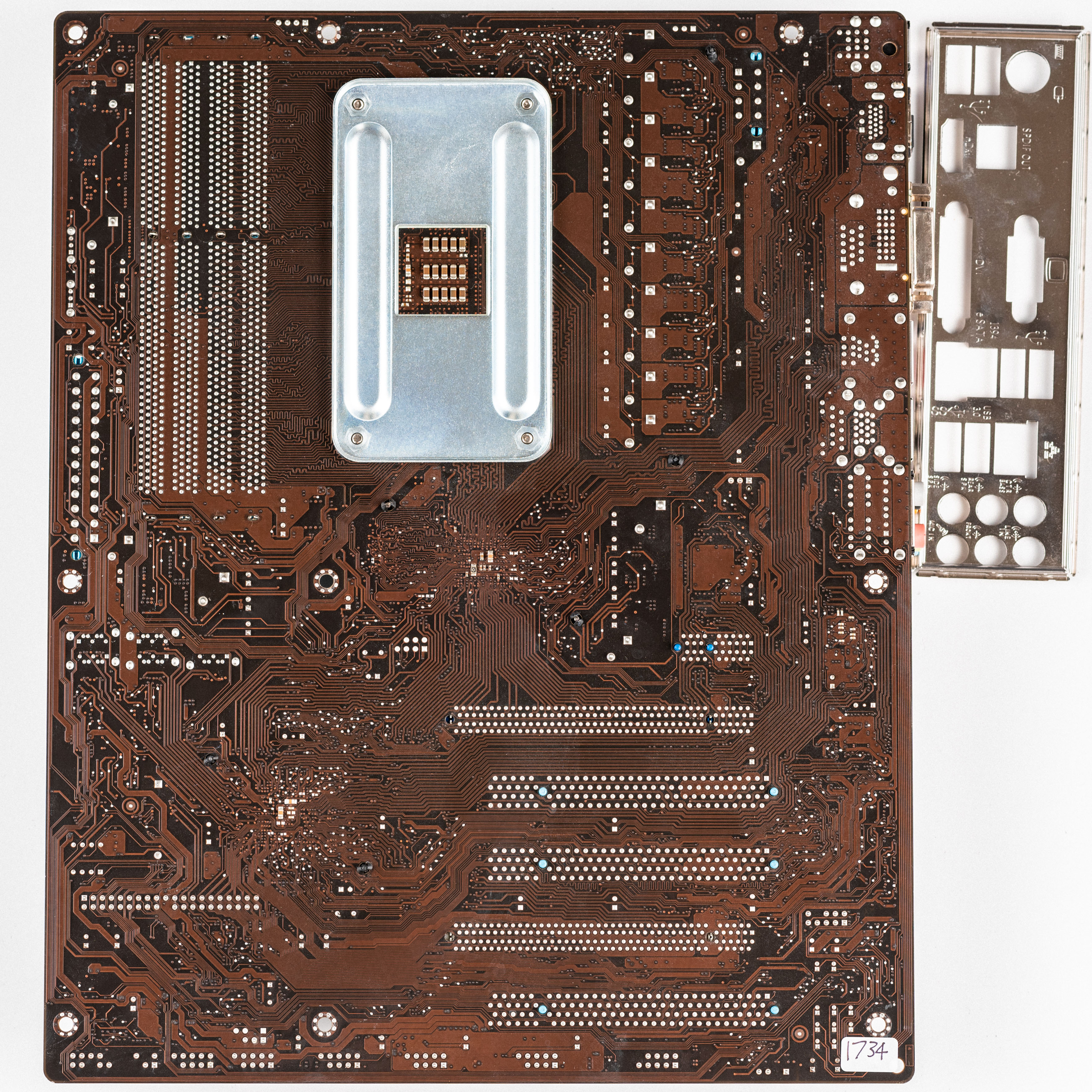

image3 Image 3 of 4 (Motherboard Continuum)

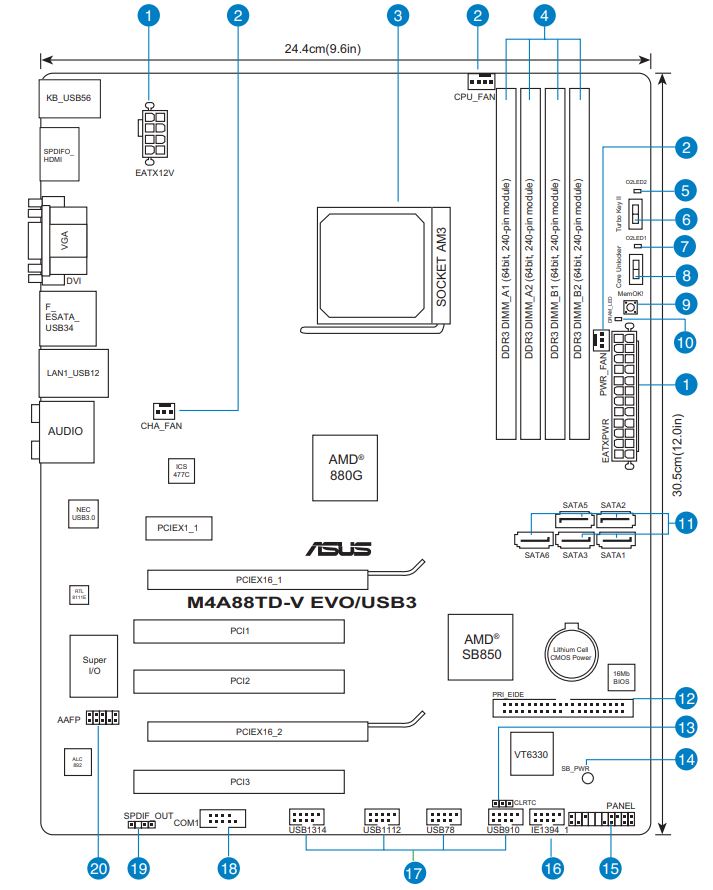

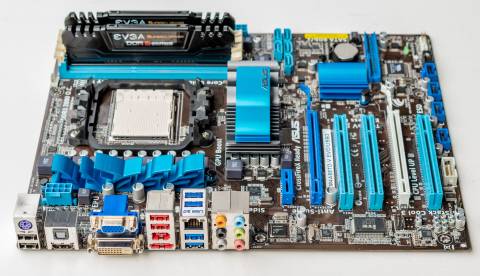

image4 Image 4 of 4 (Motherboard Continuum)
