ASUS M4A78 PLUS
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 223mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA II
1x
Serial
1x
Toslink
15x
USB 2.0
1x
eSATA II
cardExpansion slots
3x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
notes Notes

DDR2 1066 is supported by AM2+/AM3 cpus only

Last updated 2023-09-18T11:15:29Z
Board info score is 9.4/10
bios 13 BIOS files available

vendor AMI - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-2301-000001-00101111-082510-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-2101-000001-00101111-062810-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-2004-000001-00101111-040210-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-2002-000001-00101111-031810-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-1214-000001-00101111-091409-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-1209-000001-00101111-090409-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-1206-000001-00101111-072909-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-1201-000001-00101111-062809-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-1101-000001-00101111-060609-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-1003-000001-00101111-051909-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-0602-000001-00101111-040909-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-0501-000001-00101111-032609-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
POST string
64-0405-000001-00101111-031109-RX780_SB7-A1256001
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

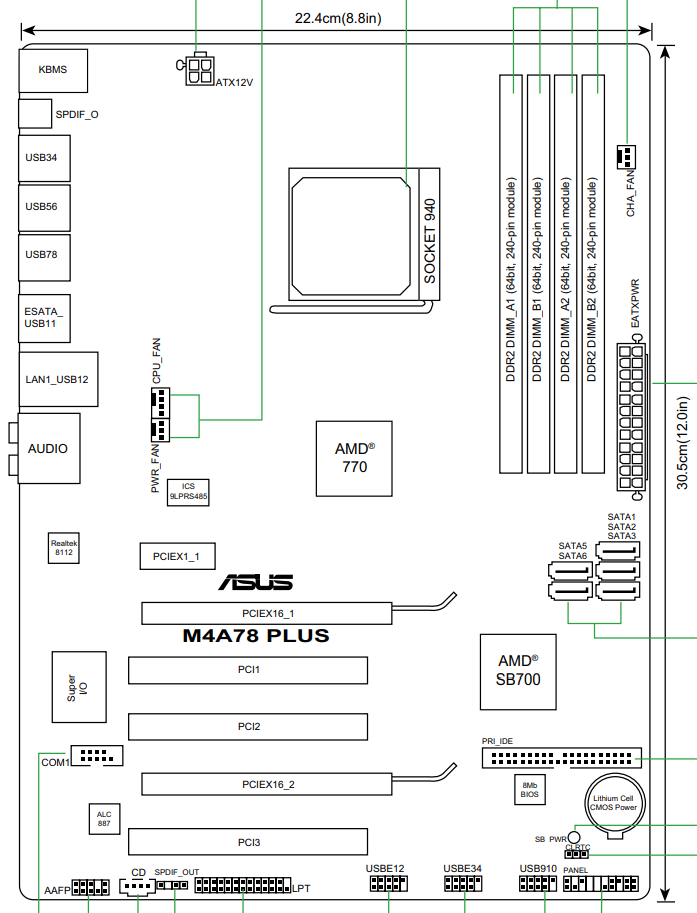

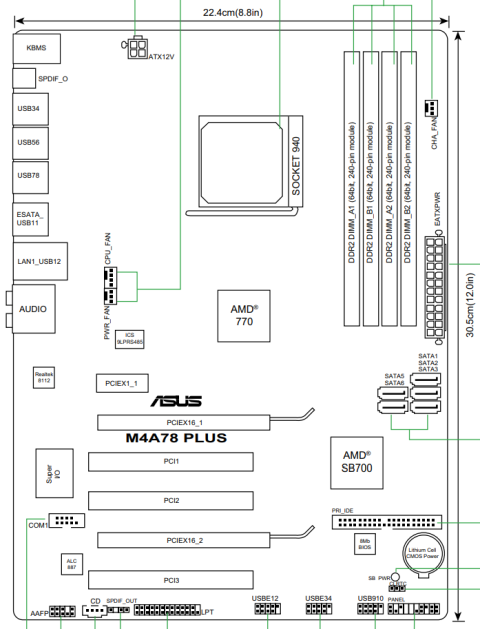

image1 Image 1 of 4 (ASUS)

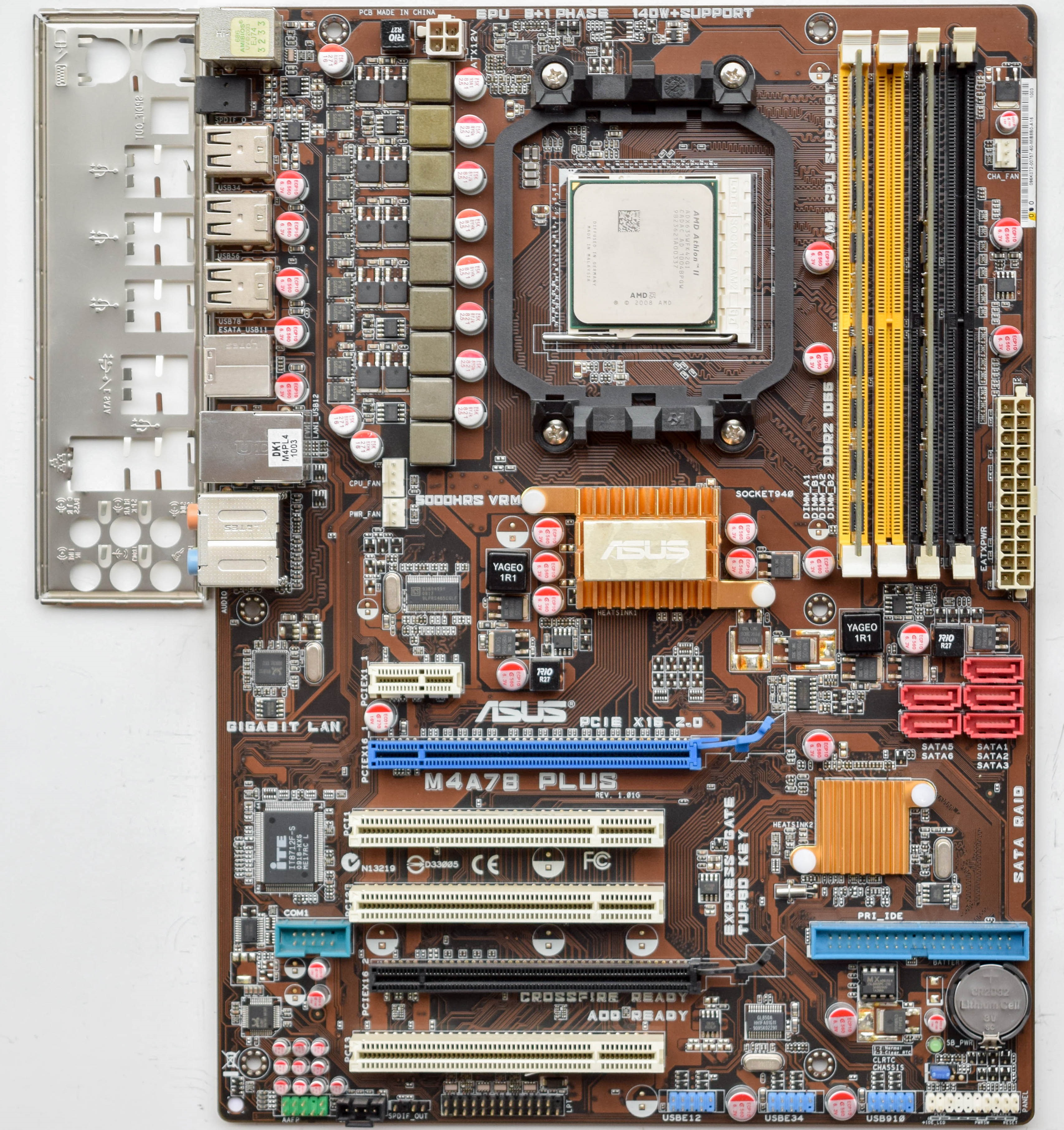

image2 Image 2 of 4 (Motherboard Continuum)

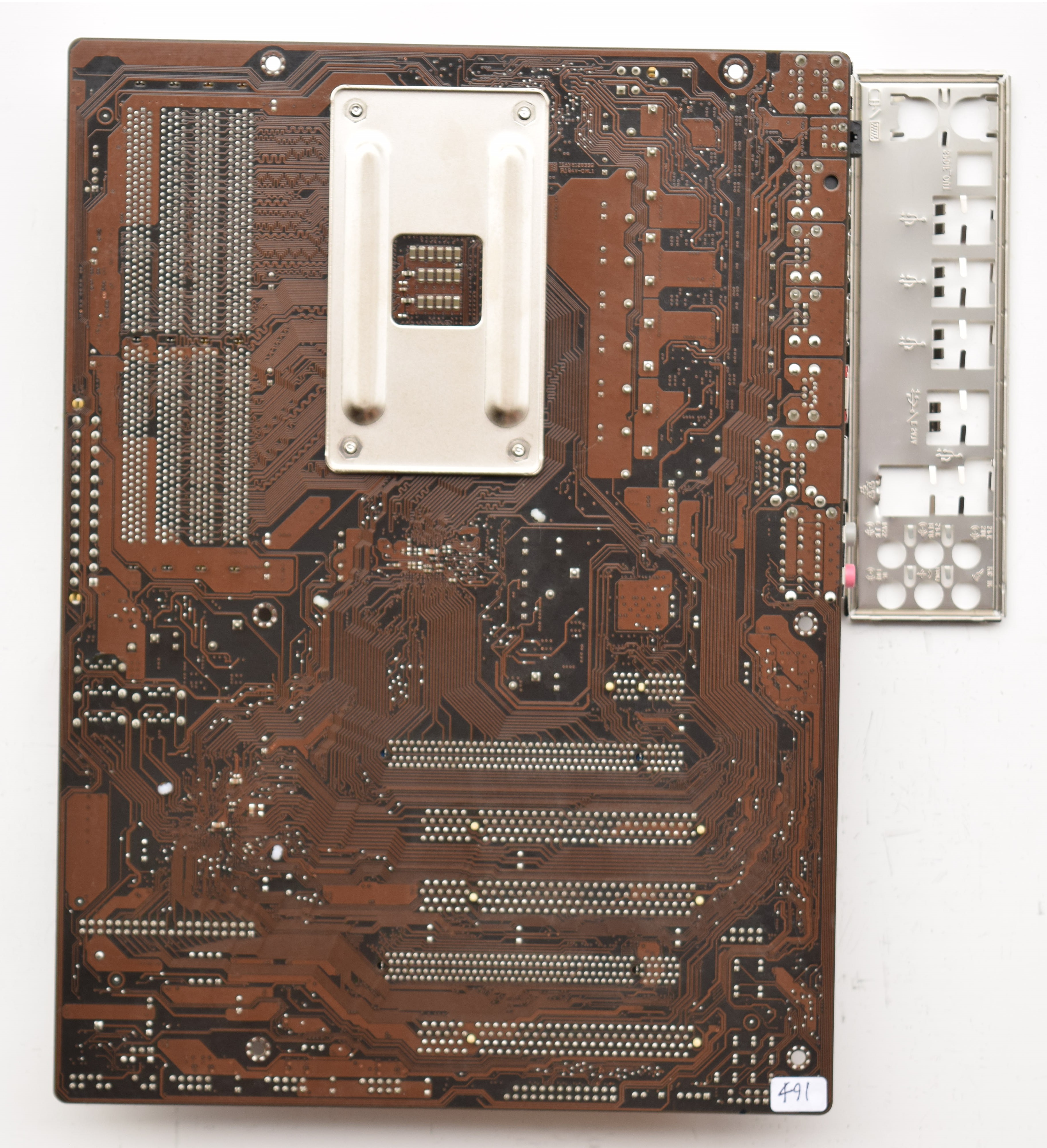

image3 Image 3 of 4 (Motherboard Continuum)

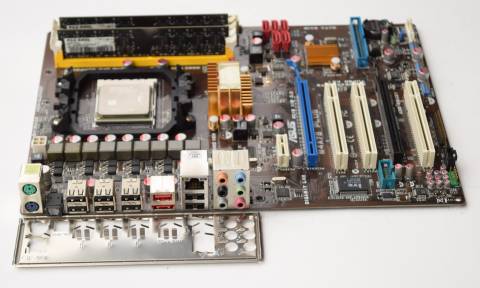

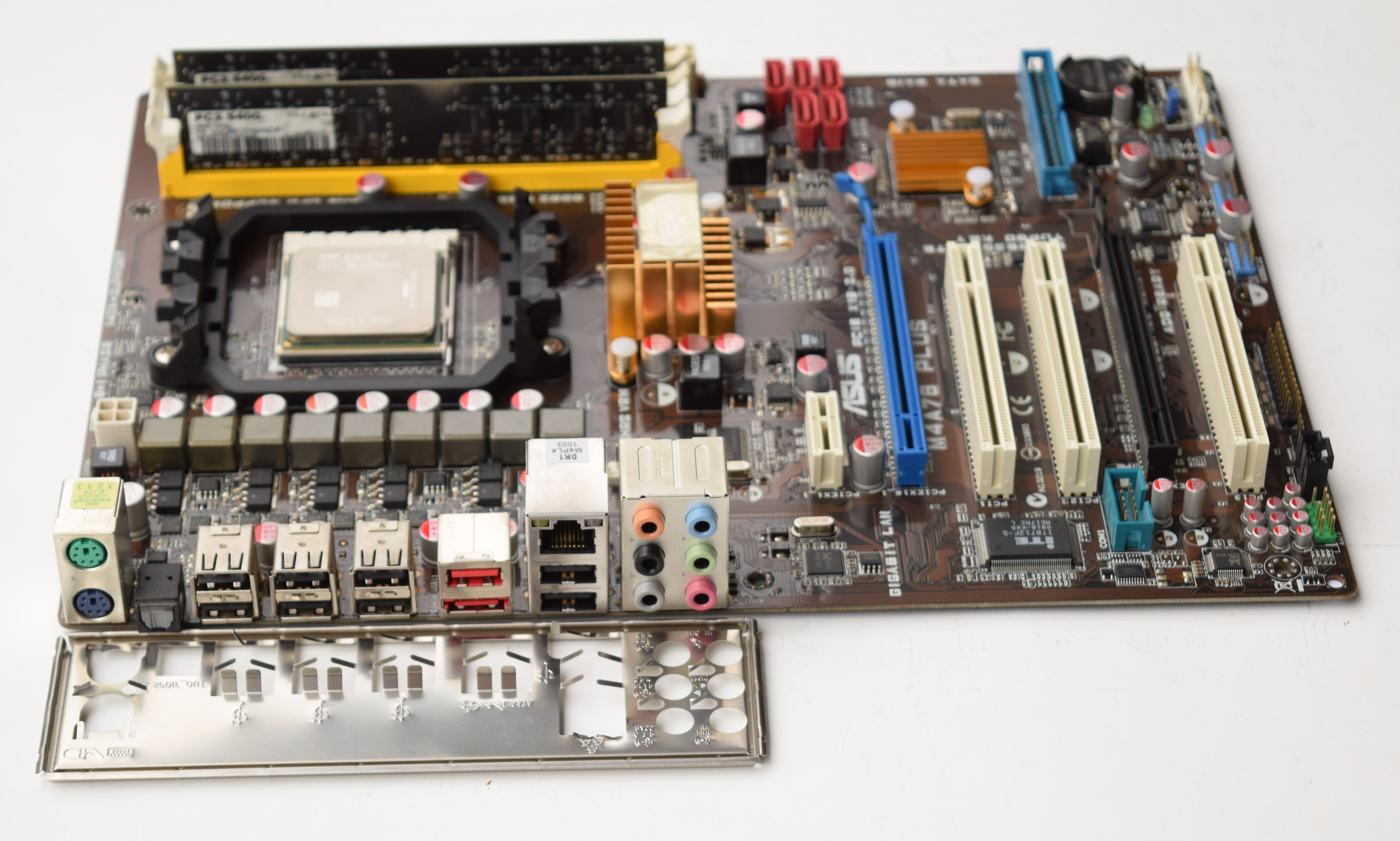

image4 Image 4 of 4 (Motherboard Continuum)
