ASUS M3N78-VM (Rev. 1.02G)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244 mm x 244 mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
1x
eSATA
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-05-17T05:12:28Z
Board info score is 9.2/10
bios 25 BIOS files available

vendor AMI - 25 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-1801-000001-00101111-091010-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1602-000001-00101111-041310-MCP78S-A1041000
Note
Beta Version
Core version
080014
BIOS version
Logs
POST string
64-1601-000001-00101111-040610-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1502-000001-00101111-031910-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1407-000001-00101111-111209-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1406-000001-00101111-103009-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1310-000001-00101111-091409-MCP78S-A1041000
Note
512MB Frame Buffer Size Enabled (2GB RAM Min needed)
Core version
080014
BIOS version
Logs
POST string
64-1309-000001-00101111-091109-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1308-000001-00101111-090809-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1305-000001-00101111-062909-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1303-000001-00101111-060809-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1301-000001-00101111-052209-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1202-000001-00101111-051909-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1009-000001-00101111-040909-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-1006-000001-00101111-032609-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0907-000001-00101111-011309-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0905-000001-00101111-120808-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0903-000001-00101111-112608-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0804-000001-00101111-101508-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0702-000001-00101111-091608-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0604-000001-00101111-090808-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0519-000001-00101111-082808-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0514-000001-00101111-080508-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0507-000001-00101111-070208-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
POST string
64-0505-000001-00101111-062408-MCP78S-A1041000
Note
Core version
080014
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs
Chip
Release date
File
Logs

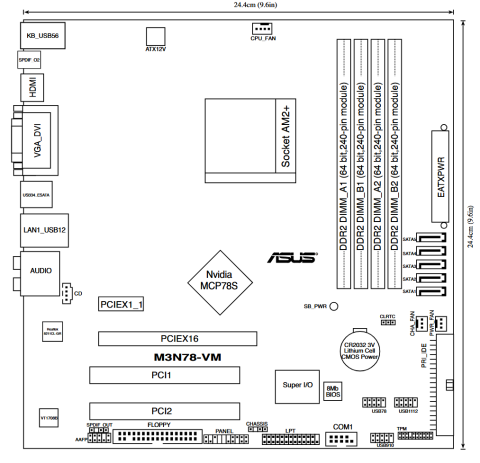

image1 Image 1 of 4 (ASUS)

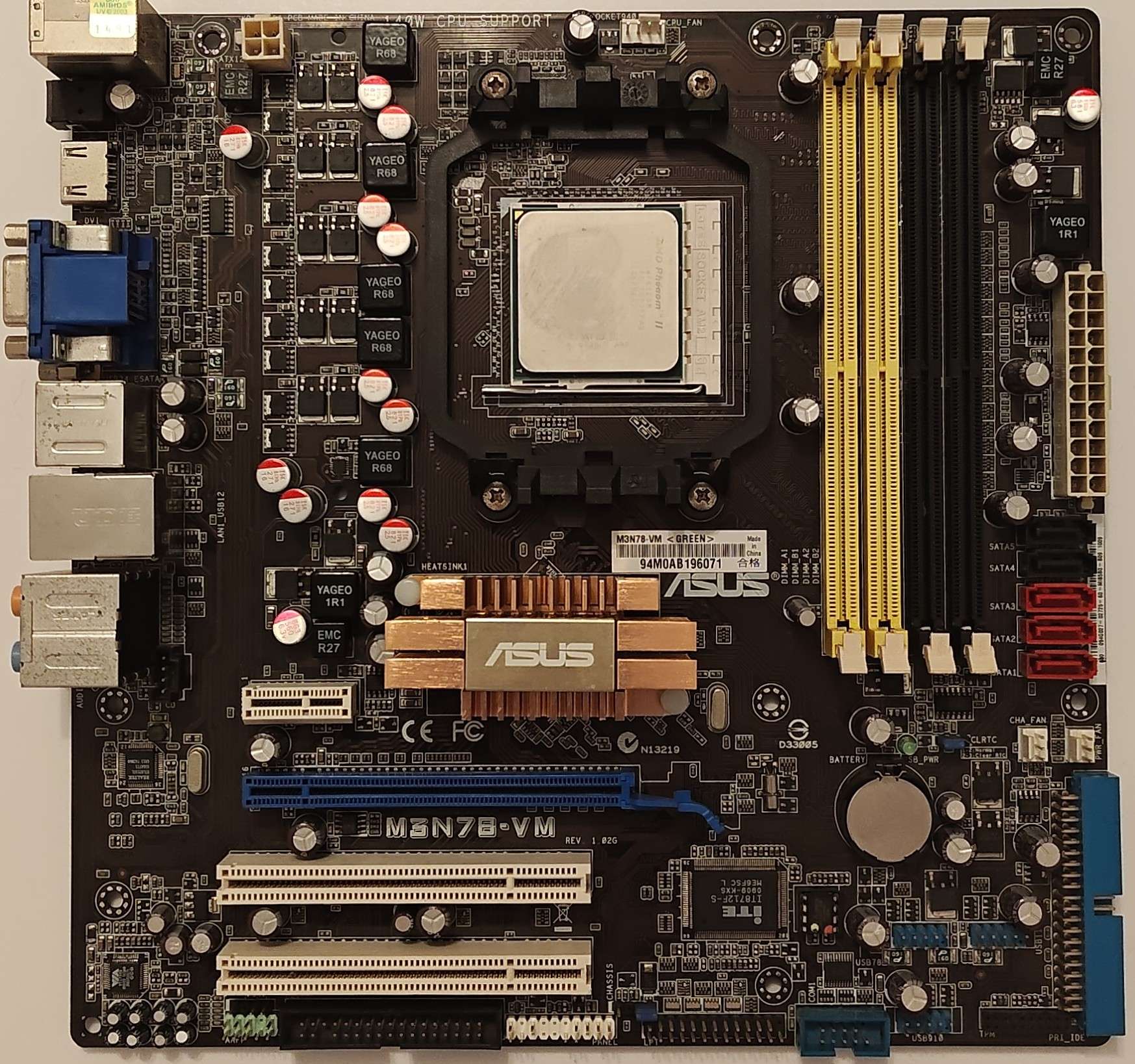

image2 Image 2 of 4 (Ashley98)

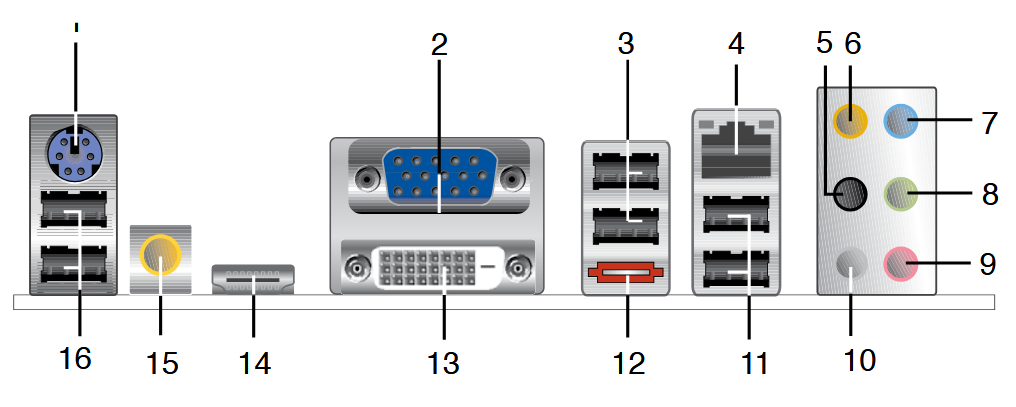

image3 Image 3 of 4 (Ashley98)
image4 Image 4 of 4 (ASUS)
