ASUS M3N-HD/HDMI
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Max VRAM size512MB
Cache
None/Integrated in the CPU
Max RAM size
8GB(DDR2-1066)
RAM types DDR2 UDIMMDDR2 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
2x
PCIe x1
2x
PCIe x16
Notes
- Supports Hybrid SLI with integrated graphics in Windows Vista/7. Technology also known as GeForce Boost and Nvidia HybridPower.
Last updated 2024-09-30T17:49:34Z
Board info score is 8/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> Super I/O
20 BIOS files available
Award - 20 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.1.0.21
OS support
Windows 7
Windows 8.x
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
5.8MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2018-07-26
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2006-05
File
Logs
Chip
Release date
2006-10
File
Logs
Chip
Release date
2006
File
Logs

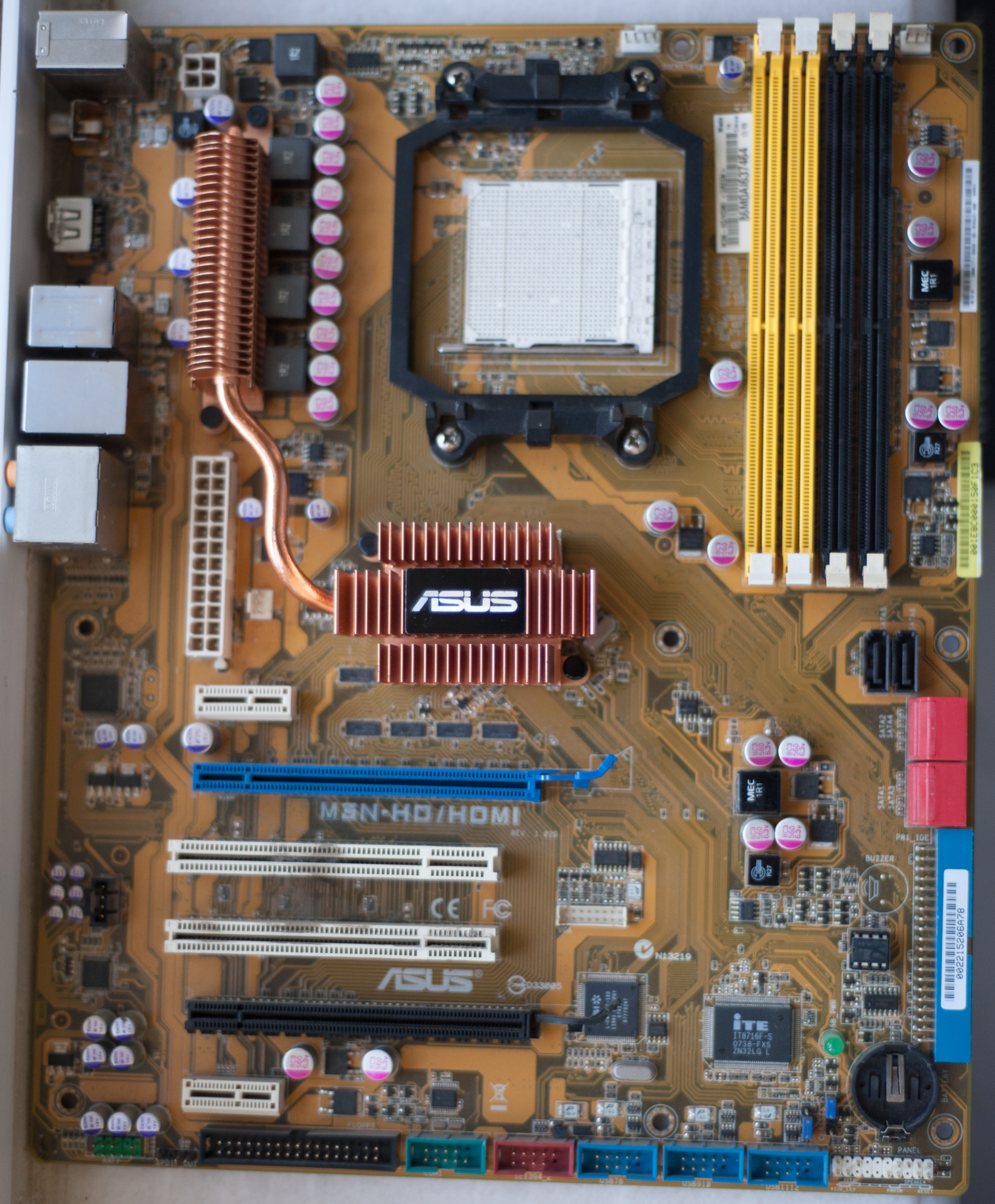

Image 1 of 3 (evasive)

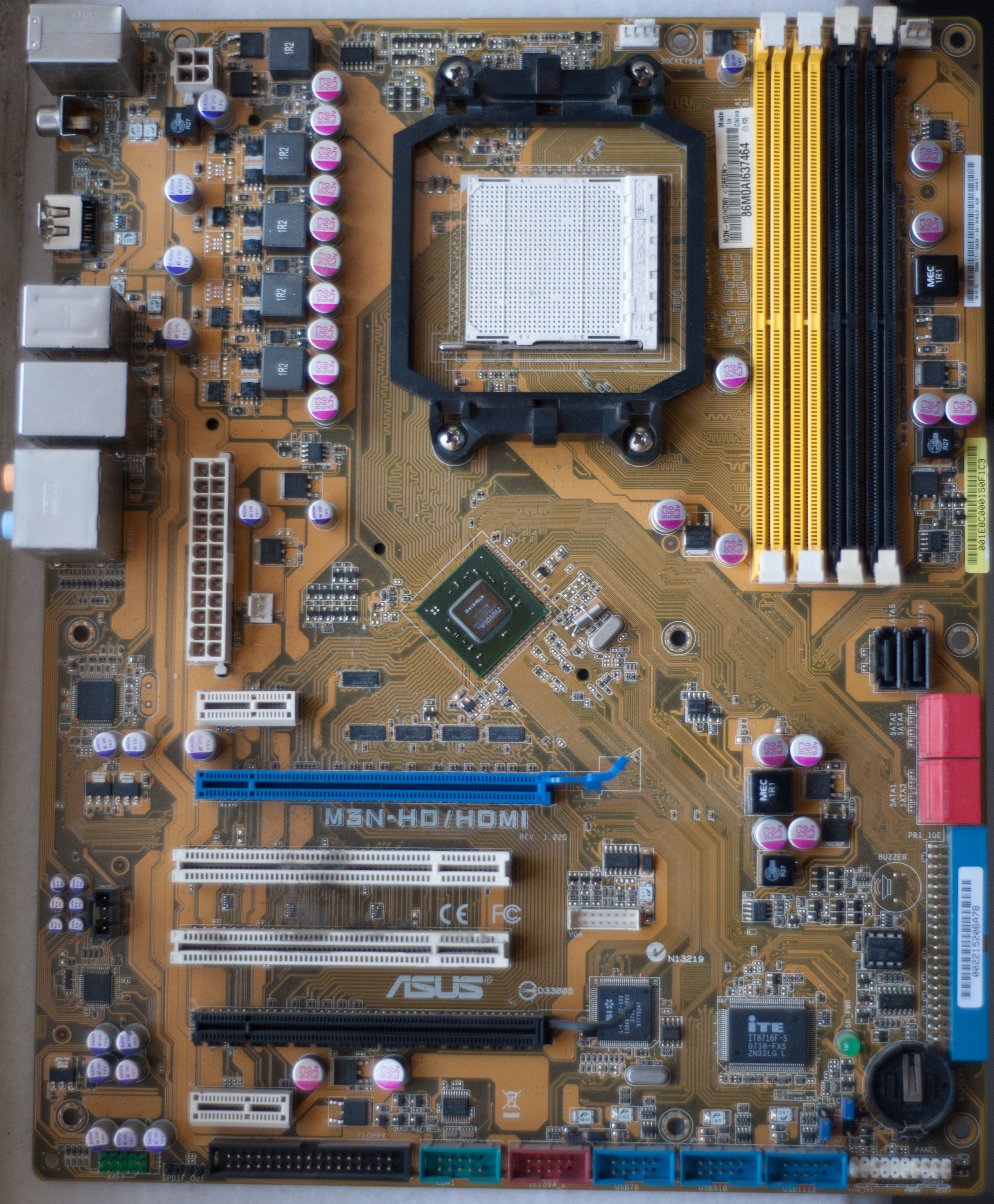

Image 2 of 3 (downloadmoreran)
Image 3 of 3 (downloadmoreran)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
