ASUS M2N-SLI Deluxe (Rev 1.02G)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16 GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • ASUS M2N-SLI Deluxe/Wireless Edition (Rev 1.02G)

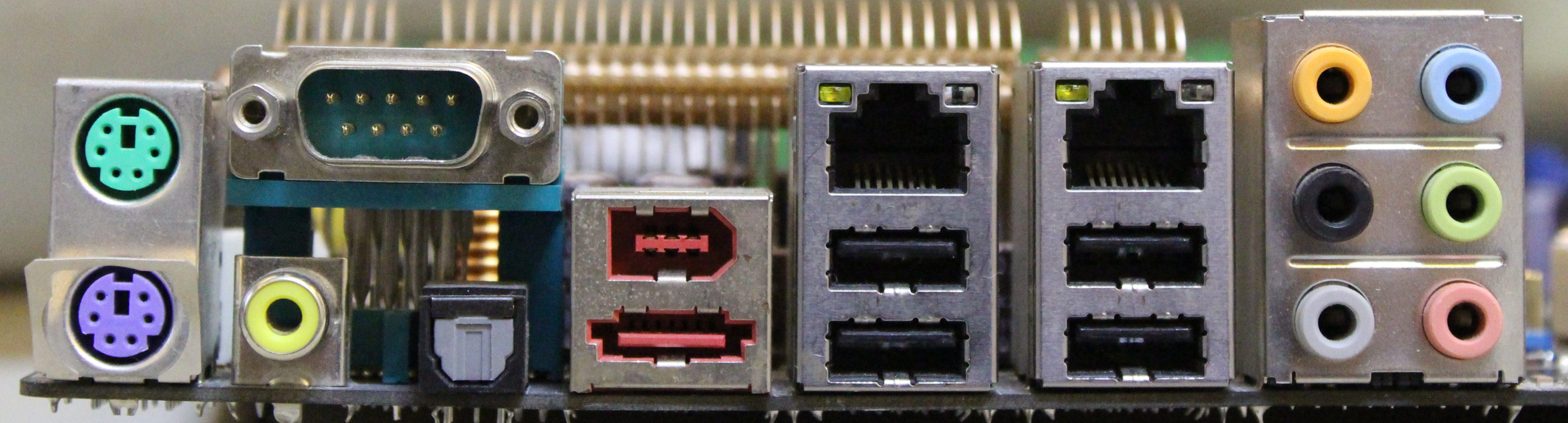

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
3x
PCIe x1
2x
PCIe x16
Last updated 2025-04-08T12:52:18Z
Board info score is 9.4/10
bios 16 BIOS files available

vendor Award - 16 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/04/2010-MCP55P-M2N-SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
09/16/2010-MCP55P-M2N-SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
10/02/2008-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/25/2008-MCP55P-M2N-SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
03/31/2008-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/07/2008-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/14/2008-MCP55P-M2N-SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
10/29/2007-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/19/2007-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/20/2007-MCP55P-M2N-SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
02/13/2007-MCP55P-M2N-SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
01/03/2007-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/22/2006-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/04/2006-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/14/2006-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/15/2006-MCP55P-M2N-SLI-00
Note
Core version
6.00PG
BIOS version
Logs
drv 7 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
6.10.02.6585
Arch
OS support
Windows 7 Windows Vista Windows XP/2k3
Size
12.2MB
Filename
Name
Version
R1.17.39
Arch
x86 , x86-64
OS support
Windows 2000 Windows Vista Windows XP/2k3
Size
3.8MB
Filename
Name
Version
9.16
Arch
x86
OS support
Windows XP/2k3
Size
32MB
Filename
Name
Version
9.14
Arch
x86-64
OS support
Windows XP/2k3
Size
30.9MB
Filename
Name
Version
6.08
Arch
x86 , x86-64
OS support
Windows 7 Windows Vista Windows XP/2k3
Size
71.7MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
37.8MB
Filename
Version
Arch
x86
OS support
Windows XP/2k3
Size
50.9MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-05
File
Logs
Chip
Release date
2011-05-09
File
Logs
Chip
Release date
2020-12-01
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-12
File
Logs

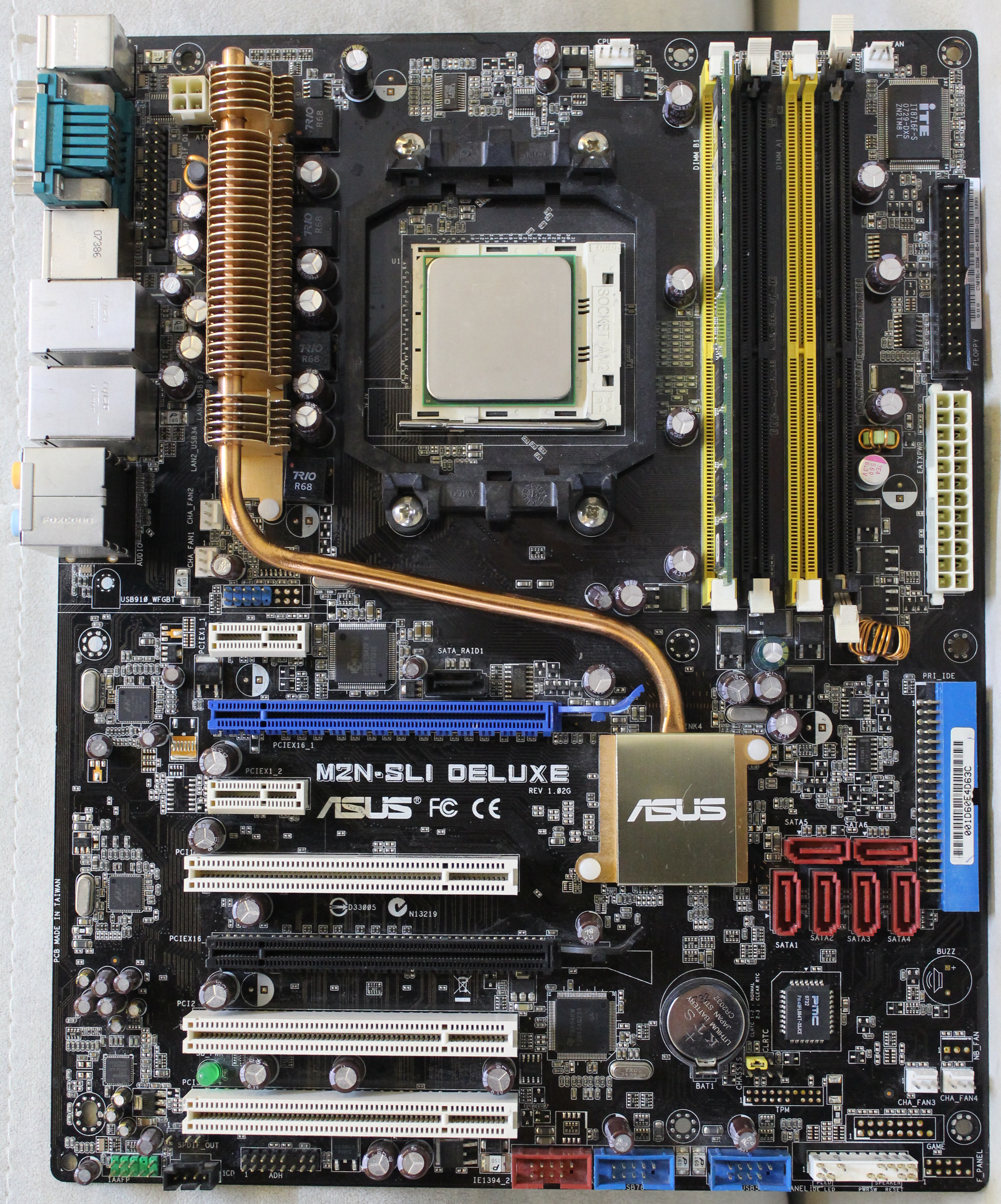

image1 Image 1 of 7 (ASUS)

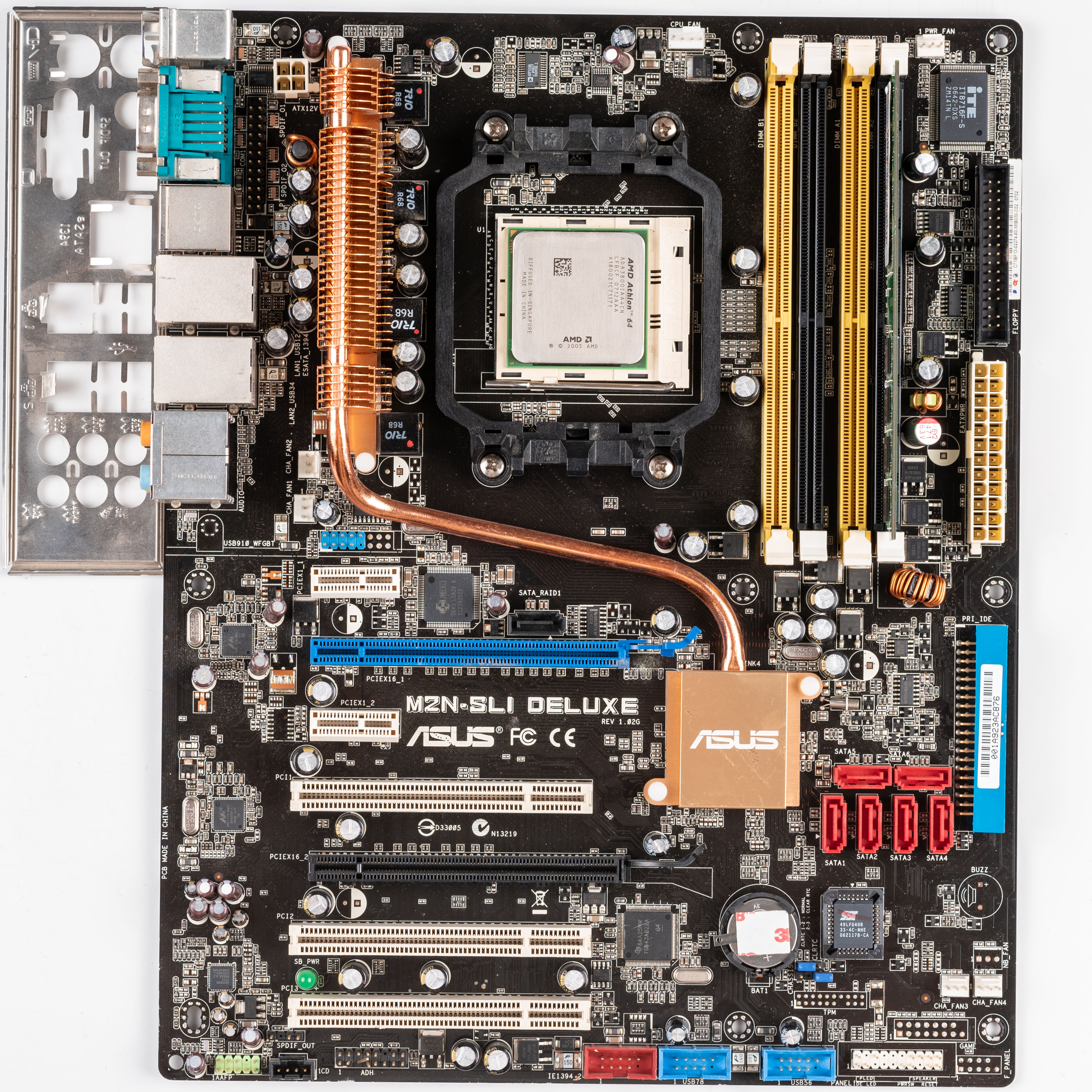

image2 Image 2 of 7 (Motherboard Continuum)
image3 Image 3 of 7 (SWP)

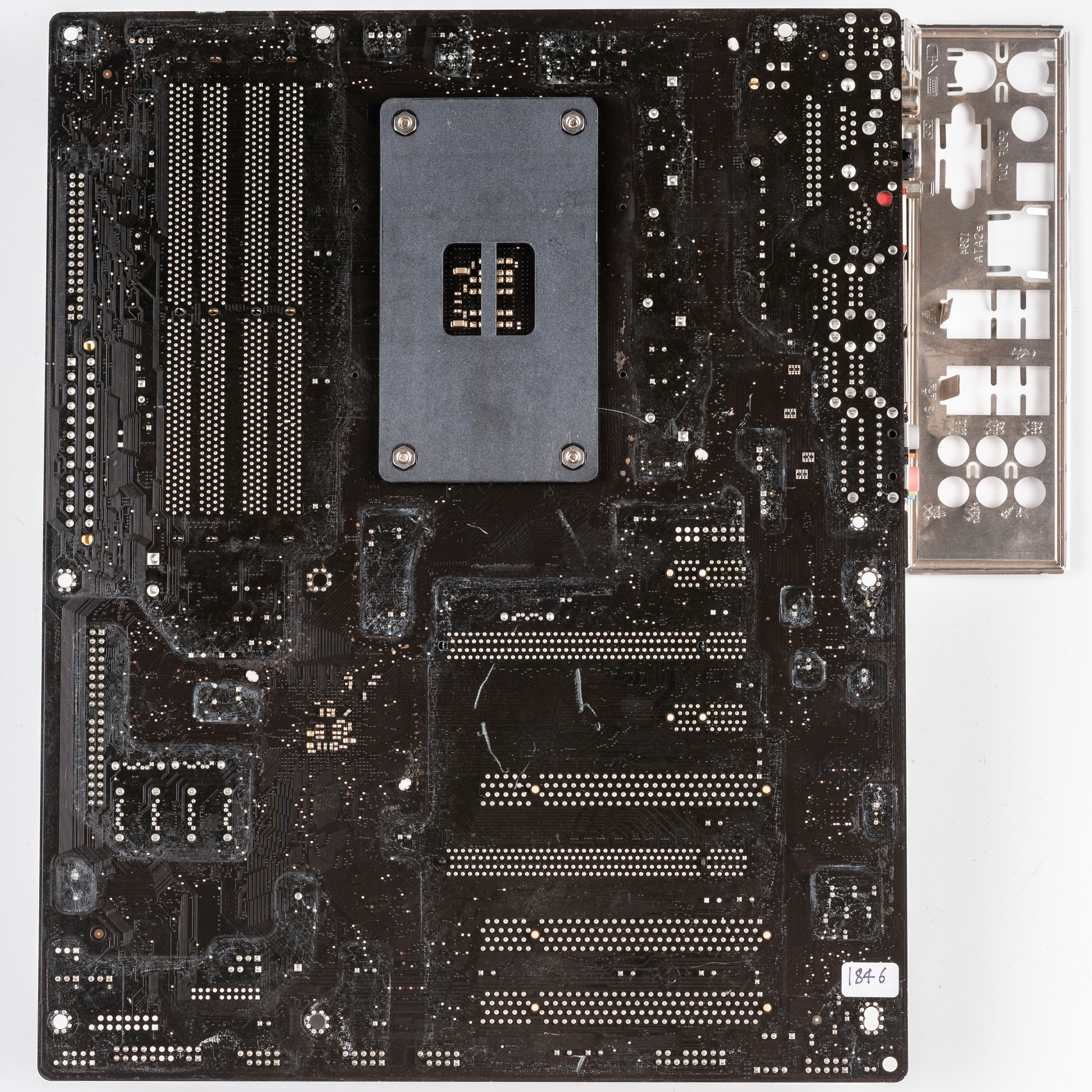

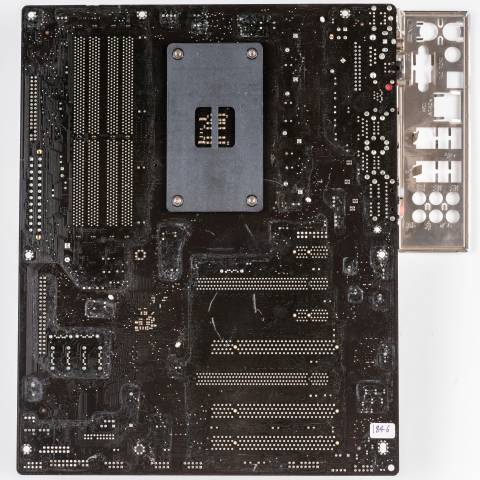

image4 Image 4 of 7 (Motherboard Continuum)
image5 Image 5 of 7 (SWP)
image6 Image 6 of 7 (Motherboard Continuum)
image7 Image 7 of 7 (SWP)
