ASUS M2N-E
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 245mm
Cache
None/Integrated in the CPU
Max RAM size
8GB(DDR2-800)
RAM types DDR2 UDIMMDDR2 UDIMM ECC
PSU connector

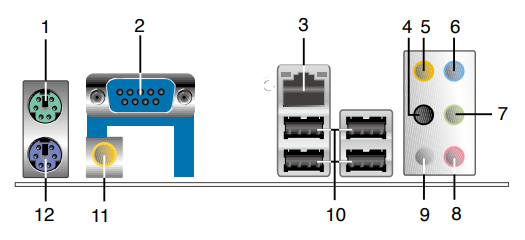

I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
Expansion slots3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x4
Last updated 2025-12-11T23:08:48Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
20 BIOS files available
Award - 20 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.10.02.6585
OS support
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
12.2MB
Filename
Name
Version
9.16
OS support
Windows XP/2k3
Arch
x86
Size
32MB
Filename
Name
Version
9.14
OS support
Windows XP/2k3
Arch
x86-64
Size
30.9MB
Filename
Name
Version
6.08
OS support
Windows 7
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
71.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-05
File
Logs
Chip
Release date
2011-05-09
File
Logs
Chip
Release date
2020-12-01
File
Logs
Chip
Release date
2006
File
Logs

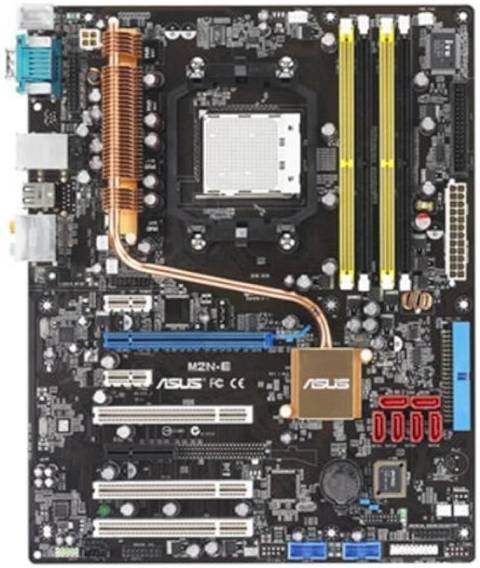

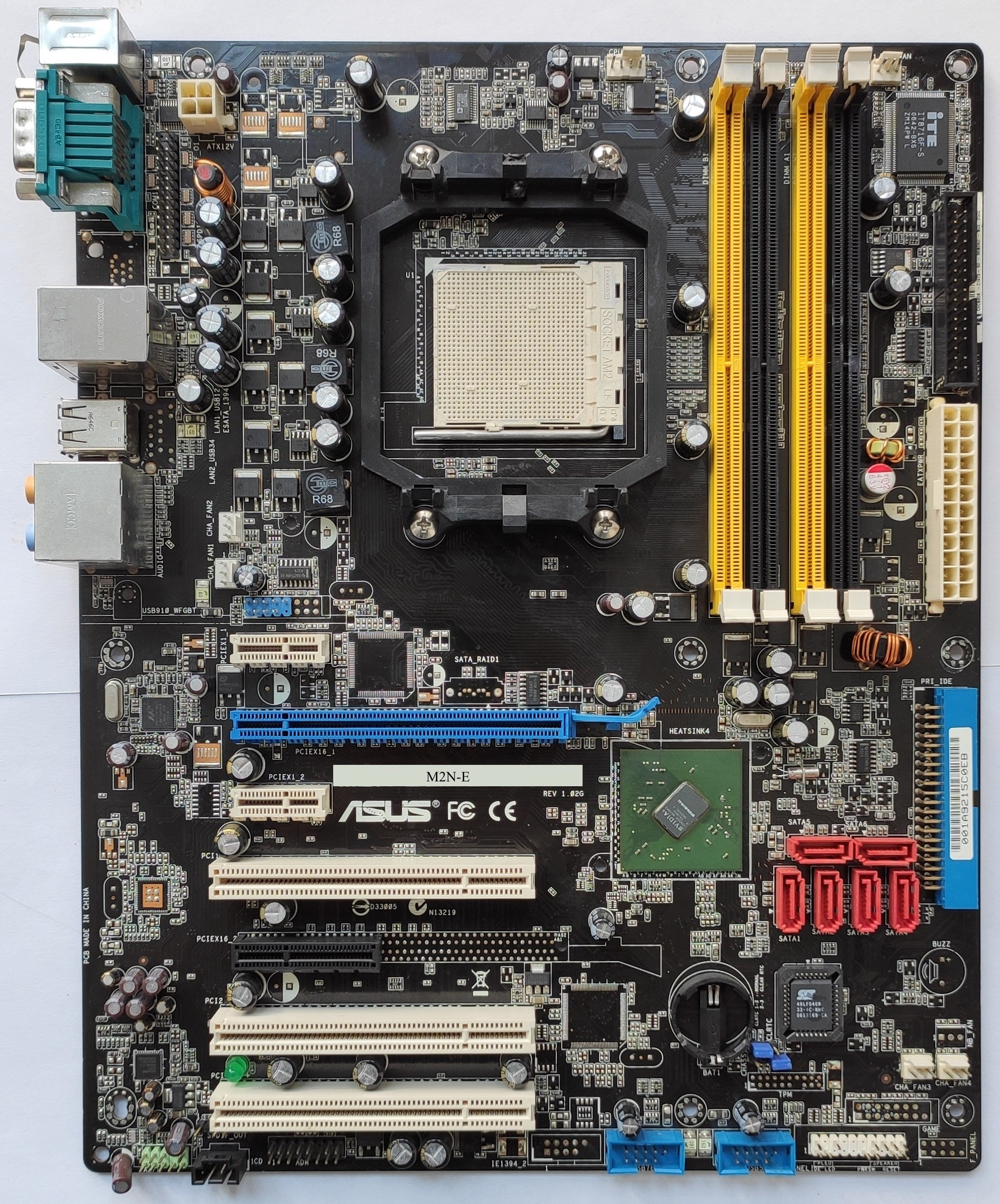

Image 1 of 6 (ASUS)
Image 2 of 6 (LINUXRULZ!)
Image 3 of 6 (VanoRu)
Image 4 of 6 (ASUS)
Image 5 of 6 (VanoRu)
Image 6 of 6 (ASUS)
