ASUS M2A-VM
Chipset
Sockets
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 230mm
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM type DDR2 UDIMM
PSU connector
Also known as
- ASUS M2A-VM HDMI

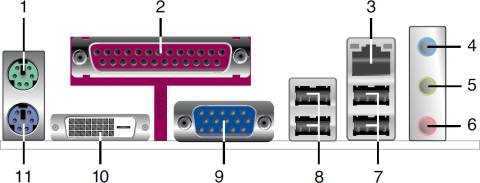

I/O ports1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Notes
Uses optional FireWire controller.

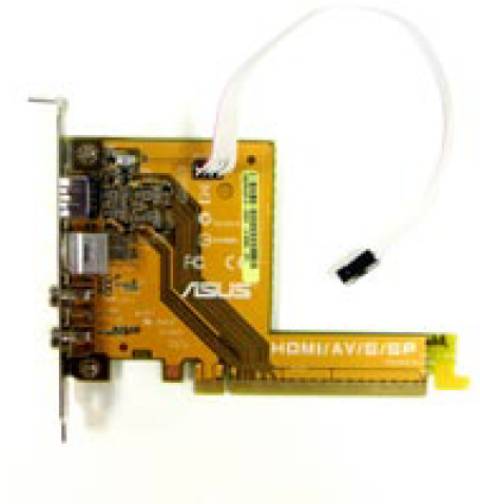

HDMI version includes a daughterboard.
Last updated 2025-12-05T13:52:10Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> Super I/O
24 BIOS files available
Award - 24 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/04/2010-690G-SB600-M2A-VM-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
12/19/2007-690G-SB600-M2A-VM-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
10/26/2007-690G-SB600-M2A-VM-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
07/19/2007-690G-SB600-M2A-VM-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
07/16/2007-690G-SB600-M2A-VM-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2008-11-28
File
Logs
Image 1 of 4 (ASUS)
Image 2 of 4 (Carlos S. M.)
Image 3 of 4
Image 4 of 4 (ASUS)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
