ASUS K8N-DL
Logs
chipChipset
cpuSocket
Socket 940 (mPGA940)
speedFSB speeds
800MHz1000MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 267mm
chipCache
None/Integrated in the CPU
ramMax RAM size
24GB
ramRAM type
DDR RDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs

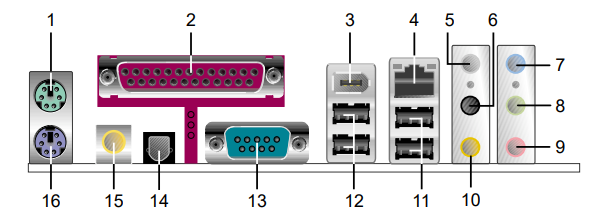

connI/O ports
2x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
4x
SATA I
4x
SATA II
1x
Serial
10x
USB 2.0
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2024-04-21T16:04:21Z
Board info score is 9.6/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/02/2007-NF-CK804-MP-K8N-DL-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
02/17/2006-NF-CK804-MP-K8N-DL-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
10/11/2005-NF-CK804-MP-K8N-DL-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
09/07/2005-NF-CK804-MP-K8N-DL-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
06/29/2005-NF-CK804-MP-K8N-DL-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 16 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 2000 Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
1.0
OS support
Windows 2000 Windows NT 4.0
Arch
x86-64
Size
819.6KB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
1.0.65.1
OS support
Windows 7
Arch
x86 , x86-64
Size
6.9MB
Filename
Name
Version
1.3.10.0
OS support
Windows 9x
Arch
x86
Size
126.6KB
Filename
Name
Version
1.2.9.0
OS support
Windows Vista Windows XP/2k3
Arch
Size
377.5KB
Filename
Name
Version
1.3.11.0
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
Size
132.2KB
Filename
Name
Version
1.5.20.3
OS support
Windows Vista Windows XP/2k3
Arch
Size
266.7KB
Filename
Name
Version
1.5.20.3
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86
Size
216.5KB
Filename
Name
Version
1.0.20.0
OS support
Linux Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
14.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7
Arch
x86-64
Size
251.5KB
Filename
Version
OS support
Windows 7
Arch
x86
Size
241KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
Arch
x86
Size
44.9KB
Filename
Version
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-08-14
File
Logs
Chip
Release date
2006
File
Logs

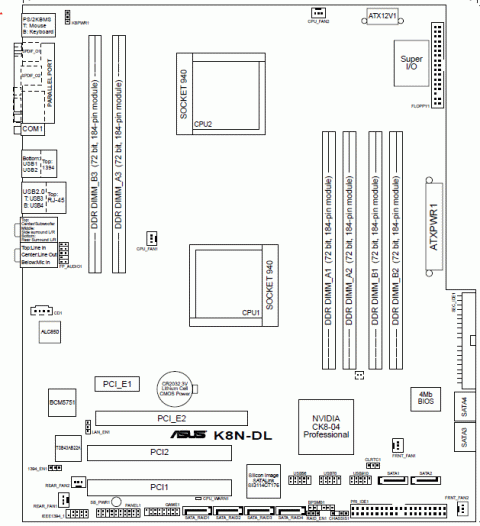

image1 Image 1 of 3 (evasive)

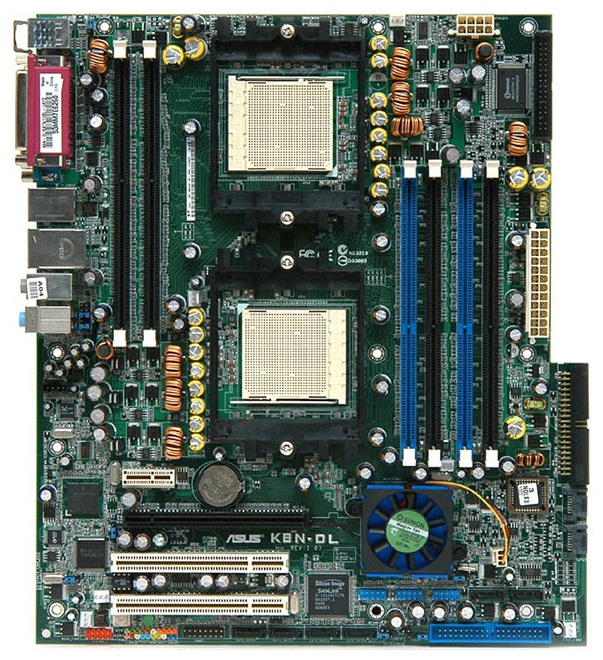

image2 Image 2 of 3

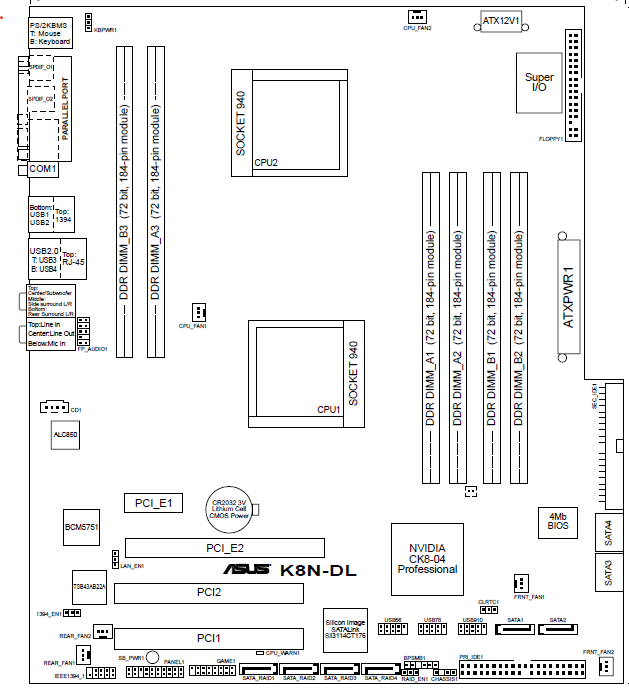

image3 Image 3 of 3
