ASUS ITX-220
Chipset
Socket
FSB speed 533MHz
Form factorMini ITX (max 170 x 170 mm)
DimensionsEmpty
Max VRAM size224MB
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR2 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
1x
Serial
6x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
Known issues
- Faulty or Leaking Electrolytic Capacitors
Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.
Notes
Soldered Celeron 220 CPU
Last updated 2025-12-07T14:22:48Z
Board info score is 8.4/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
Empty
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
14.32.4
OS support
Windows 2000
Windows XP/2k3
Arch
Size
47.9MB
Filename
Name
Version
14.25.50
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
9.2.0.1030
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs

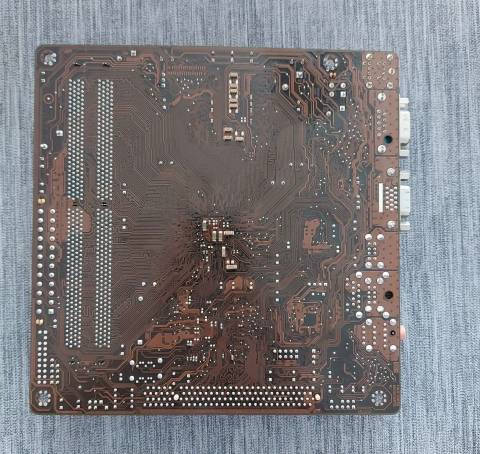

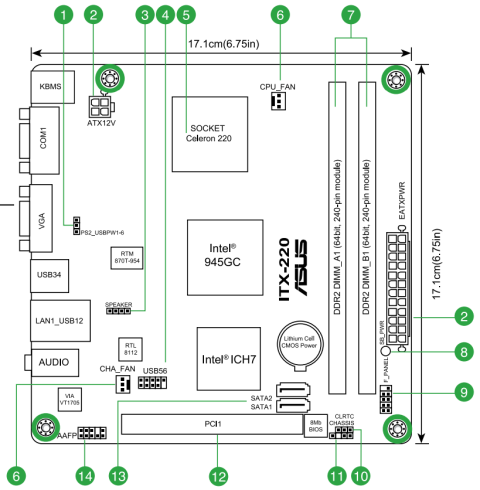

Image 1 of 3 (ASUS)
Image 2 of 3 (CircusCat)
Image 3 of 3 (CircusCat)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
