ASUS DSBF-D16/SAS
Logs
chipChipset
cpuSocket
Socket J (LGA771)
speedFSB speeds
667MHz1066MHz1333MHz
moboForm factor
SSI EEB (max 305 × 330 mm)
dimDimensions
305mm x 330mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR2 FB-DIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
2 CPUs
tag Also known as
  • ASUS DSBF-D16 (no SAS)
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
4x
RJ-45 LAN
2x
SAS-1 (3GBit)
6x
SATA II
2x
Serial
4x
USB 2.0
1x
VGA
cardExpansion slots
1x
64-bit PCI-X
3x
PCIe x8
notes Notes

Uses Intel 6321+ Intel 82563EB Dual Port GbE and two Intel 82573 GbE

Board uses SO-DIMM socket for ASMB3-SOL

PCI-X slot on DSBF-D16/SAS is for ZCR 8300XLP Only

Last updated 2025-05-09T15:22:06Z
Board info score is 8.3/10
chip Chips
-> Chipset part
Intel 5000P (MCH) Intel 6321ESB (Enterprise ESB2)
-> Video
XGI XG20 (Volari Z9s)
cpufam CPU family support
Empty
bios 3 BIOS files available

vendor Phoenix - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Asus DSBF-D16/SAS
Core version
BIOS version
Logs
POST string
Note
Asus DSBF-D16/SAS
Core version
BIOS version
Logs
POST string
Note
Asus DSBF-D16/SAS
Core version
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009
File
Logs
Chip
Release date
2006-09
File
Logs
Chip
Release date
File
Logs

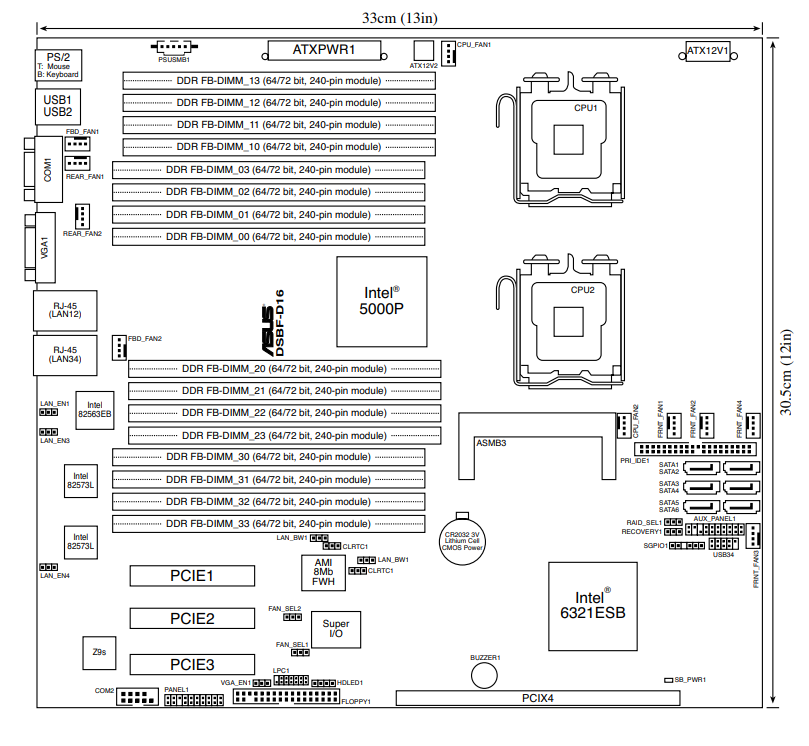

image1 Image 1 of 3 (ASUS)

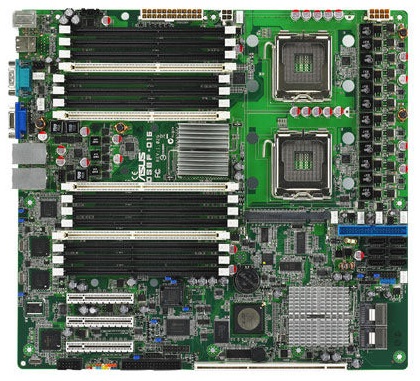

image2 Image 2 of 3 (ASUS)

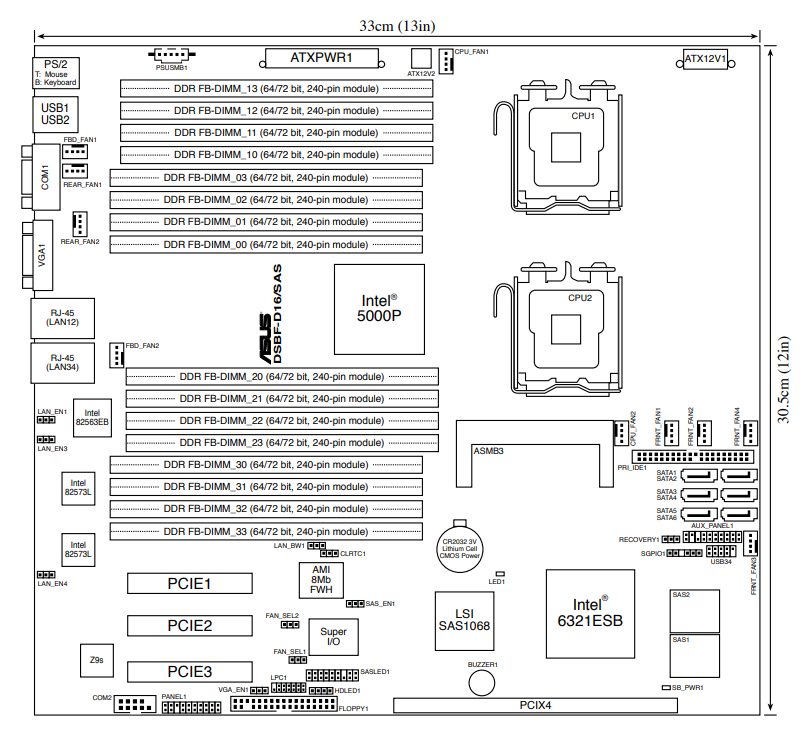

image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
