ASUS Crosshair IV Formula
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(DDR3-1866)
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

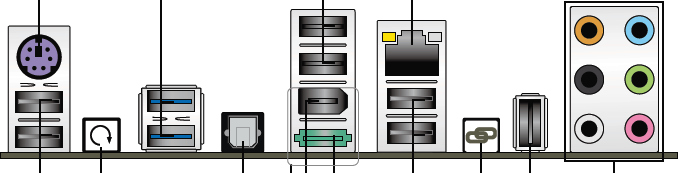

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
PS/2 keyboard
1x
RJ-45 LAN
1x
S/PDIF
1x
SATA II
6x
SATA III
1x
Toslink
12x
USB 2.0
2x
USB 3.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
2x
PCIe x16
1x
PCIe x16 @ x4
1x
PCIe x16 @ x8
notes Notes

Beta support for AMD AM3+ cpus

Last updated 2023-11-17T13:34:56Z
Board info score is 9/10
bios 15 BIOS files available

vendor AMI - 15 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-3029-000001-00101111-100912-AMD 890-A1595000
Note
Beta Version
Core version
080015
BIOS version
Logs
POST string
65-3027-000001-00101111-102811-AMD 890-A1595000
Note
Beta Version
Core version
080015
BIOS version
Logs
POST string
65-3017-000001-00101111-042611-AMD 890-A1595000
Note
Beta Version
Core version
080015
BIOS version
Logs
POST string
65-2101-000001-00101111-091412-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-2002-000001-00101111-040111-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-1902-000001-00101111-021711-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-1304-000001-00101111-120910-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-1102-000001-00101111-082410-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-1005-000001-00101111-080610-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-0905-000001-00101111-060310-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-0801-000001-00101111-050310-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-0707-000001-00101111-042610-AMD 890-A1595000
Note
Beta Version
Core version
080015
BIOS version
Logs
POST string
65-0701-000001-00101111-041910-AMD 890-A1595000
Note
Beta Version
Core version
080015
BIOS version
Logs
POST string
65-0602-000001-00101111-040910-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
POST string
65-0505-000001-00101111-040210-AMD 890-A1595000
Note
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2008-11-14
File
Logs

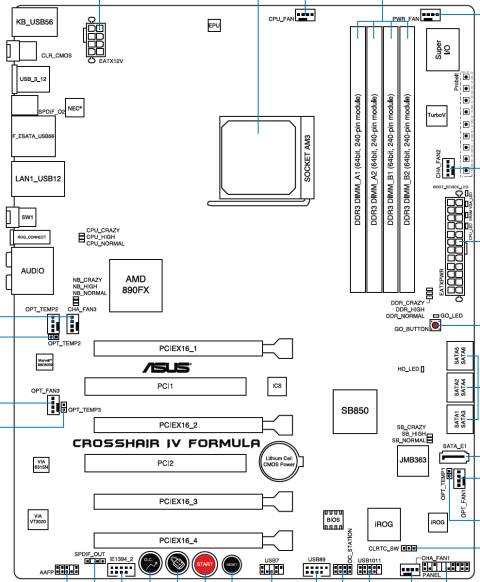

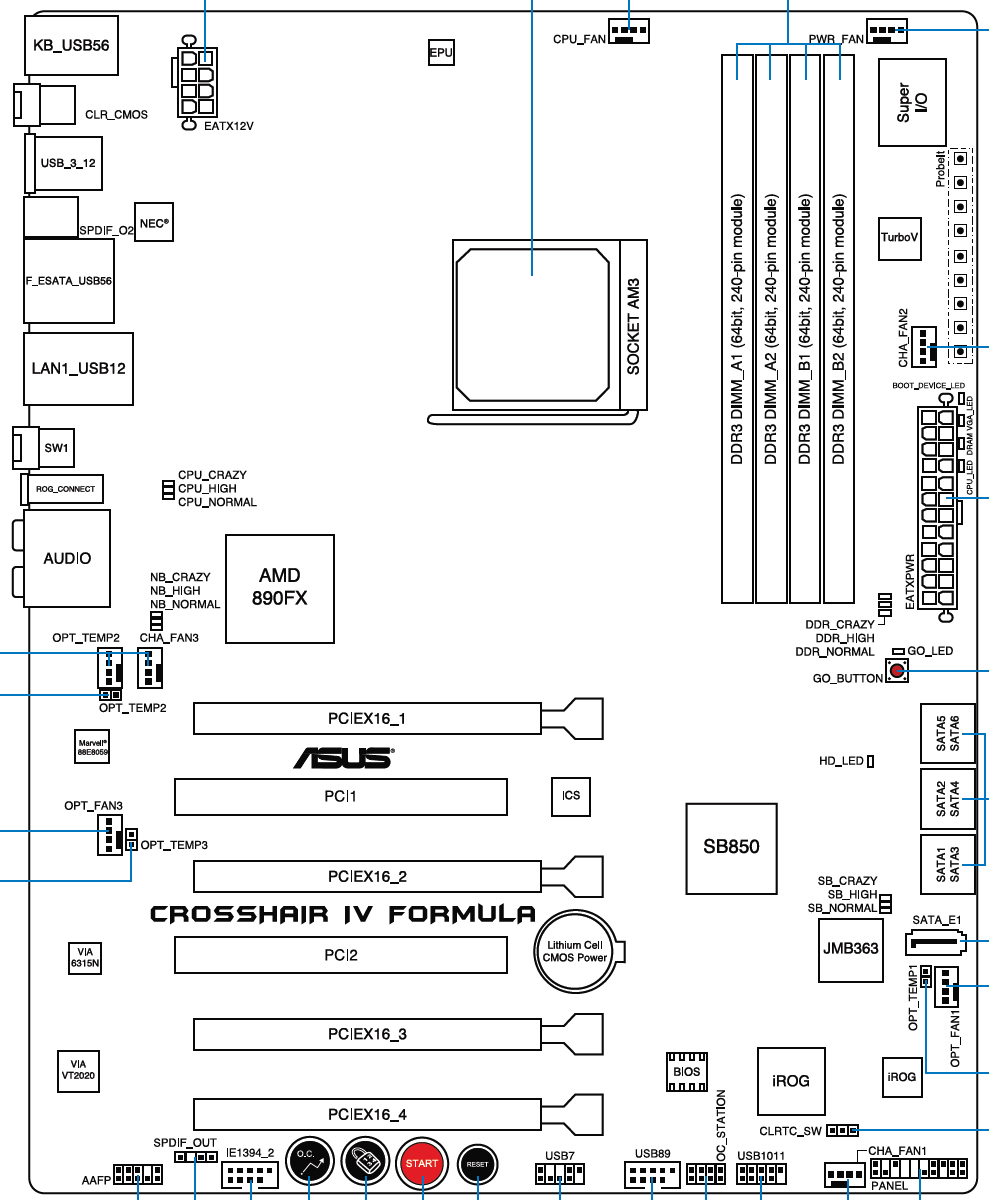

image1 Image 1 of 3 (ASUS)

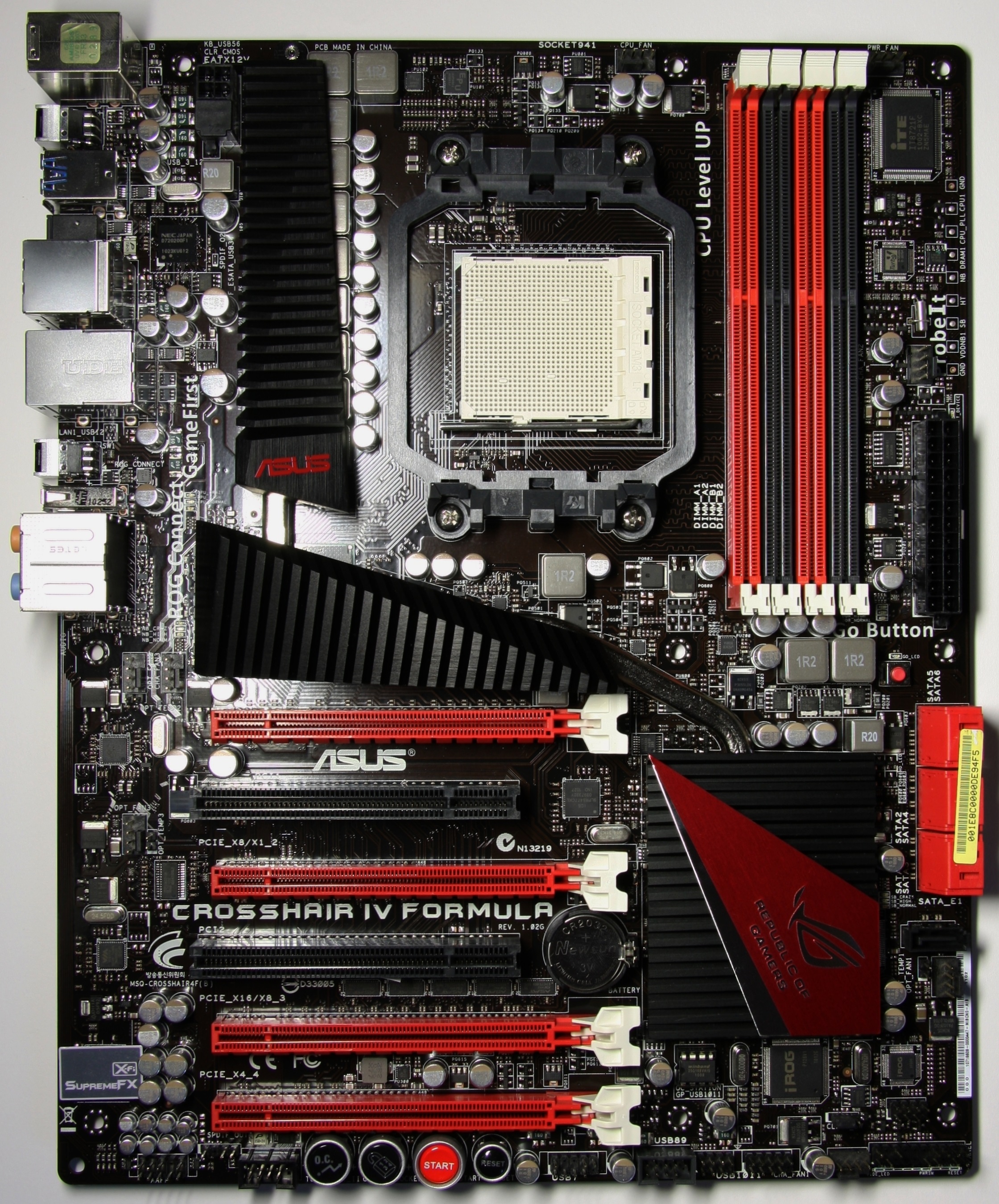

image2 Image 2 of 3 (D-Kuru)
image3 Image 3 of 3 (ASUS)
