ASUS AT3IONT-I
Logs
chipChipset
cpuSocket
BGA437
speedFSB speed
533MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
Empty
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
PS/2 keyboard
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
PCIe x16
notes Notes

Soldered Atom 330 CPU

Last updated 2025-10-09T00:48:09Z
Board info score is 8.2/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2010-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs

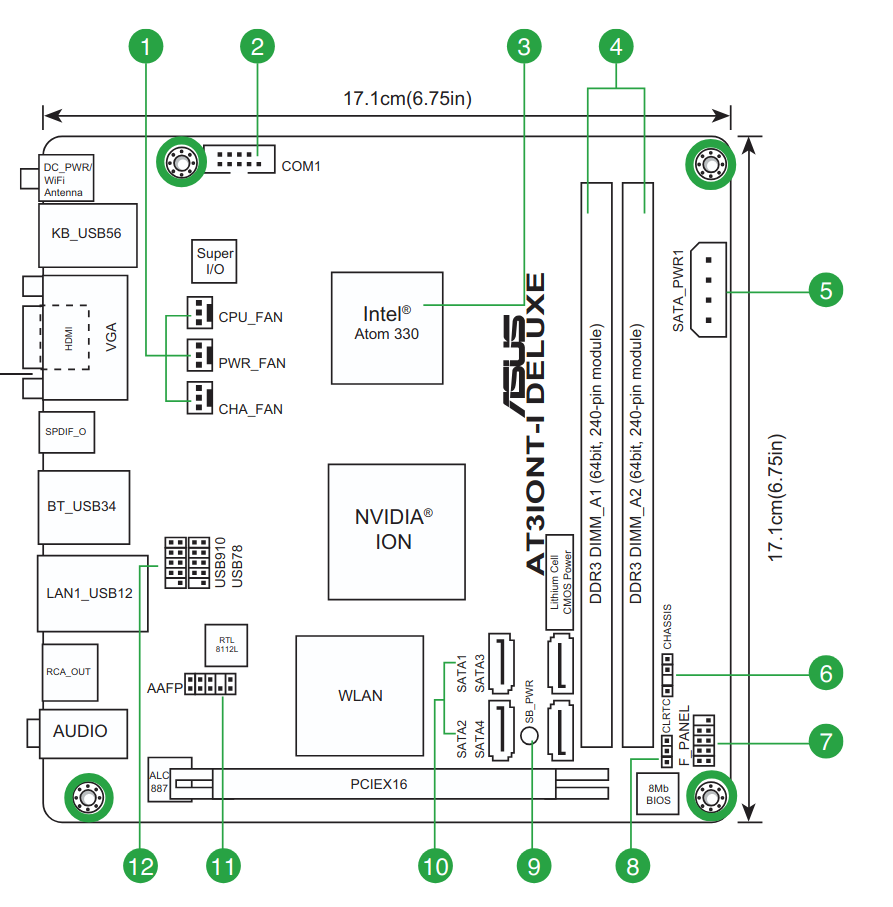

image1 Image 1 of 4 (ASUS)

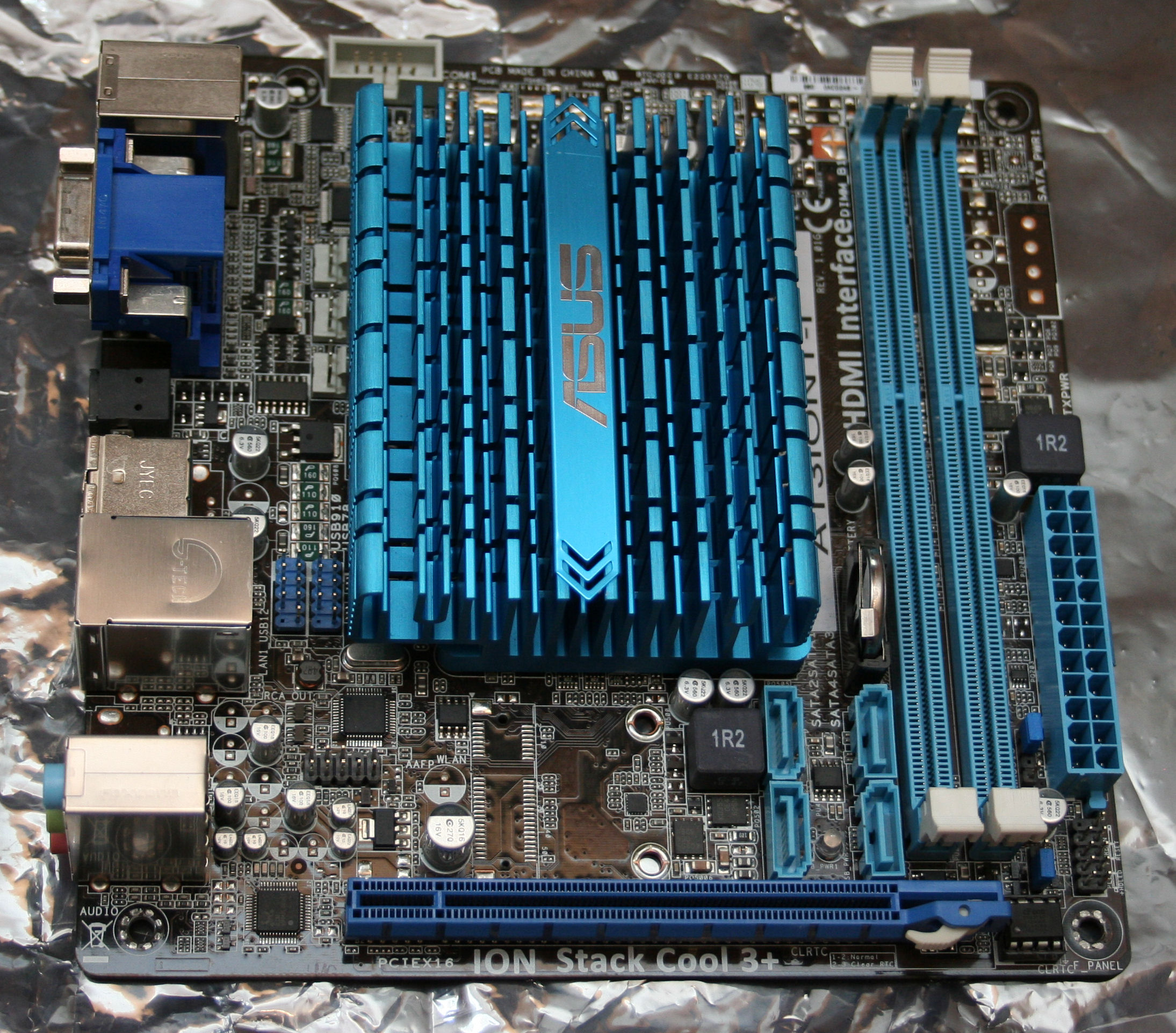

image2 Image 2 of 4 (Speedycat)

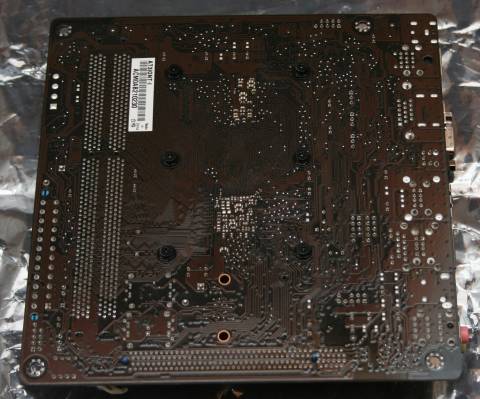

image3 Image 3 of 4 (Speedycat)

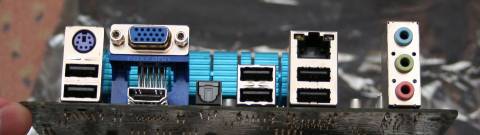

image4 Image 4 of 4 (Speedycat)
