ASUS A8V-E Deluxe
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM types DDR UDIMMDDR UDIMM ECC
PSU connector
Also known as
- ASUS A8V-E Deluxe NW (No WiFi)

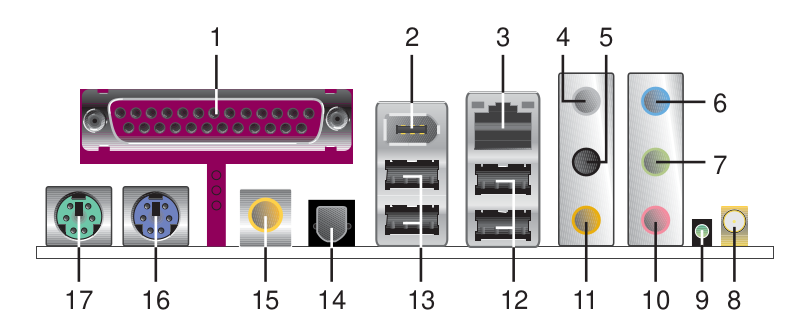

I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
S/PDIF
2x
SATA I
1x
Serial
1x
Toslink
8x
USB 2.0
Expansion slots3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Notes
Version without WiFi Exists
Last updated 2024-02-06T00:42:08Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
CPU family support
20 BIOS files available
Award - 20 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/25/2006-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
12/06/2005-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
09/19/2005-K8T890-8237-A8V-E-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
09/19/2005-K8T890-8237-A8VE-NW-00
Note
Beta Version, non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
10/14/2005-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
06/24/2005-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
04/29/2005-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
03/31/2005-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
03/03/2005-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
POST string
01/25/2005-K8T890-8237-A8VE-NW-00
Note
non-WiFi edition
Core version
6.00PG
BIOS version
Logs
8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7
Windows 8.x
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
1.8MB
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
, x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000
Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000
Windows NT 4.0
Windows Vista
Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.4MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-12
File
Logs

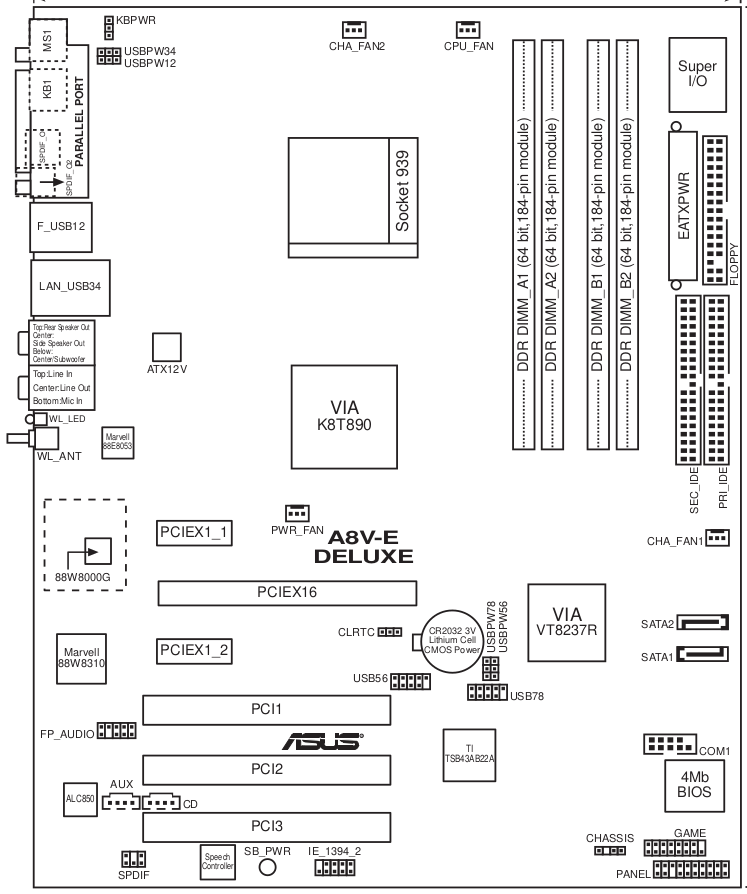

Image 1 of 3 (ASUS)
Image 2 of 3 (ASUS)
Image 3 of 3 (ASUS)
