ASUS A8N-SLI SE
Logs
Chipset
Socket
FSB speeds 800MHz1000MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
Expansion slots3x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
1x
PCIe x4
Last updated 2023-08-05T01:10:06Z
Board info score is 8.9/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
6 BIOS files available
Award - 6 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 2000
Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
1.0
OS support
Windows 2000
Windows NT 4.0
Arch
x86-64
Size
819.6KB
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

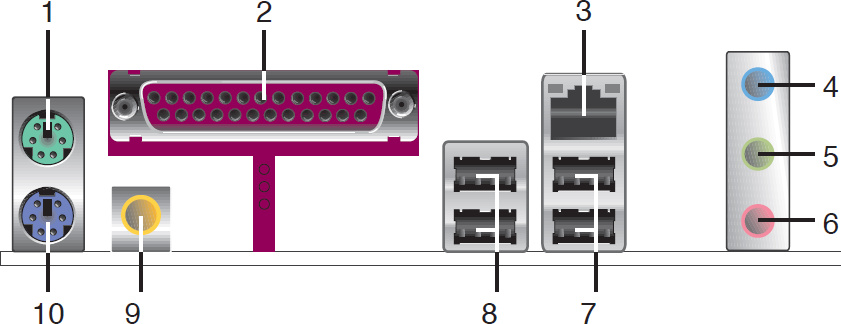

Image 1 of 2 (ASUS)

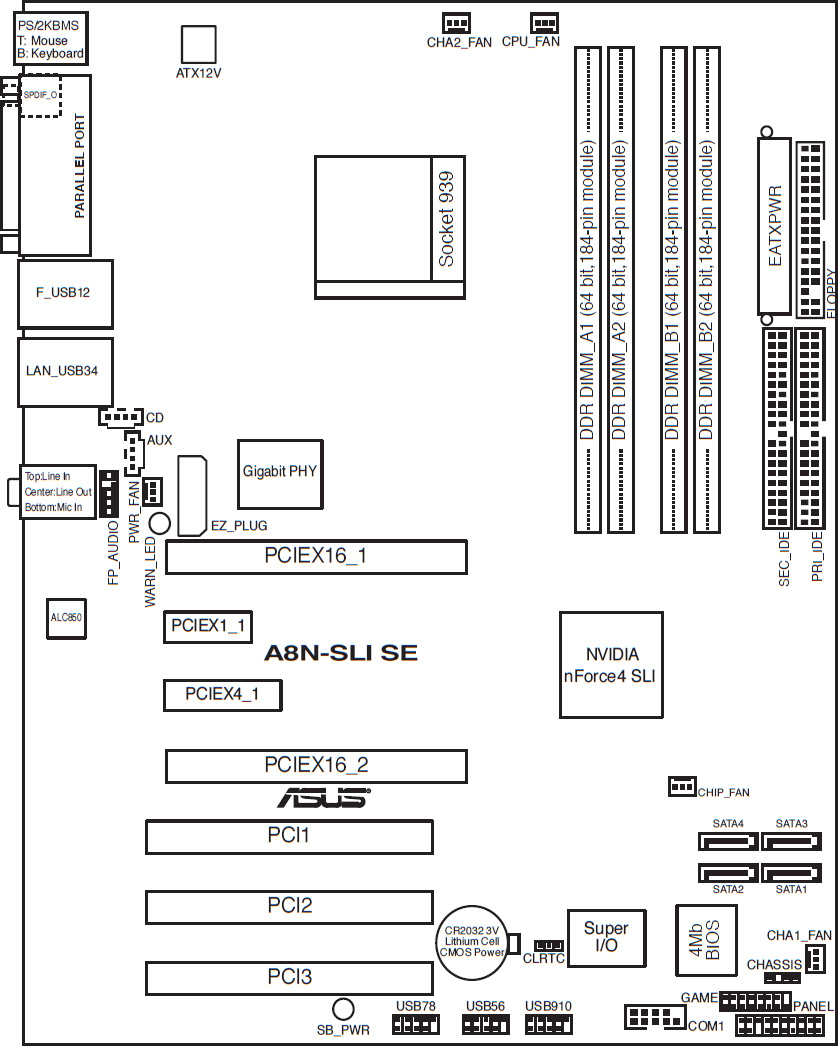

Image 2 of 2 (ASUS)
