ASUS A7V8X-LA (Rev. 2.02) (HP OEM, KM400A)
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
266MHz333MHz400MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB(DDR-333)
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • HP Kelut-GL6E
  • HP 5187-4913
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
3x
32-bit PCI
notes Notes

Used in: Pavilion a810.fr, Pavilion a750.nl

According to reports, this board does not support 200MHz FSB. Beware that the FSB will be set to 266MHz if a CPU at 200MHz FSB is installed, resulting in overclocked operation and therefore possible stability issues.

Older BIOS versions seem to have compatibility issues with DDR-400 RAM, resulting in POST failures. The latest version reportedly fixes these issues.

Last updated 2025-11-17T23:21:55Z
Board info score is 9.8/10
bios 3 BIOS files available

vendor Award - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/06/2005-KM400A-8237-6A6LYA0E-00
Note
sp26567
Core version
6.00PG
BIOS version
Logs
POST string
09/02/2004-KM400-8237-6A6LYA0E-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/11/2004-KM400-8237-6A6LYA0EC-00
Note
Core version
6.00PG
BIOS version
3.08
Logs
POST string
07/09/2004-KM400-8237-6A6LYA0EC-00
Note
(in French)
Core version
6.00PG
BIOS version
Logs
POST string
02/09/2004-KM400-8237-6A6LYA0EC-00
Note
Core version
6.00PG
BIOS version
3.03
Logs
POST string
02/19/2004-KM400-8237-6A6LYA0EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/04/2005-KM400A-8237-6A6LYA0E-00
Note
Core version
6.00PG
BIOS version
Logs
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
3.32
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
Size
4.1MB
Filename
Name
Version
16.01.20.04
OS support
Windows 9x
Arch
Size
7.2MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
6.2MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
6.9MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
File
Logs

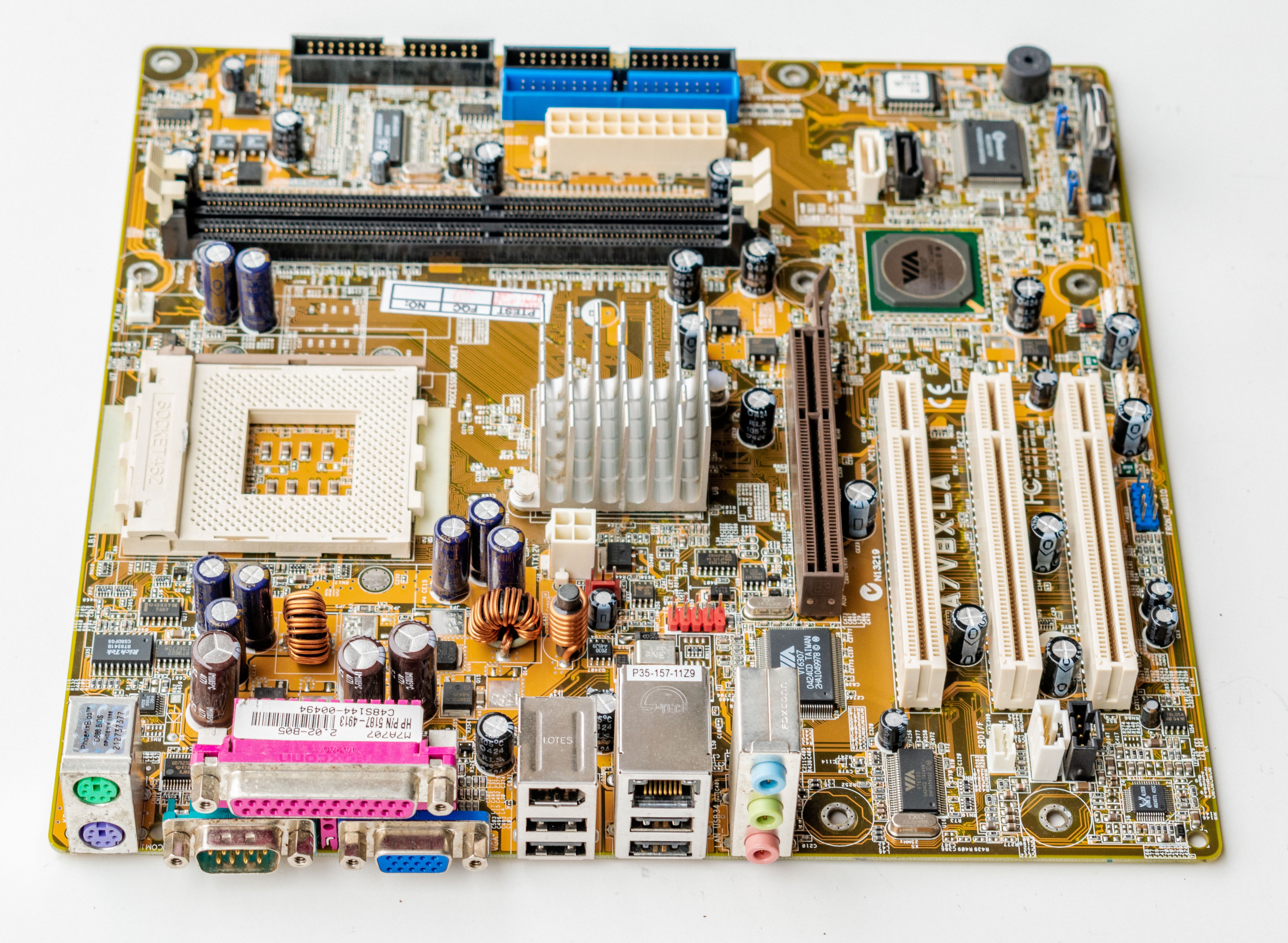

image1 Image 1 of 5 (ASUS)

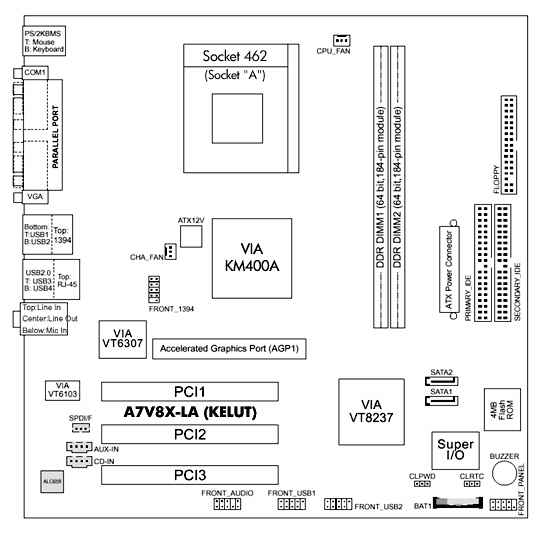

image2 Image 2 of 5 (Motherboard Continuum)

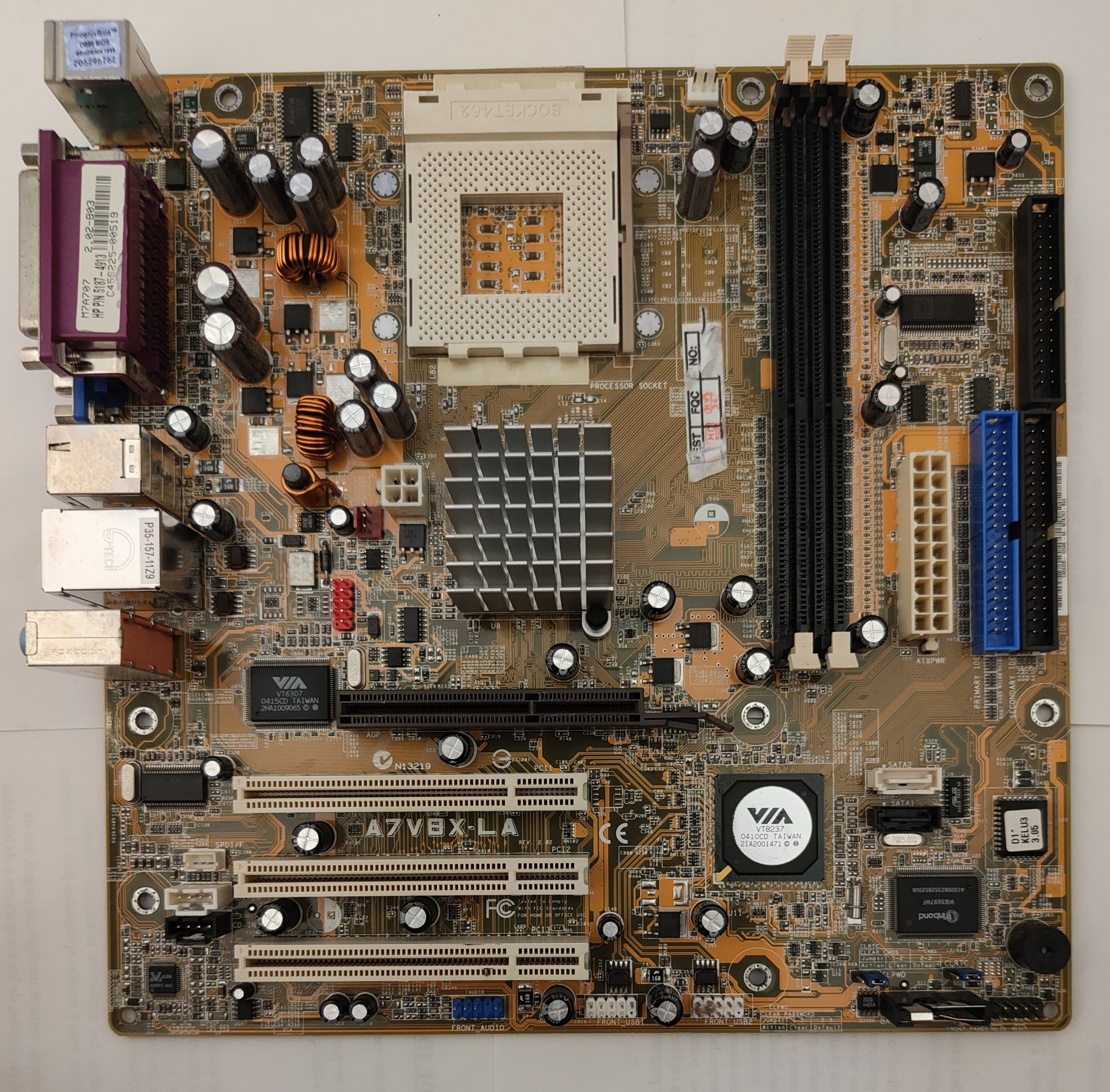

image3 Image 3 of 5 (Carlos S. M.)

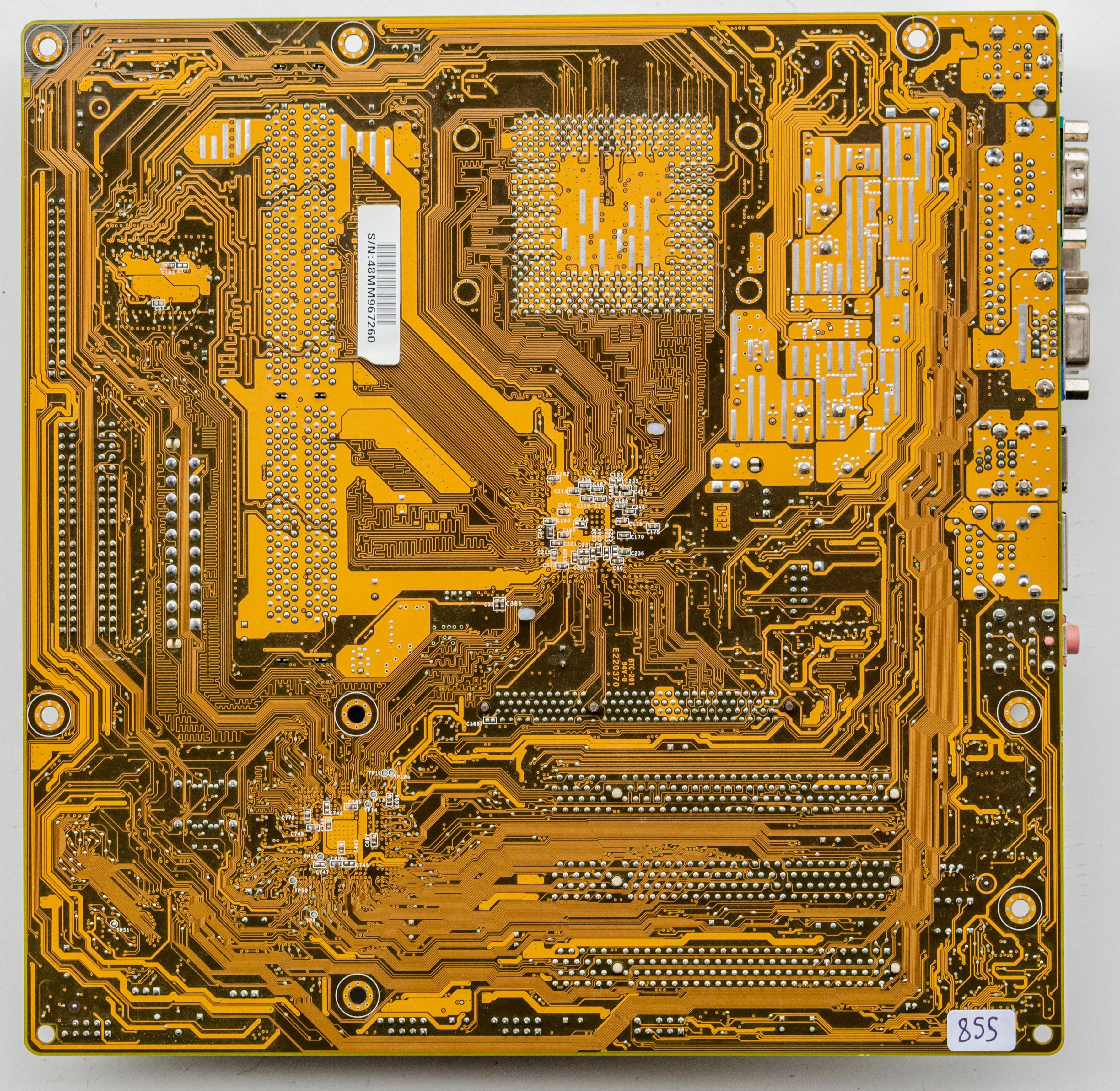

image4 Image 4 of 5 (Motherboard Continuum)

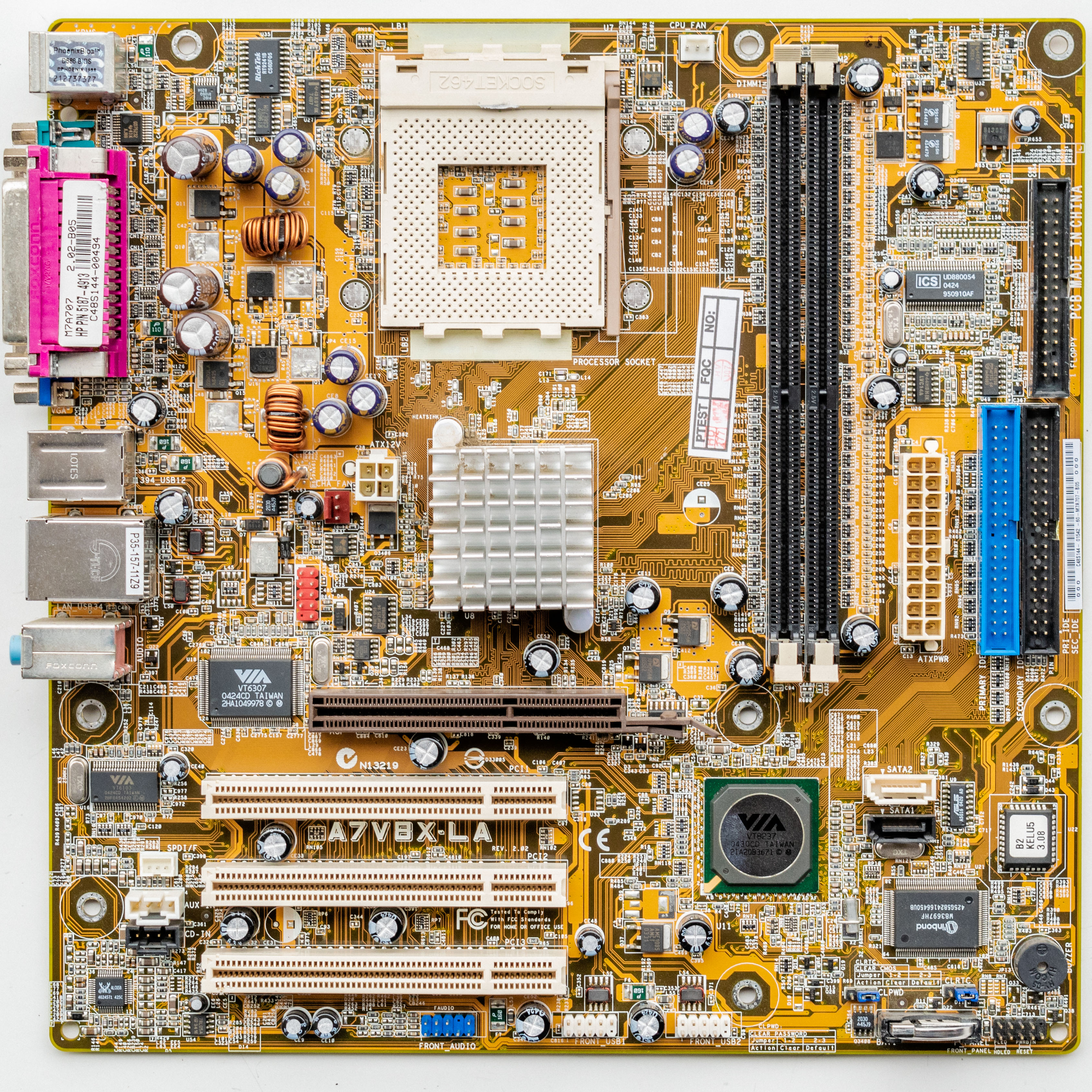

image5 Image 5 of 5 (Motherboard Continuum)
