ASUS A7S-VM (Rev. 1.03)
Chipset
Socket
FSB speed 200MHz
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 244mm
Max VRAM size64MB
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM type SDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
1x
VGA
Expansion slots4x
32-bit PCI
Last updated 2025-11-17T23:17:42Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/23/2002-SiS730 -A7S-VM
Note
Core version
v6.0
BIOS version
Logs
POST string
07/25/2001-SiS730 -A7S-VM
Note
Core version
v6.0
BIOS version
Logs
POST string
04/19/2001-SiS730 -A7S-VM
Note
Core version
v6.0
BIOS version
Logs
11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
2.08A
OS support
Windows 9x
Arch
Size
Empty
Filename
Name
Version
2.08A
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
Version
OS support
Arch
Size
Filename
2 board documents available
Chip
Release date
File
Logs

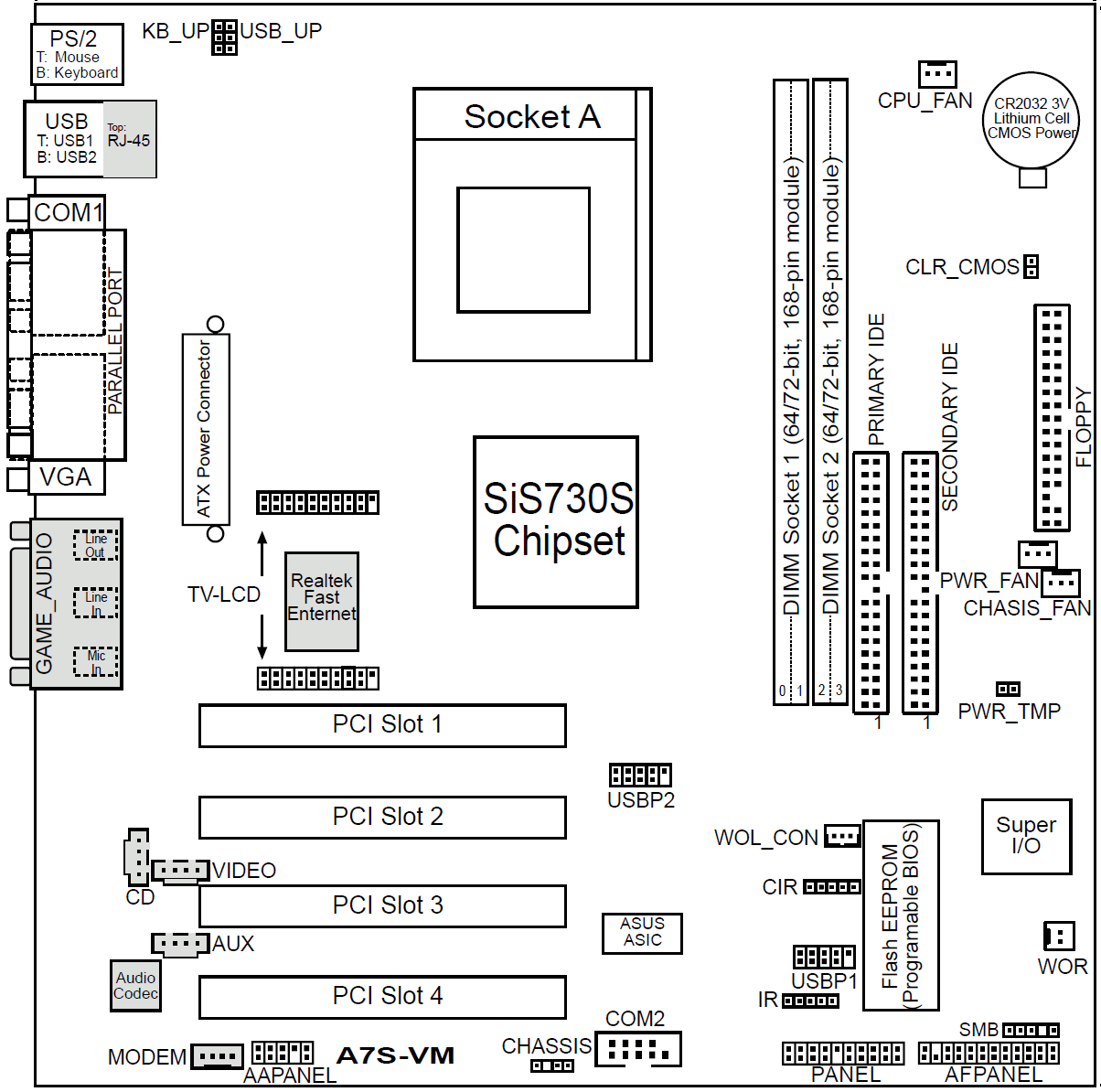

Image 1 of 3 (ASUS)

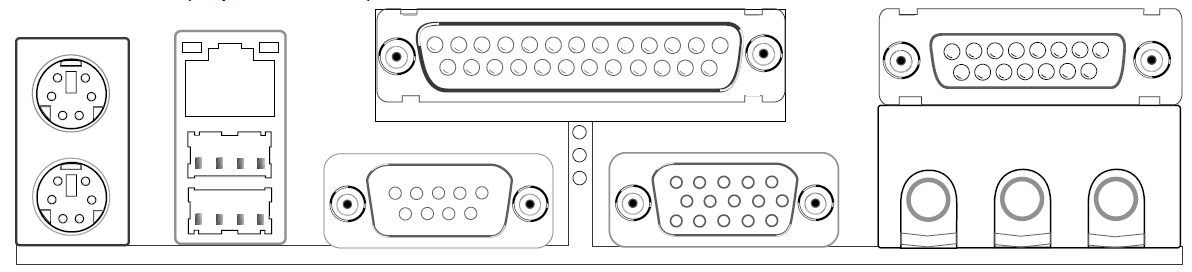

Image 2 of 3 (ASUS)

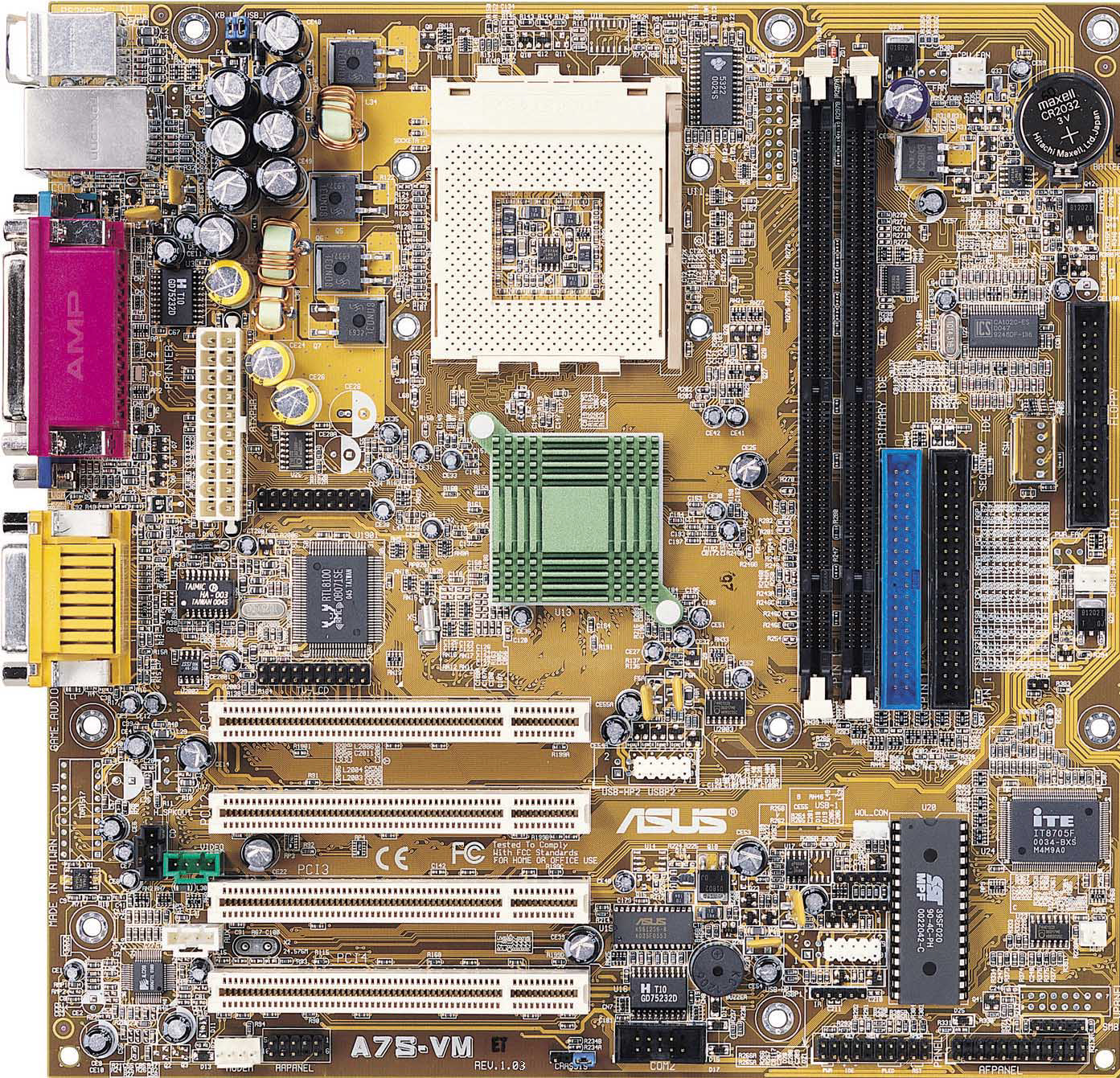

Image 3 of 3 (ASUS)
