ASUS A7M266 (Rev. 1.04)
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
306mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB(PC2100 DDR RAM)
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
AMR
1x
Universal AGP Pro
notes Notes

LAN / Audio optional depending on model.

Last updated 2025-04-06T07:39:52Z
Board info score is 9/10
chip Chips
-> Chipset part
AMD 761 VIA VT82C686B
-> Audio
C-Media CMI8738/PCI (C3DX)
-> Network
3Com 920-BR06 (3C920)
-> Sensing / Monitoring
ASUS AS99127F (ASIC)
cpufam CPU family support
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/22/2002-AMD_760-<A7M266>
Note
Core version
ASUS 6.00
BIOS version
Logs
POST string
04/29/2002-AMD_760-<A7M266>
Note
Core version
ASUS 6.00
BIOS version
Logs
POST string
10/03/2001-AMD_760-<A7M266>
Note
Core version
ASUS 6.00
BIOS version
Logs
POST string
06/12/2001-AMD_760-<A7M266>
Note
Core version
ASUS 6.00
BIOS version
Logs
POST string
02/13/2001-AMD_760-<A7M266>
Note
Core version
ASUS 6.00
BIOS version
Logs
POST string
01/03/2001-AMD_760-<A7M266>
Note
Core version
ASUS 6.00
BIOS version
Logs
drv 19 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.4
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Windows 2000 Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
1.30
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.7MB
Filename
Name
Version
1.98
OS support
MS-DOS
Arch
x86
Size
64.9KB
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000 Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
609.9KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
267.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
x86
Size
26.2KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.1MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-02
File
Logs
Chip
Release date
File
Logs

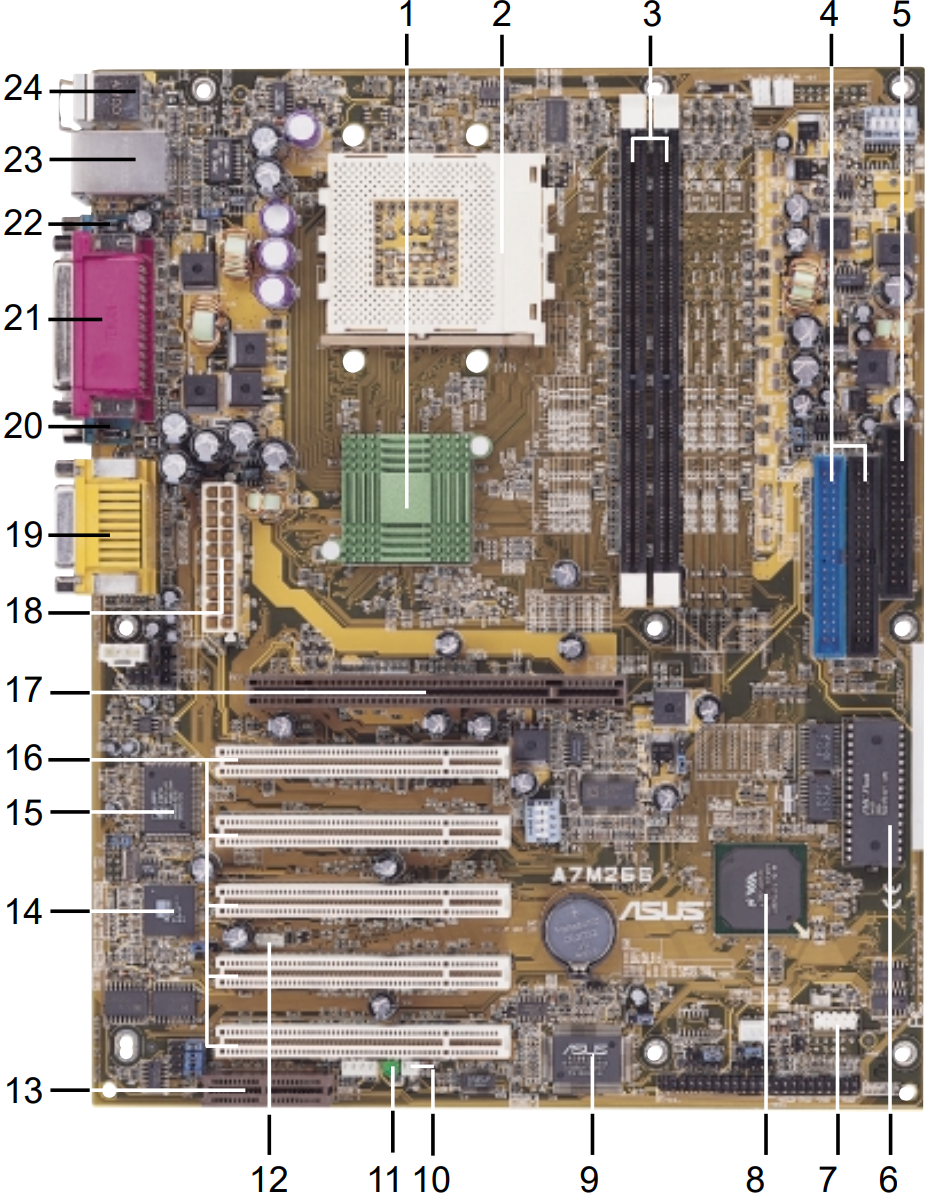

image1 Image 1 of 3 (ASUS)

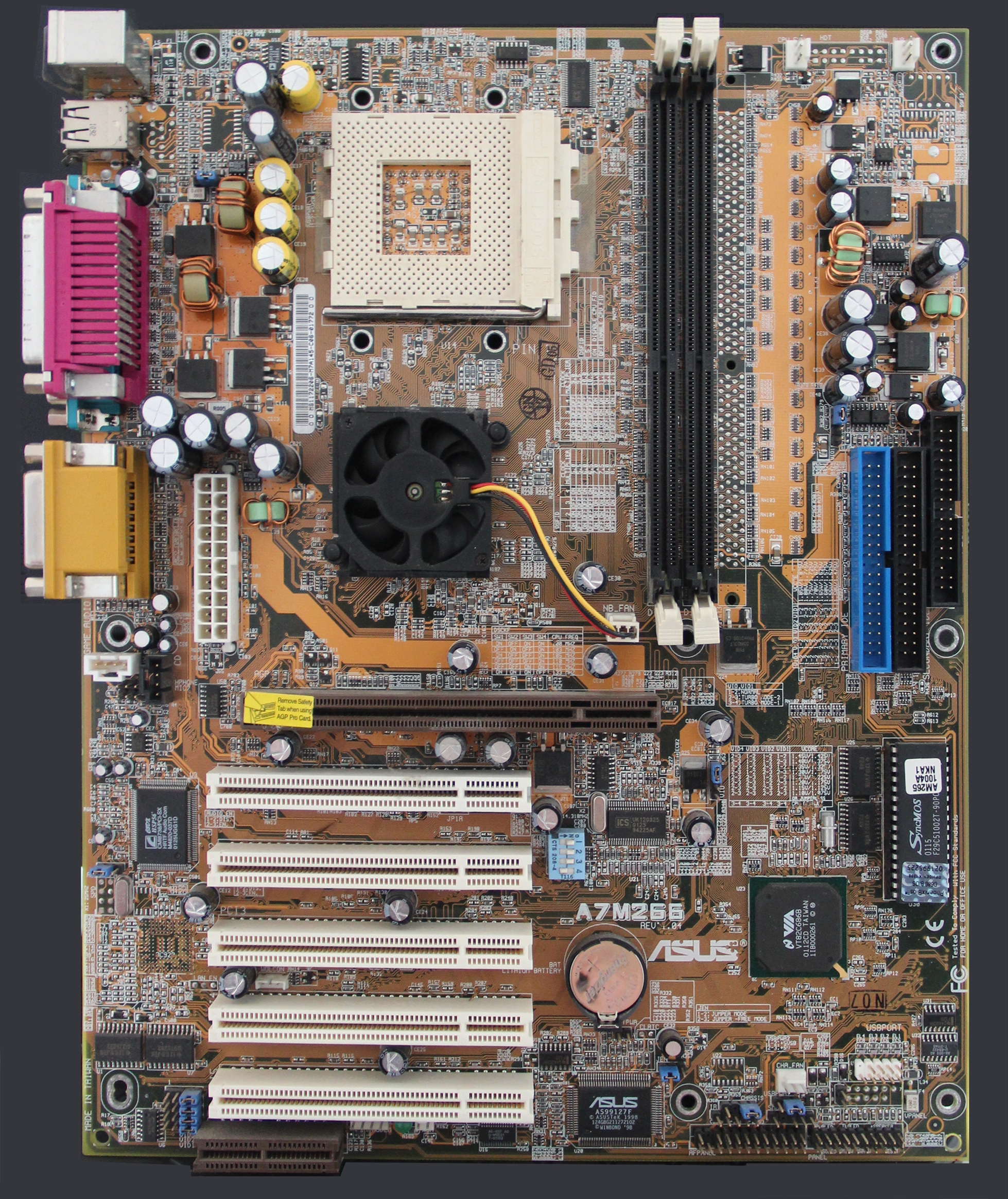

image2 Image 2 of 3 (Boohyaka)

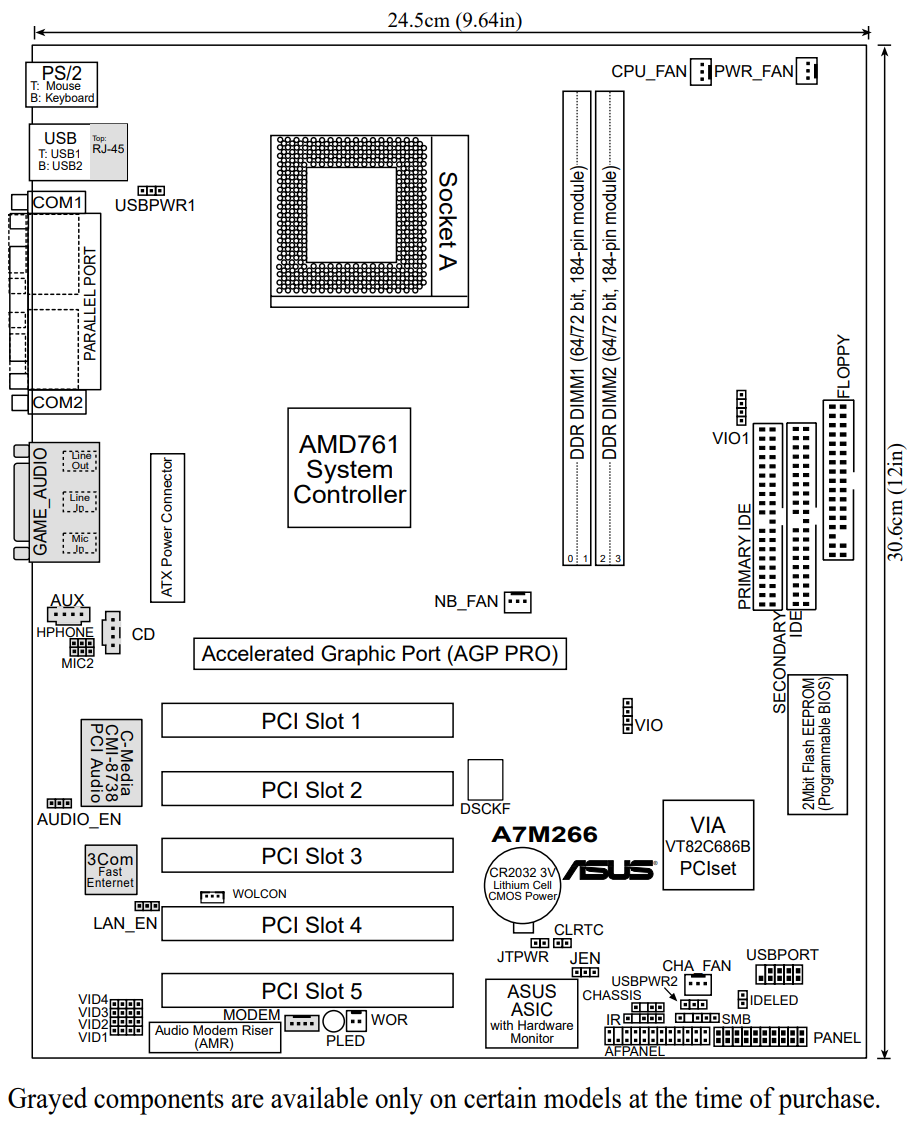

image3 Image 3 of 3 (ASUS)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
