ASUS A7M266-D (Rev 1.02)
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305 mm x 244 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB(unbuffered)3.5GB(registered)
ramRAM types
DDR UDIMMDDR RDIMM ECCDDR UDIMM ECC
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4) ATX auxiliary 3.3v/5v (6-pin P14)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
4x
32-bit PCI
2x
64-bit PCI
1x
Universal AGP Pro
notes Notes

Some motherboards came with onboard usb ports populated, some have them unpopulated. A 4-port USB card was included with the motherboard.

Optional audio

Last updated 2025-02-09T20:40:52Z
Board info score is 9.4/10
bios 8 BIOS files available

vendor Award - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/22/2003-AMD760MP-A7M266-D
Note
Beta Version
Core version
Asus v6.0
BIOS version
Logs
POST string
03/03/2003-AMD760MP-A7M266-D
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
10/14/2002-AMD760MP-A7M266-D
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
09/24/2002-AMD760MP-A7M266-D
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
08/19/2002-AMD760MP-A7M266-D
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
05/13/2002-AMD760MP-A7M266-D
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
04/11/2002-AMD760MP-A7M266-D
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
12/17/2001-AMD760MP-A7M266-D
Note
Core version
Asus v6.0
BIOS version
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43s
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.3MB
Filename
Name
Version
1.11
OS support
Windows 9x
Arch
x86
Size
180.2KB
Filename
Name
Version
1.22s
OS support
Windows 9x
Arch
x86
Size
423.6KB
Filename
Name
Version
1.8.7
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
5.3MB
Filename
Name
Version
8.2.2.0
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.2MB
Filename
Name
Version
1.98
OS support
MS-DOS
Arch
x86
Size
64.9KB
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000 Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
x86
Size
26.2KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.1MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

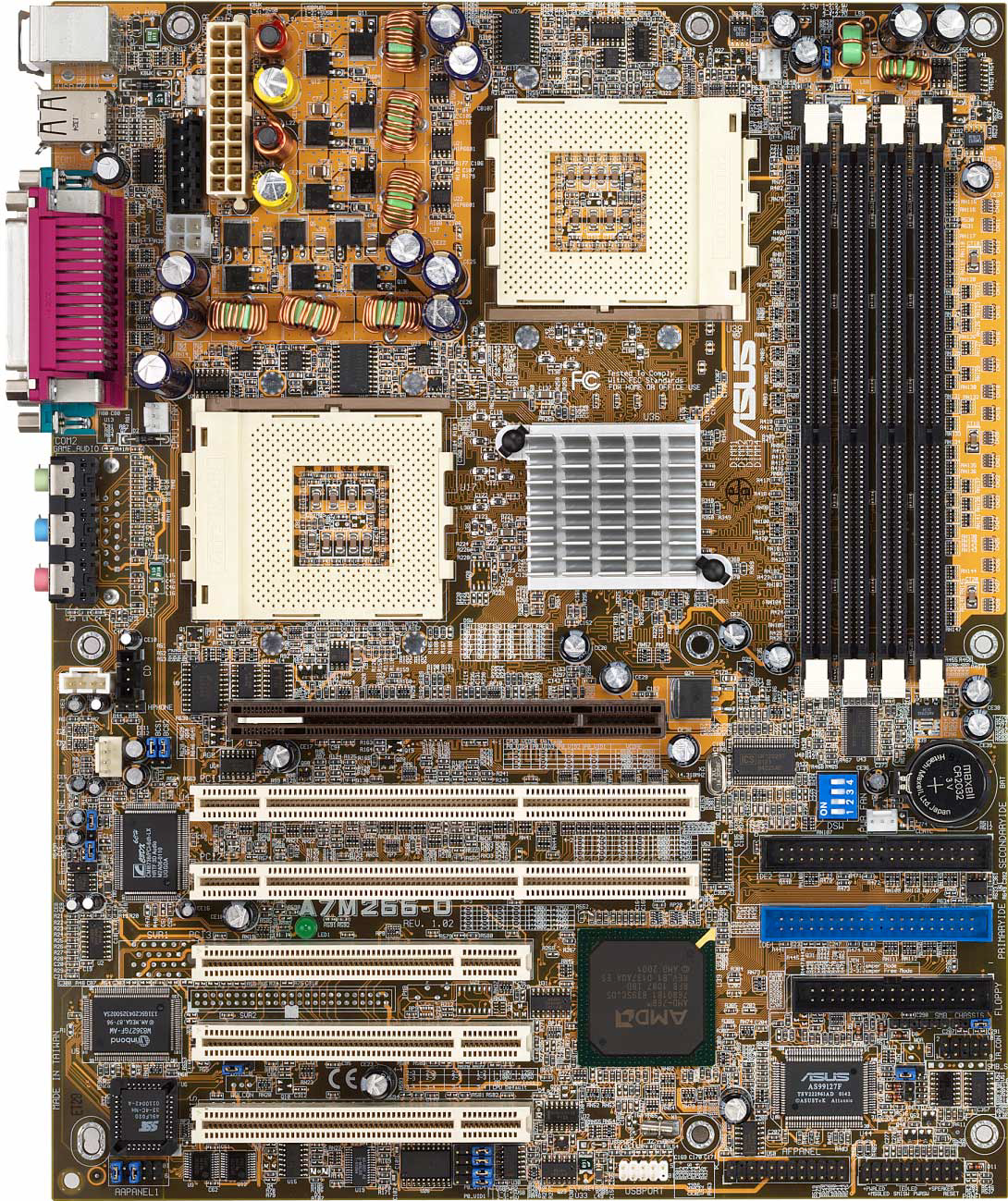

image1 Image 1 of 2 (ASUS)

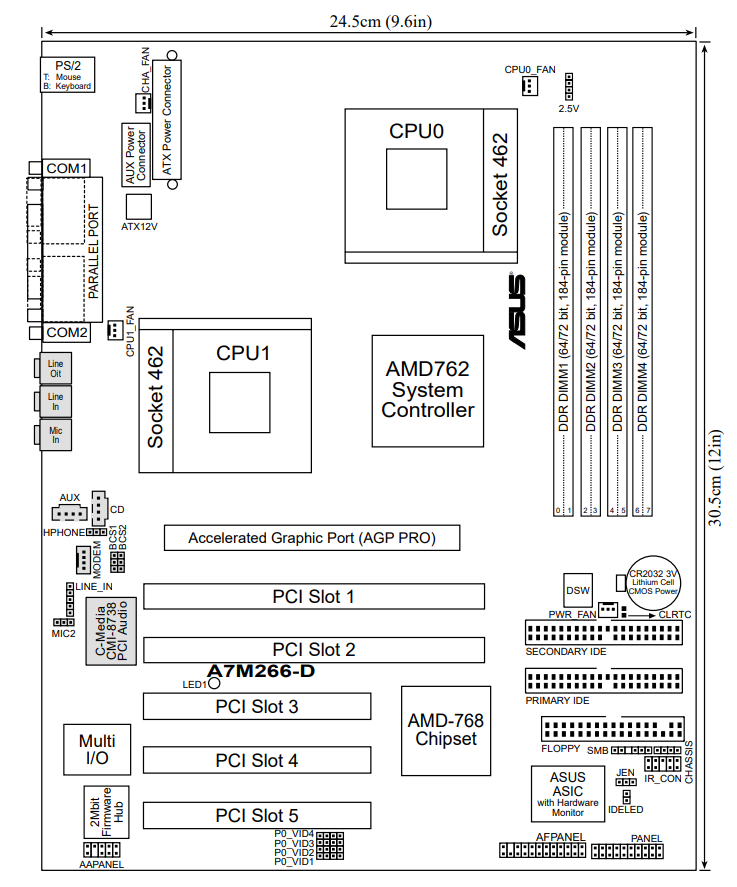

image2 Image 2 of 2

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
