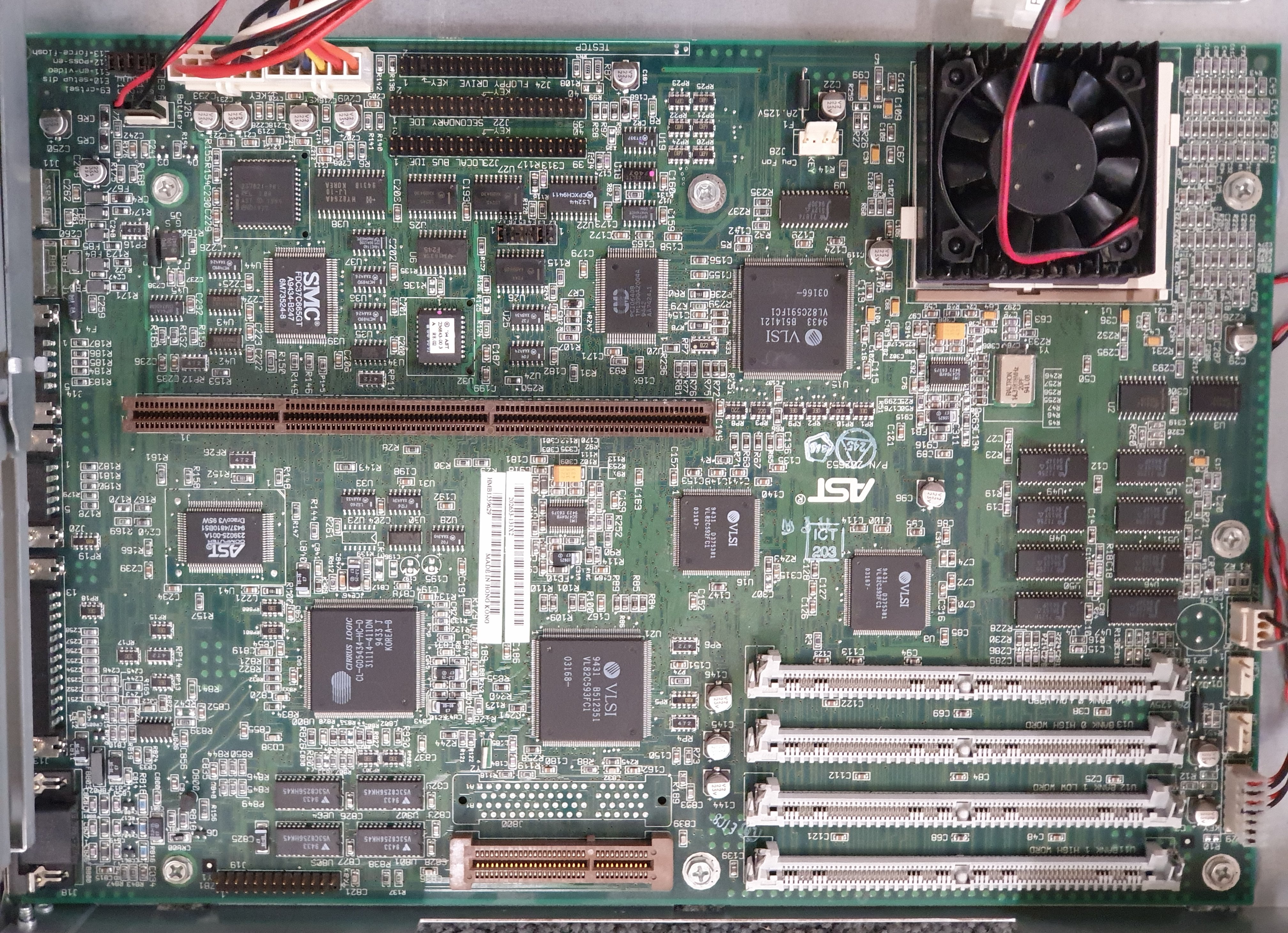

AST Bravo MS, MS-T, MS-L Pentium (RATTLER) (202653-XXX)
Logs
chipChipset
cpuSocket
Socket 5 (PGA320)
speedFSB speeds
60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
512KB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
3x
16-bit ISA
2x
32-bit PCI
wrench Known issues

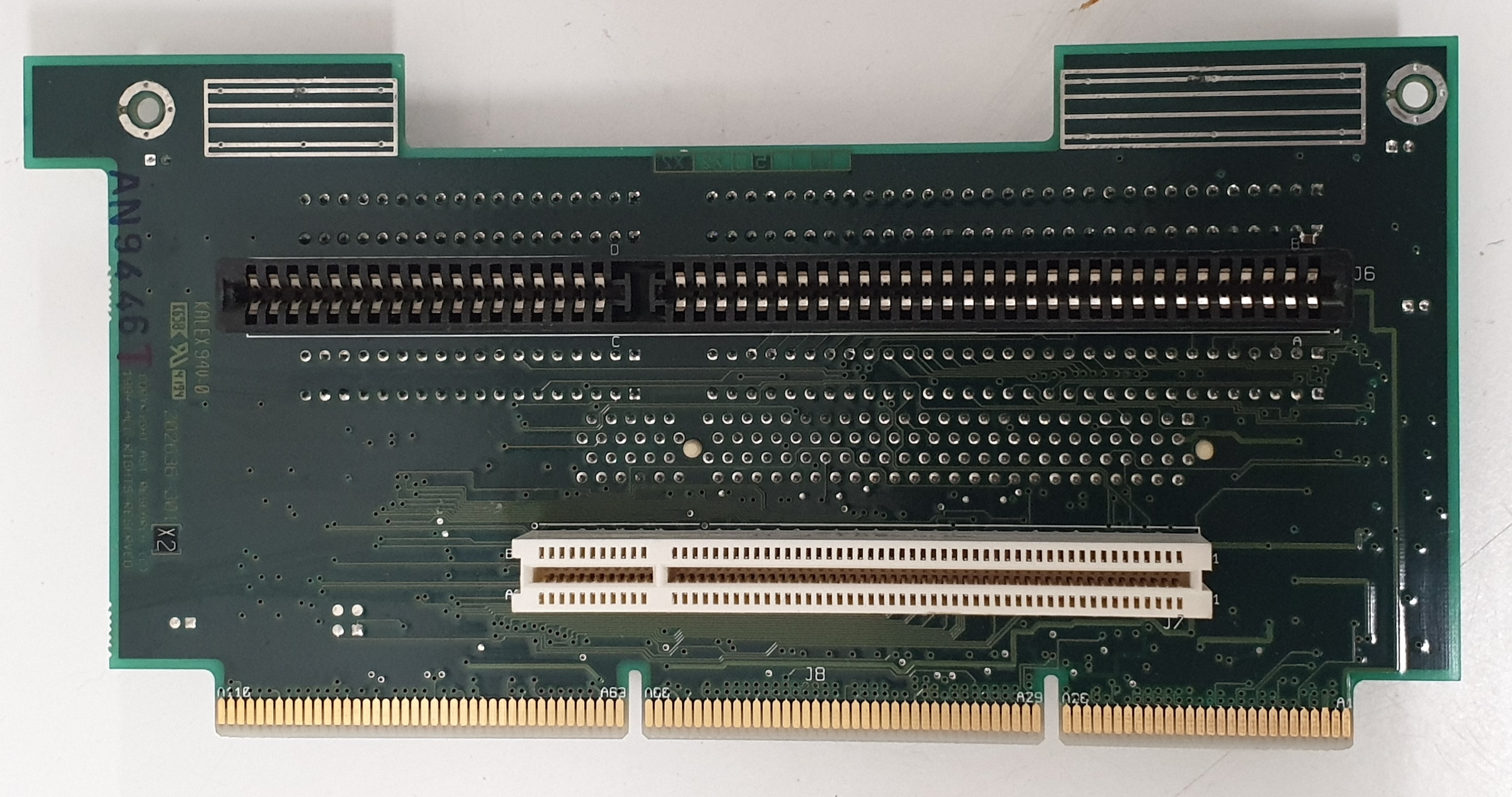

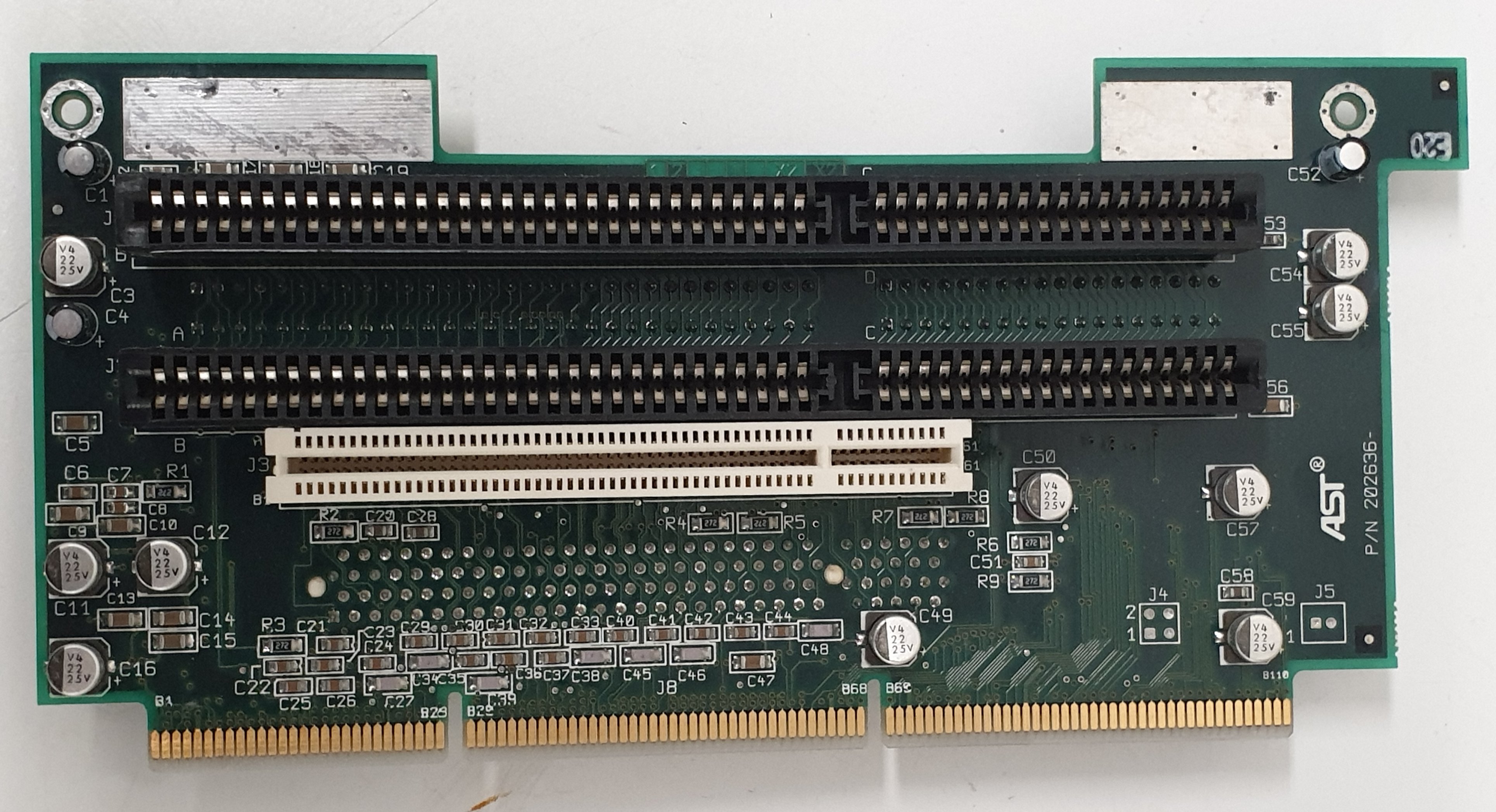

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-12-25T13:31:46Z
Board info score is 9/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
AST
BIOS version
Logs
POST string
Note
Core version
AST
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
1.24
OS support
OS/2 2.x Windows 3.1x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
9.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
600.3KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Manaatti)
image3 Image 3 of 4 (Manaatti)
image4 Image 4 of 4 (BurnedPinguin)
