AST Advantage! 610/611 486 (202728-101)
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speed
33MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
220mm x 220mm
ramMax VRAM size
2MB
chipCache
None/Integrated in the CPU
ramMax RAM size
32MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • AST Advantage! 611s 486 (202728-301B)

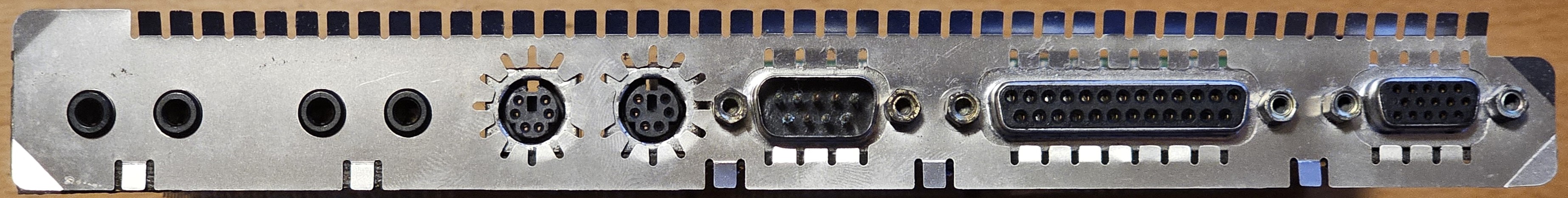

connI/O ports
1x
3.5mm Line-In
2x
3.5mm Line-Out
1x
3.5mm Microphone
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

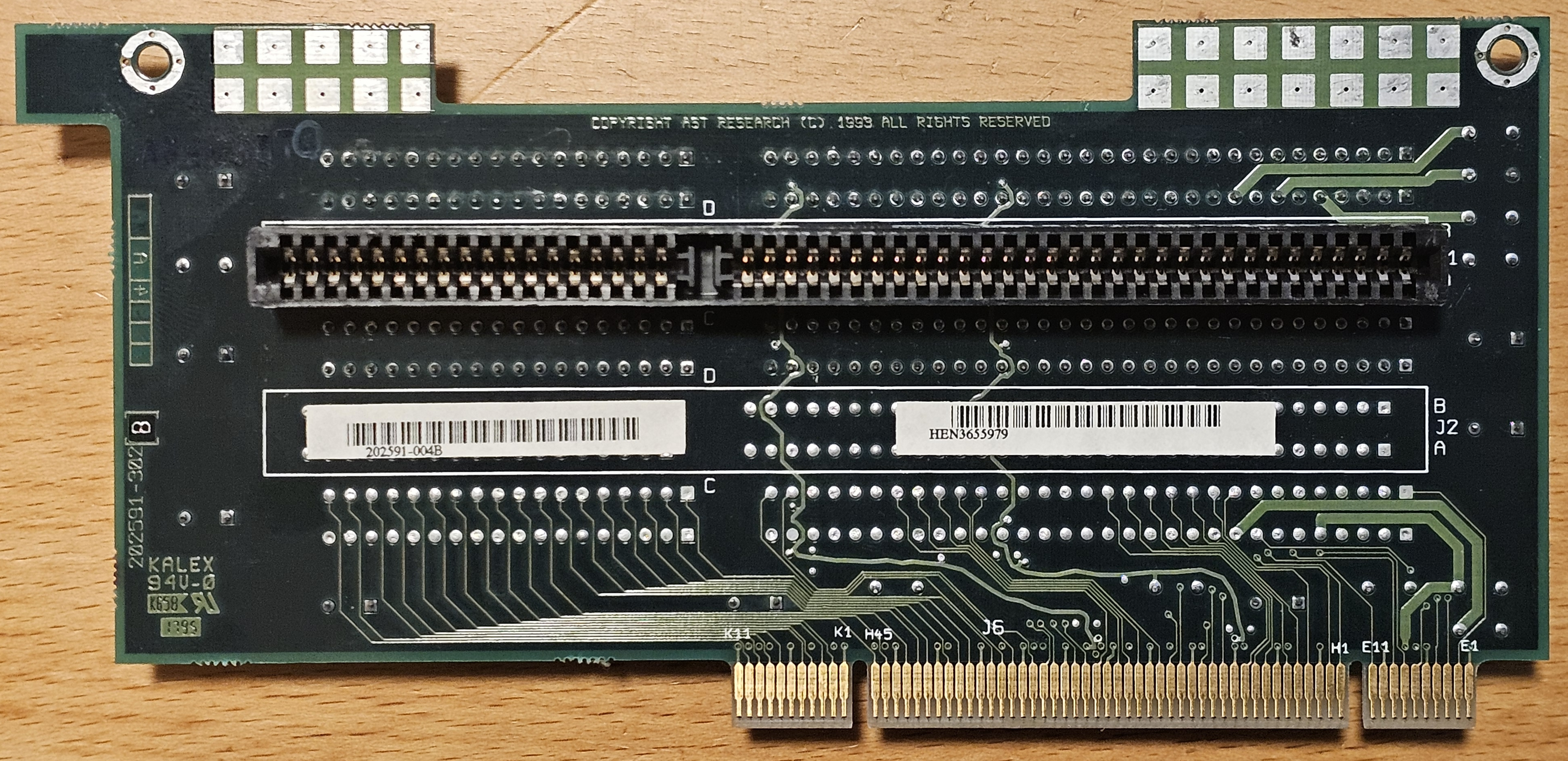

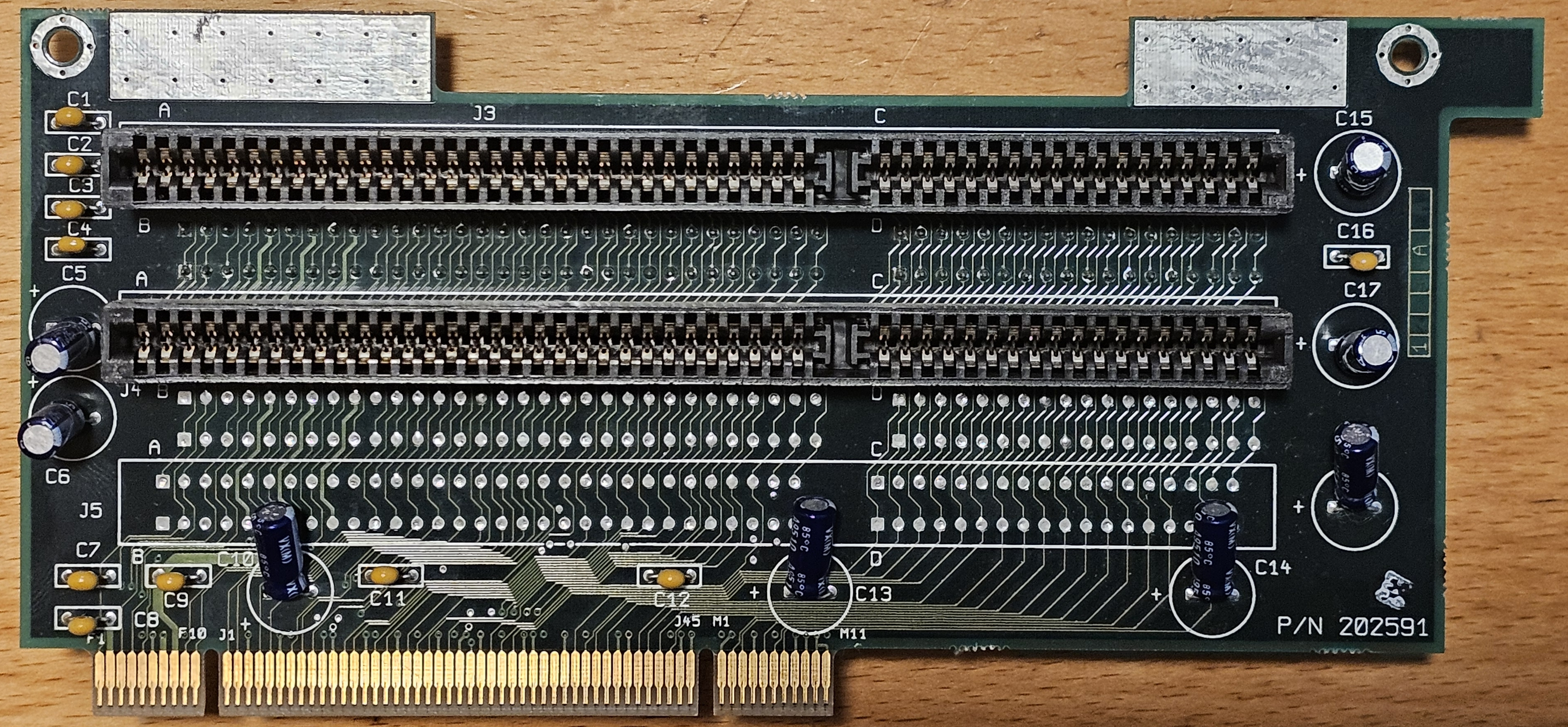

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Restore media is here:
https://archive.org/details/ast-advantage-600-restore

Last updated 2025-06-28T14:10:12Z
Board info score is 8.7/10

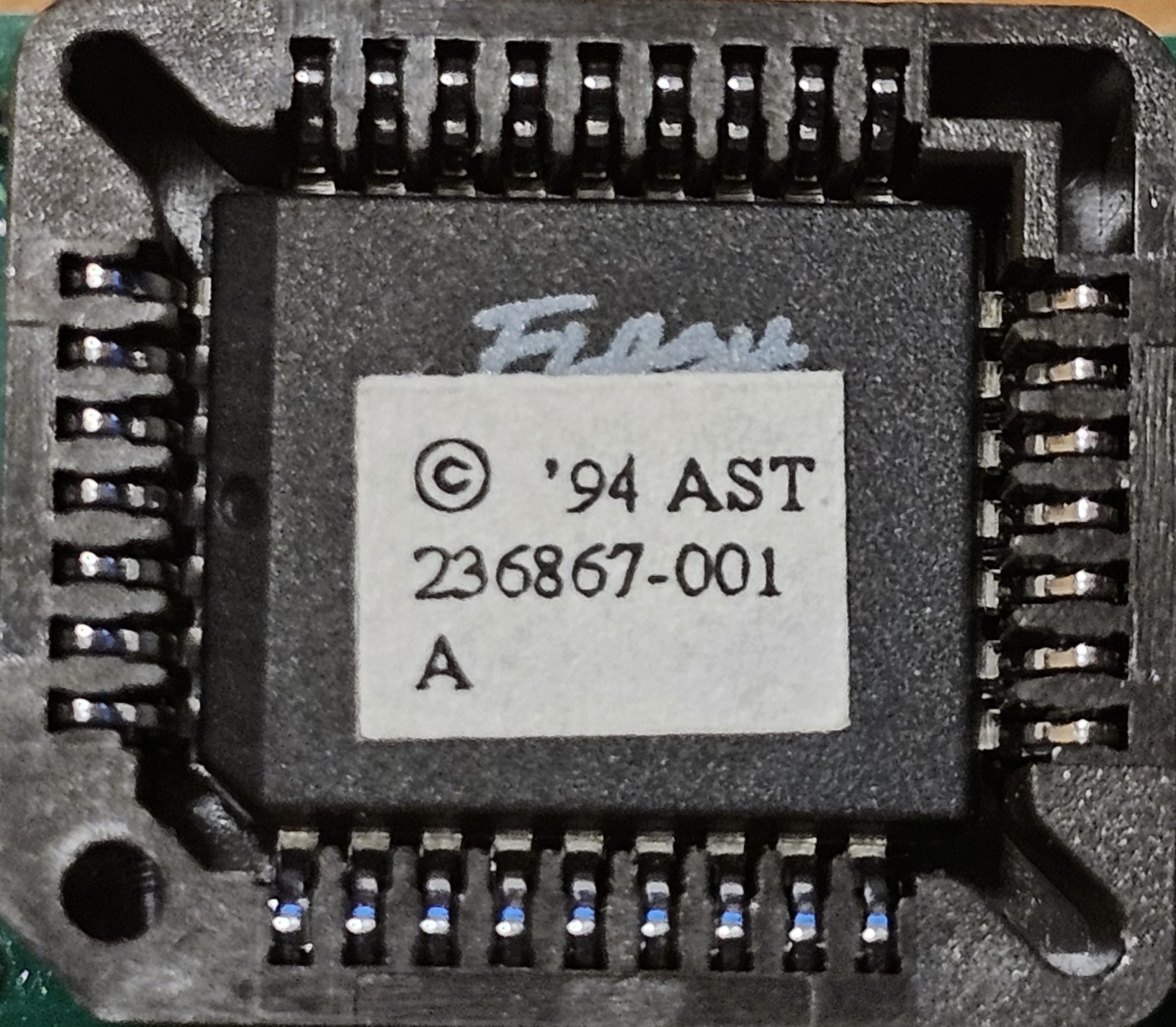

bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
AST
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
3.50
OS support
Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
140KB
Filename
Name
Version
P16V-STD-01-ENG
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
600.3KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-12-21
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-12-01
File
Logs
Chip
Release date
1995-03-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

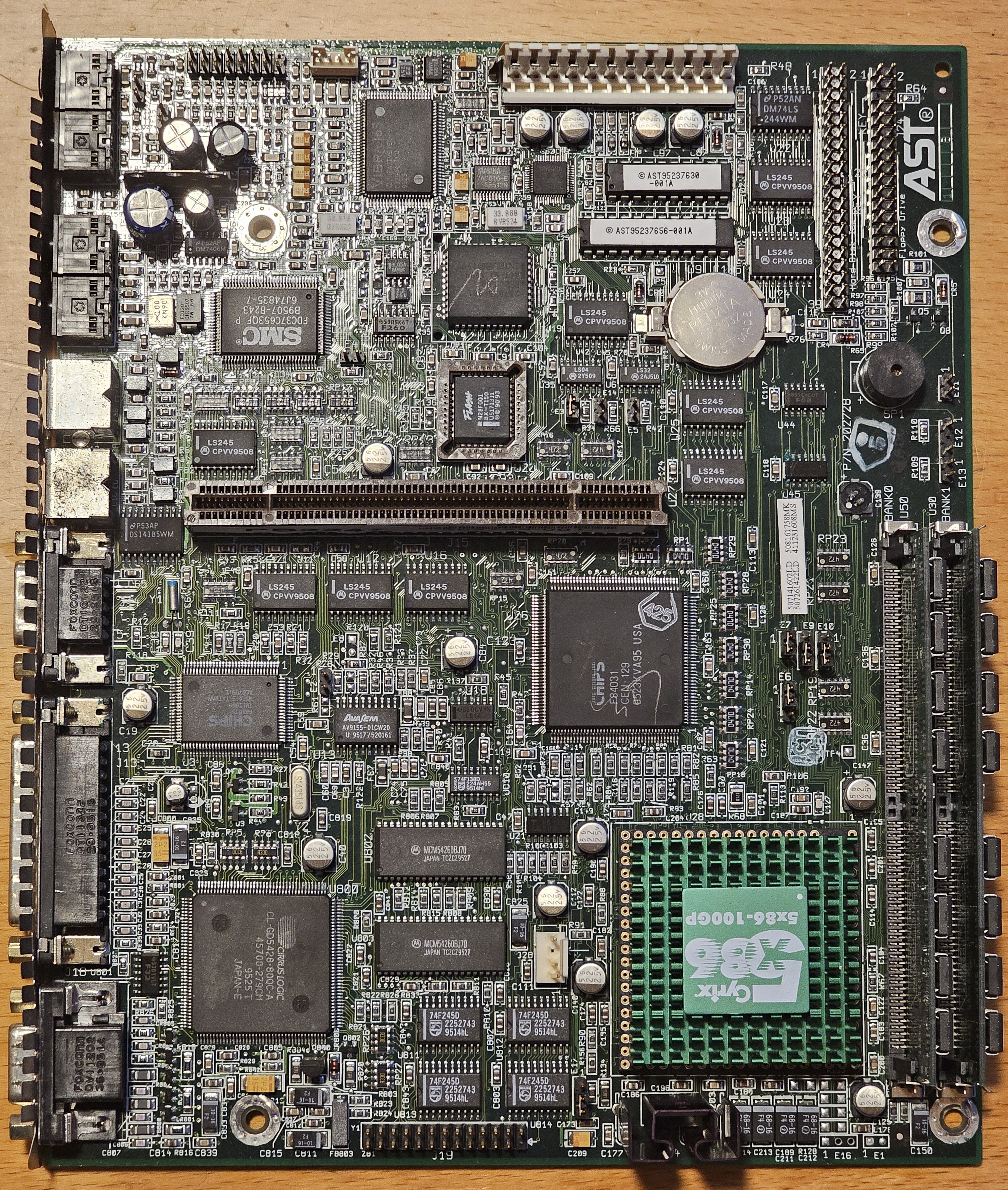

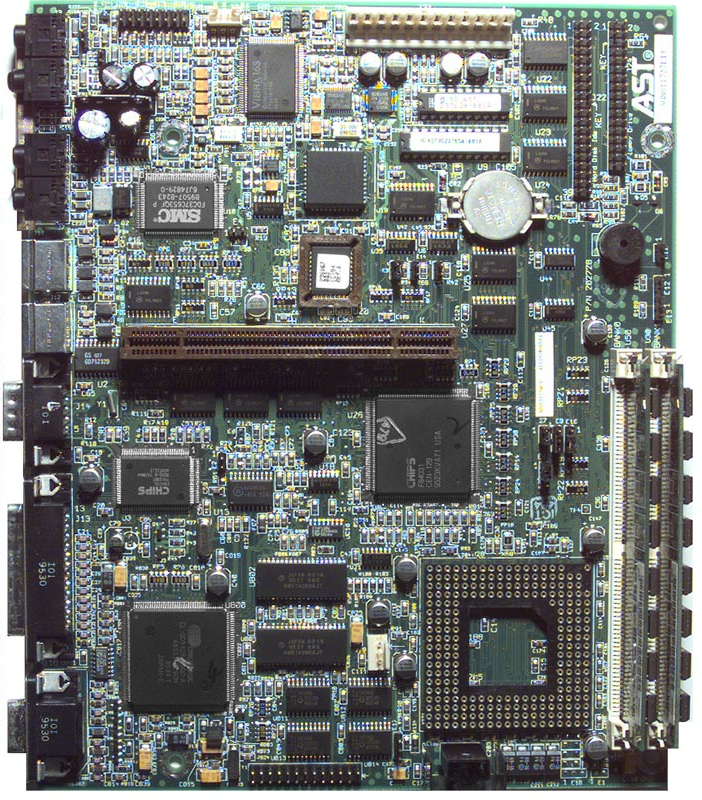

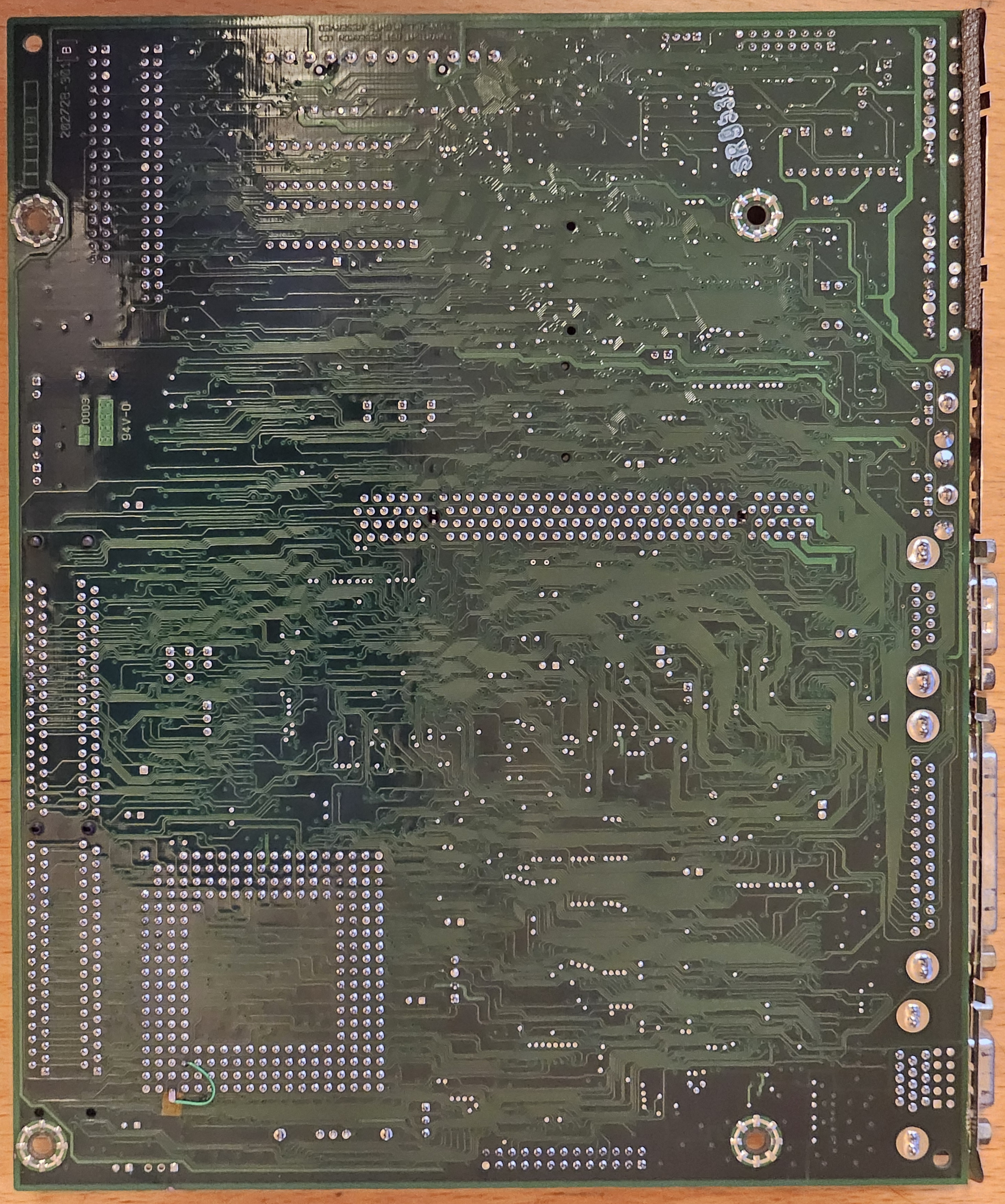

image1 Image 1 of 9 (Microhouse)
image2 Image 2 of 9
image3 Image 3 of 9 (rosaage)
image4 Image 4 of 9 (rosaage)
image5 Image 5 of 9 (rosaage)
image6 Image 6 of 9 (rosaage)
image7 Image 7 of 9 (rosaage)
image8 Image 8 of 9 (rosaage)
image9 Image 9 of 9 (rosaage)
