ASRock P55 Extreme
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
32GB(With 45nm CPU)16GB(With 32nm CPU)
RAM type DDR3 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
S/PDIF
6x
SATA II
1x
Serial
1x
Toslink
13x
USB 2.0
1x
eSATA II
Expansion slots3x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
1x
PCIe x16 @ x8
Last updated 2025-11-11T22:52:39Z
Board info score is 8.5/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Miscellaneous
-> Network
-> SATA ctrl.
-> Super I/O
12 BIOS files available
AMI - 12 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
3.8MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs
Family
Release date
2011-03-21
File
Logs

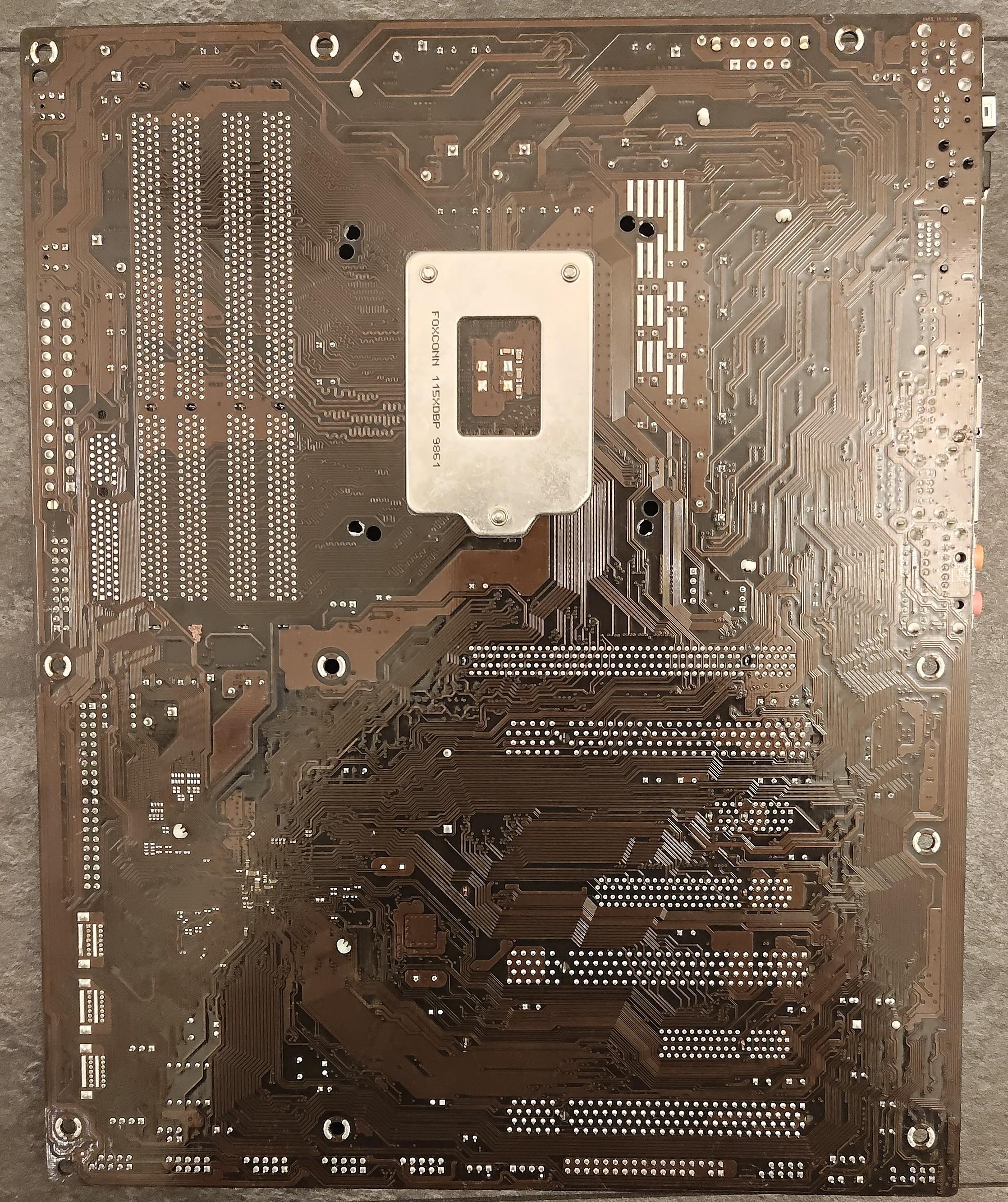

Image 1 of 6 (Ashley98)

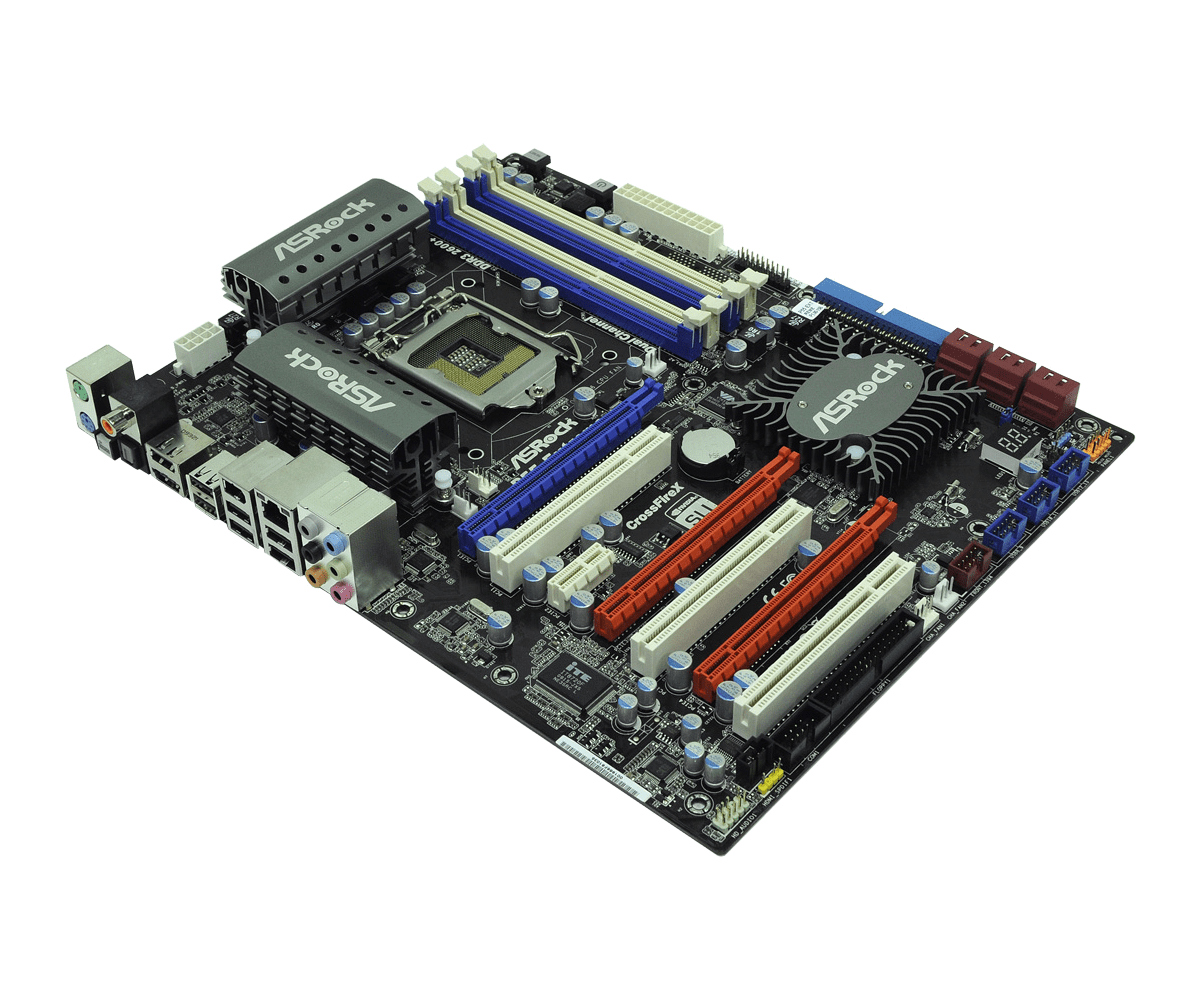

Image 2 of 6 (ASRock)

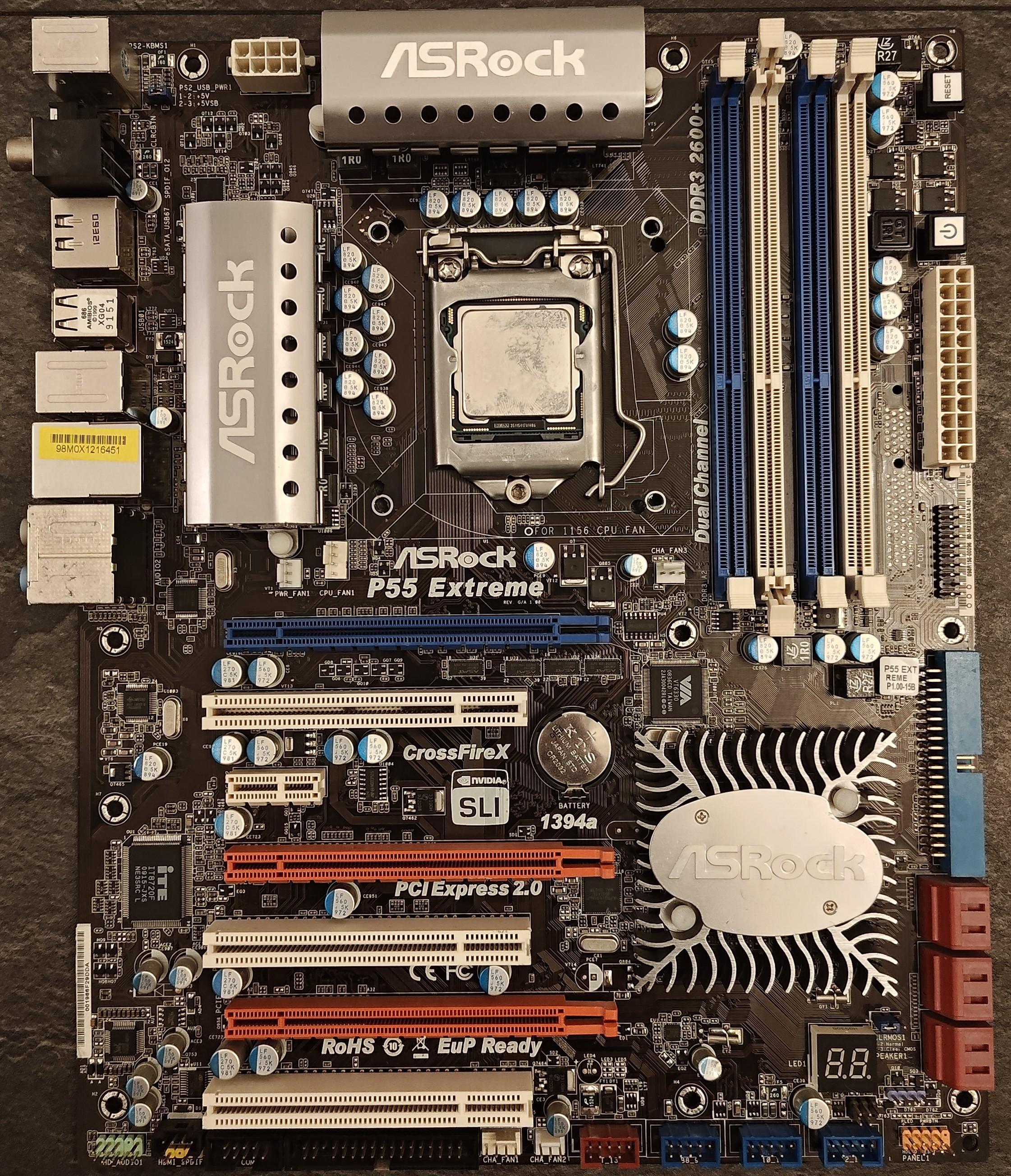

Image 3 of 6 (Ashley98)

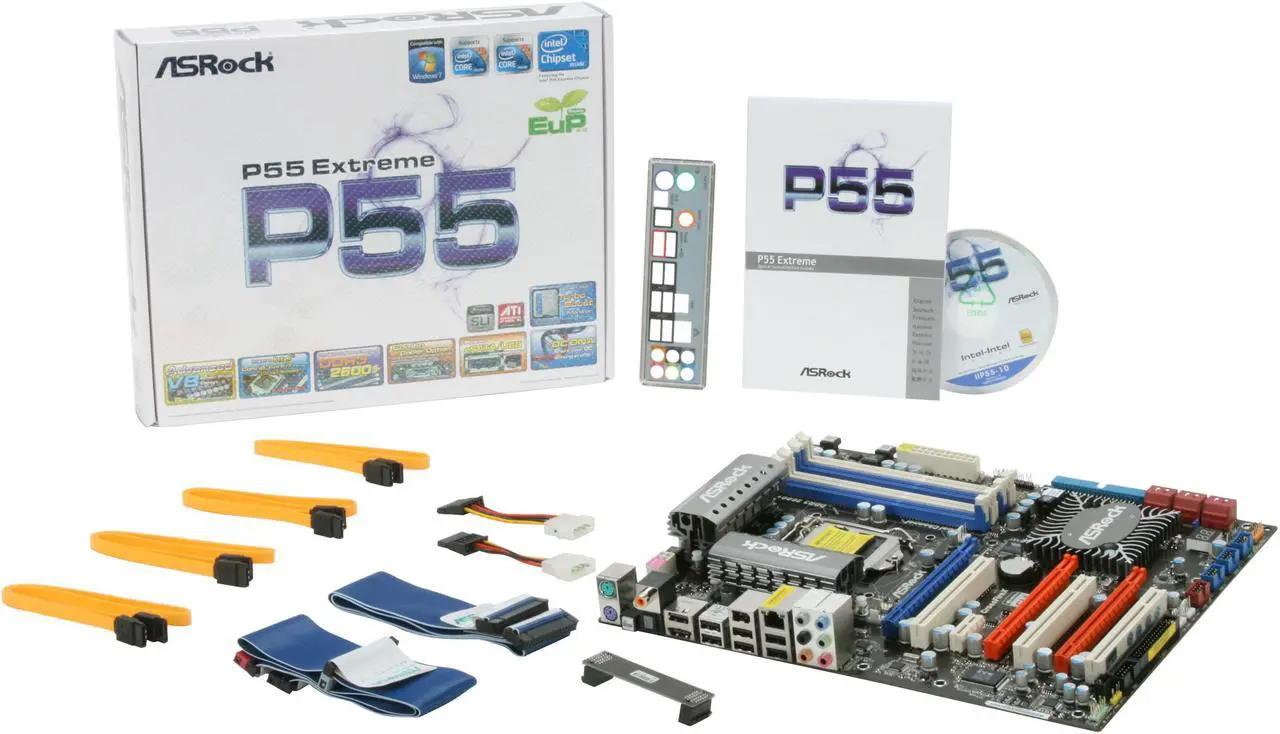

Image 4 of 6 (ASRock)

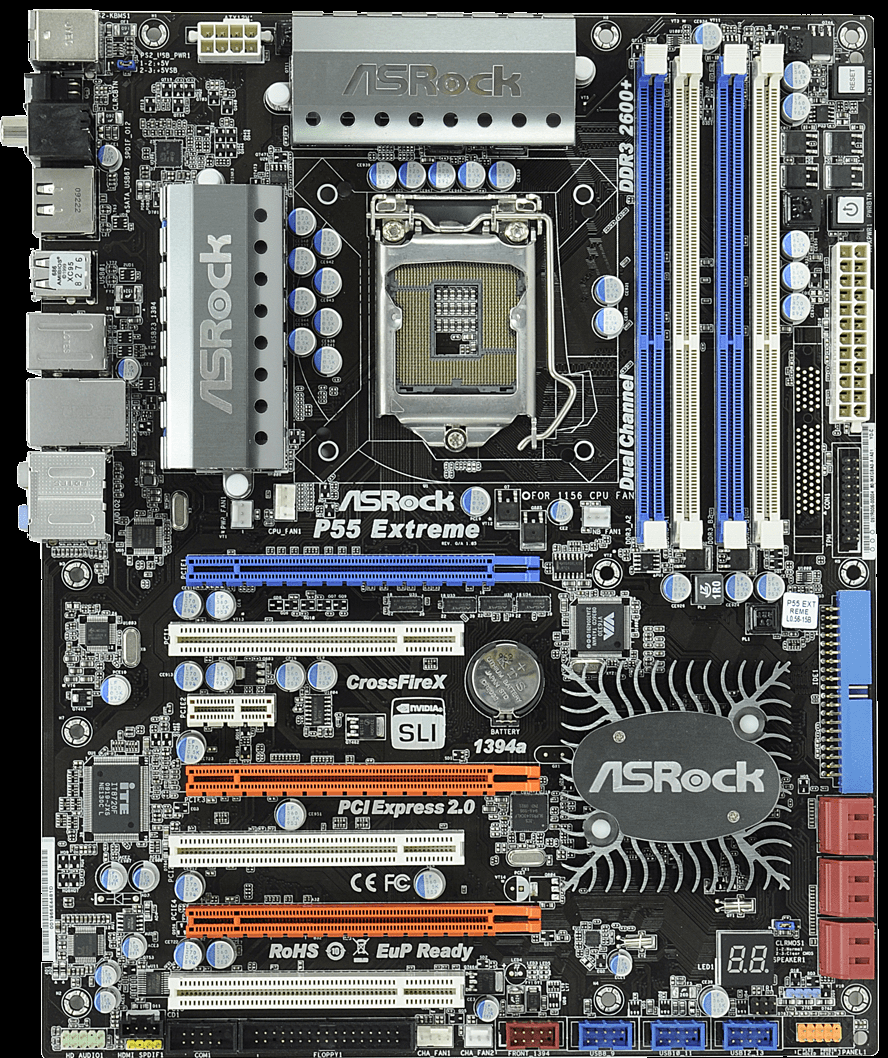

Image 5 of 6 (ASRock)

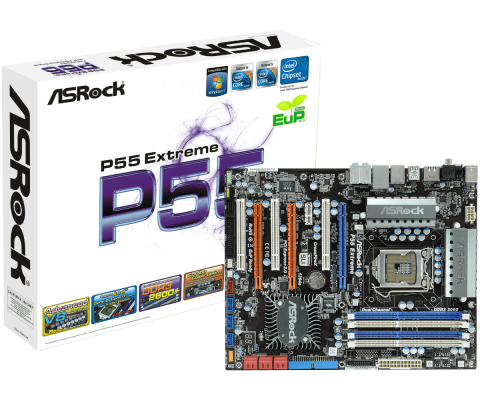

Image 6 of 6 (ASRock)
