ASRock N68-VGS3 FX
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
216mm x 178mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

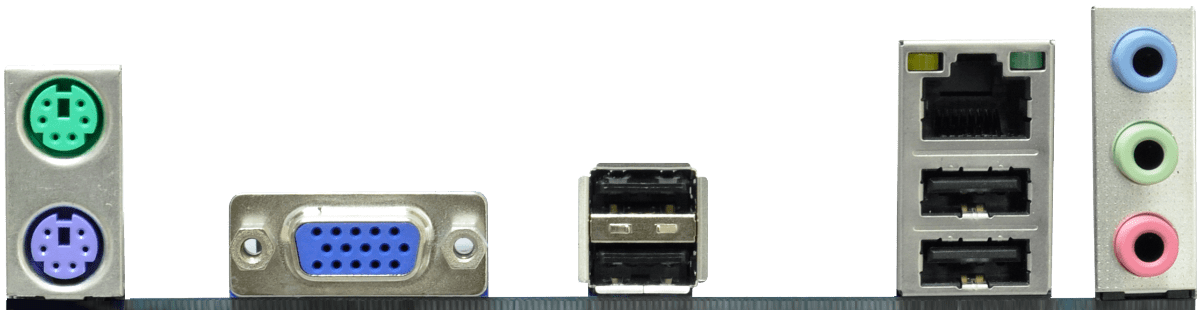

connI/O ports
1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x16
Last updated 2025-10-05T01:20:48Z
Board info score is 9.4/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-161-0000010-00101111-103112-nVidia-AS572161
Note
Core version
080015
BIOS version
Logs
POST string
64-151-0000010-00101111-070412-nVidia-AS572151
Note
Core version
080015
BIOS version
Logs
POST string
64-142-0000010-00101111-060412-nVidia-AS572142
Note
Core version
080015
BIOS version
Logs
POST string
64-122-0000010-00101111-111411-nVidia-AS572122
Note
Core version
080015
BIOS version
Logs
POST string
64-111-0000010-00101111-100711-nVidia-AS572111
Note
Core version
080015
BIOS version
Logs
POST string
64-101-0000010-00101111-092611-nVidia-AS572101
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.10.00.5010
OS support
Windows XP/2k3
Arch
x86
Size
6.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs
Chip
Release date
File
Logs

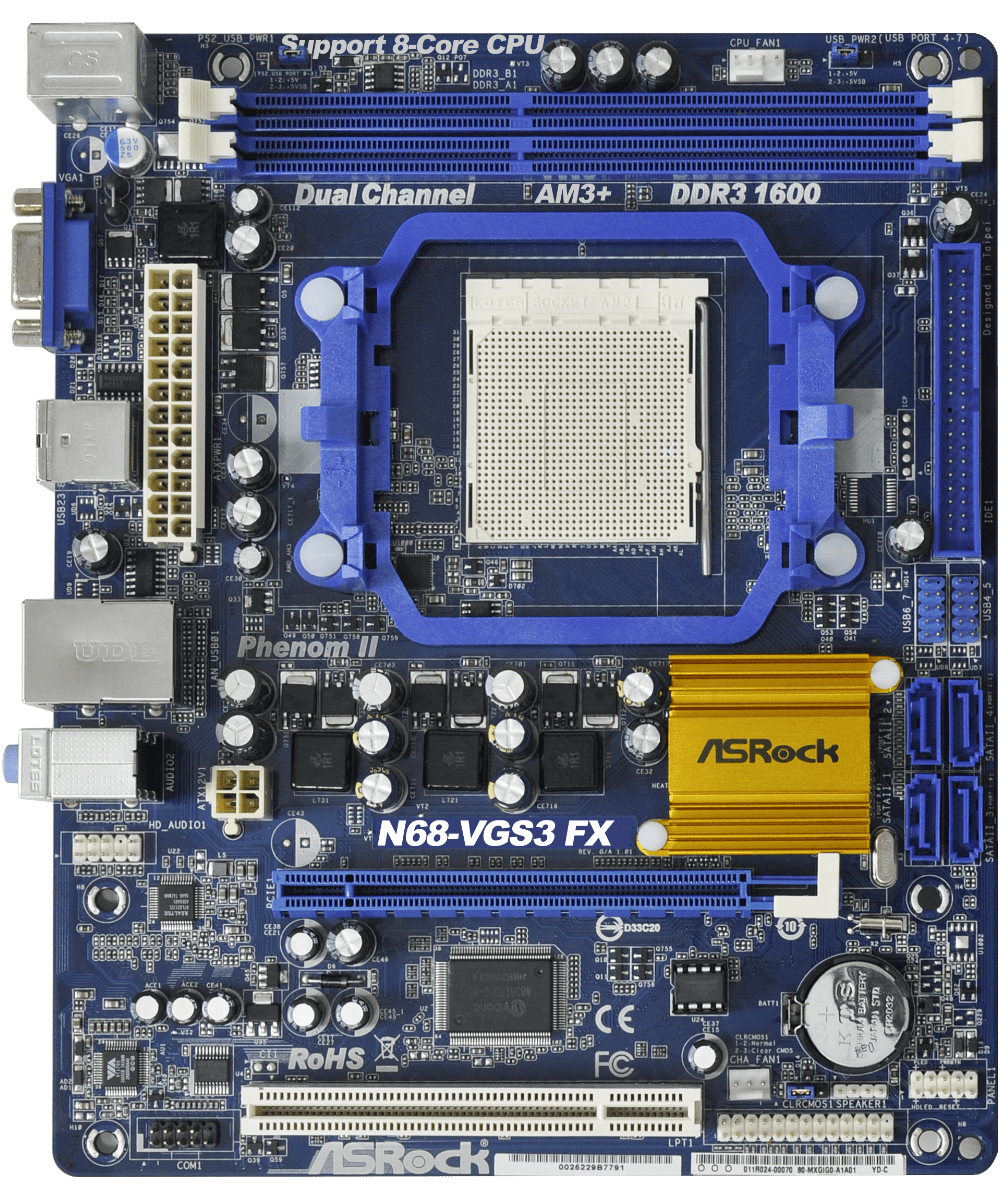

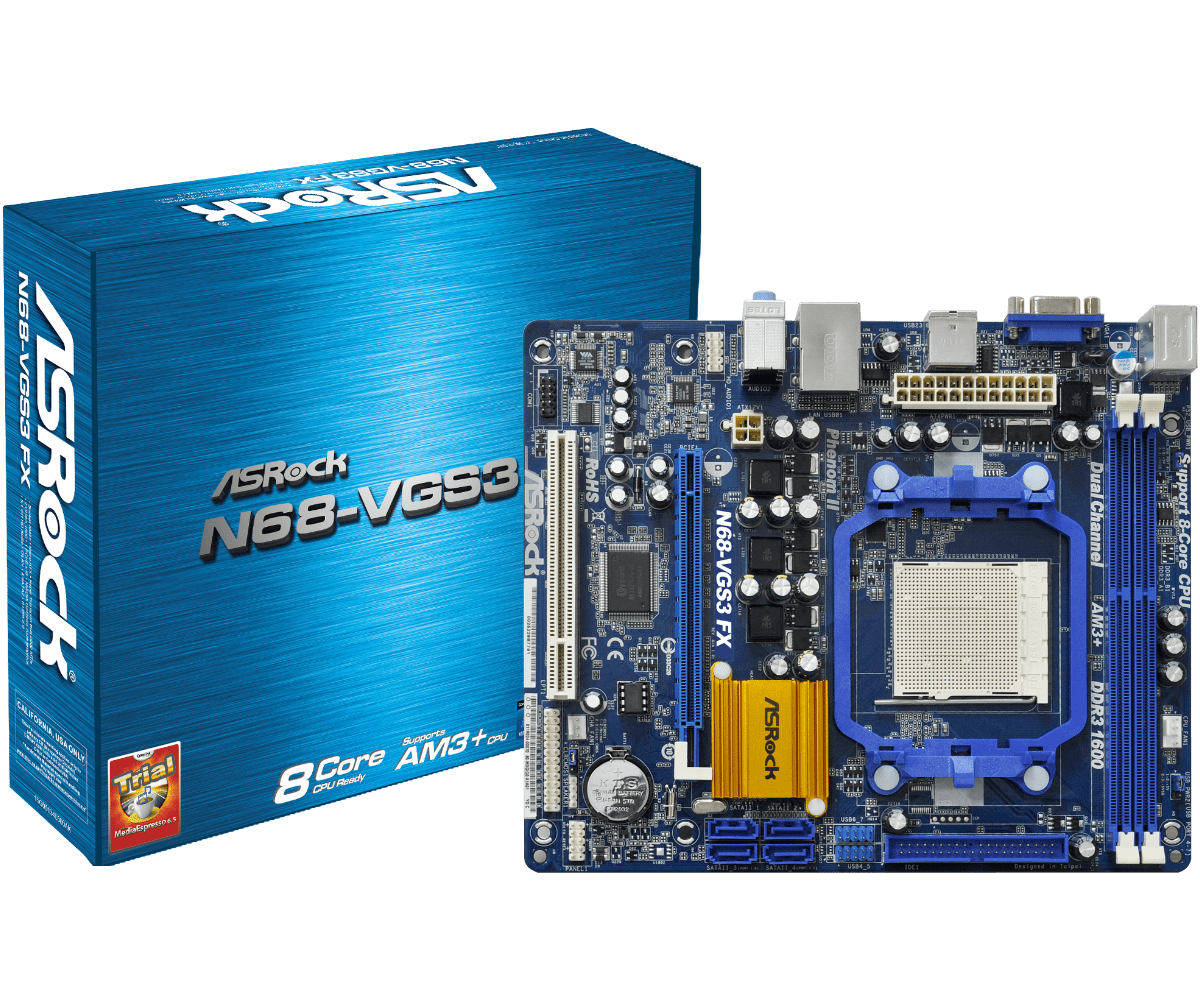

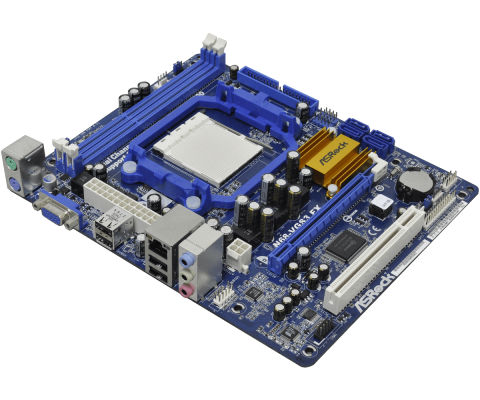

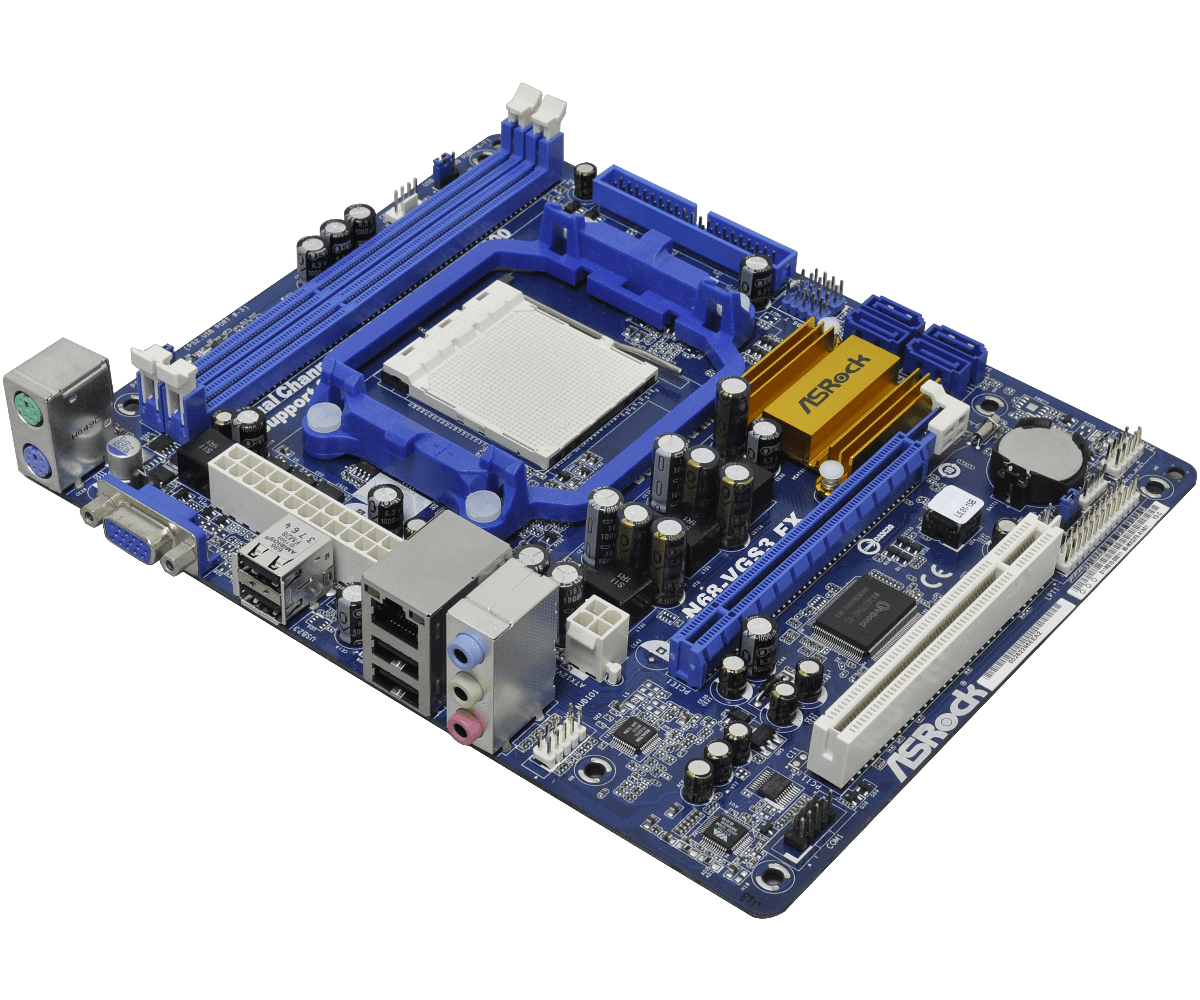

image1 Image 1 of 5 (ASRock)
image2 Image 2 of 5 (ASRock)
image3 Image 3 of 5 (ASRock)
image4 Image 4 of 5 (ASRock)
image5 Image 5 of 5 (ASRock)
