ASRock M3N78D (Rev. 1.01)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 191mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

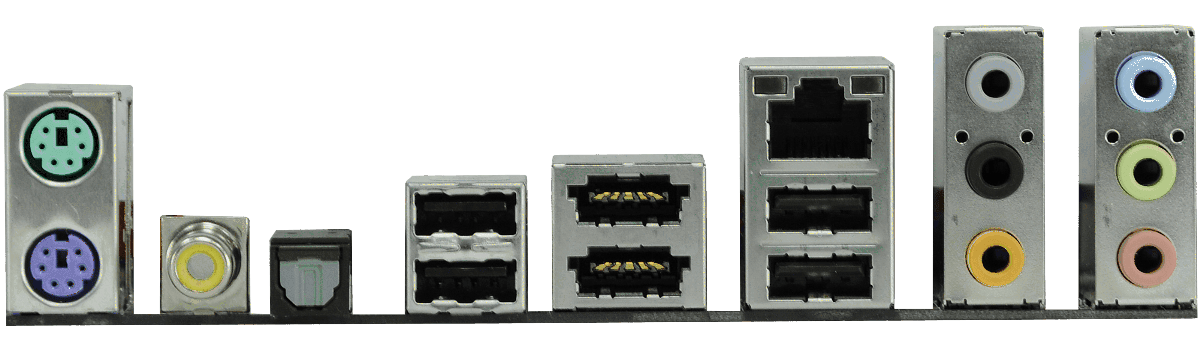

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
3x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
2x
eSATA II
cardExpansion slots
3x
32-bit PCI
3x
PCIe x1
1x
PCIe x16
notes Notes

Supports AM3+ CPUs (AMD FX) with unofficial BIOS.

Last updated 2026-01-04T10:20:55Z
Board info score is 9/10
bios 8 BIOS files available

vendor AMI - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-172-0000010-00101111-090211-nVidia-AS330172
Note
Core version
080015
BIOS version
Logs
POST string
64-162-0000010-00101111-082611-nVidia-AS330162
Note
Core version
080015
BIOS version
Logs
POST string
64-151-0000010-00101111-051710-nVidia-AS330151
Note
Core version
080015
BIOS version
Logs
POST string
64-141-0000010-00101111-042610-nVidia-AS330141
Note
Core version
080015
BIOS version
Logs
POST string
64-136-0000010-00101111-042110-nVidia-AS330136
Note
Core version
080015
BIOS version
Logs
POST string
64-124-0000010-00101111-030210-nVidia-AS330124
Note
Core version
080015
BIOS version
Logs
POST string
64-111-0000010-00101111-011810-nVidia-AS330111
Note
Core version
080015
BIOS version
Logs
POST string
64-181-0000010-00101111-010426-nVidia-AS330181
Note
unofficial bios, AM3+ CPUs support
Core version
080015
BIOS version
Logs
POST string
Note
beta, no file
Core version
080015
BIOS version
L1.61
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs
Chip
Release date
File
Logs

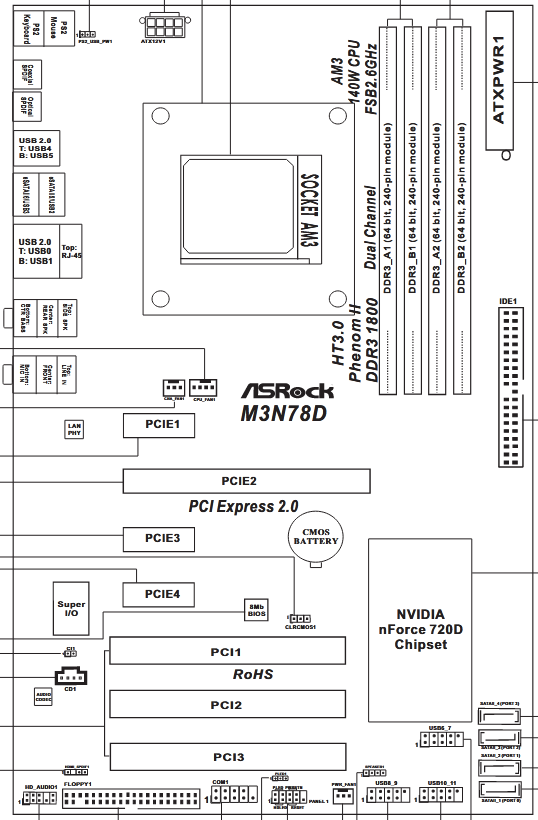

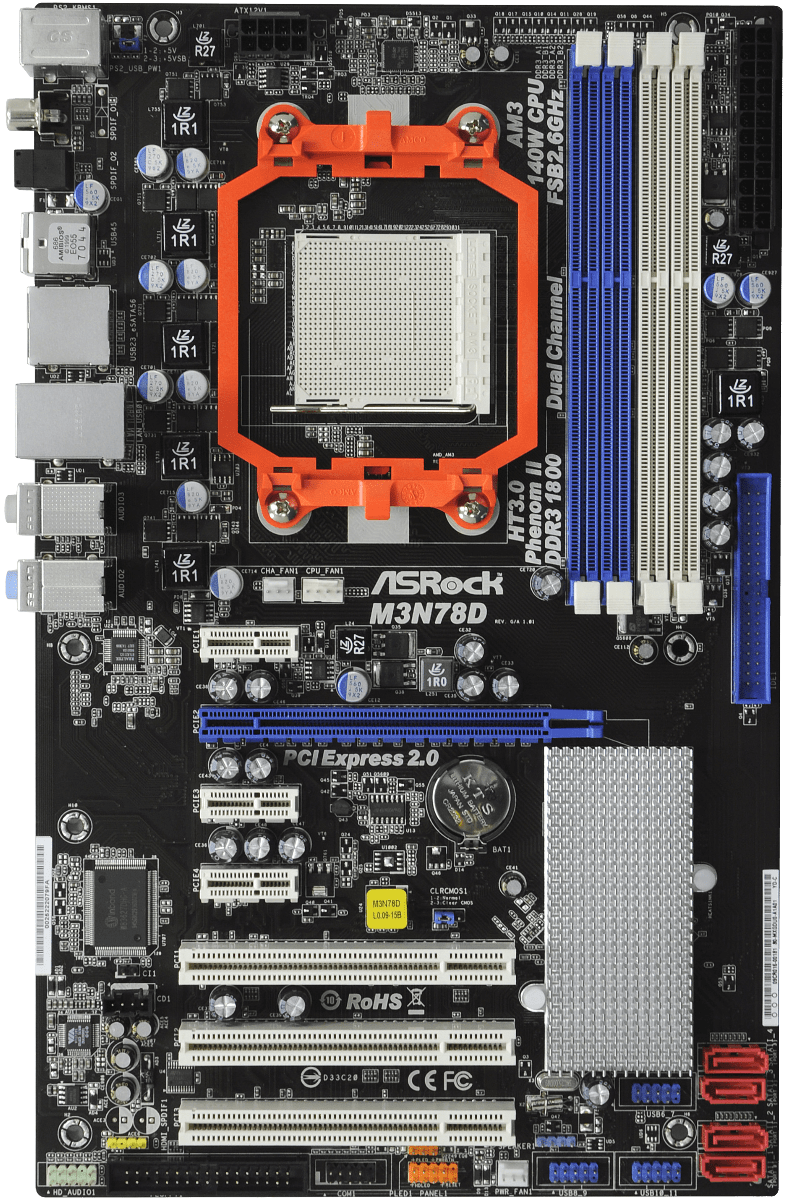

image1 Image 1 of 3 (ASRock)
image2 Image 2 of 3 (ASRock)

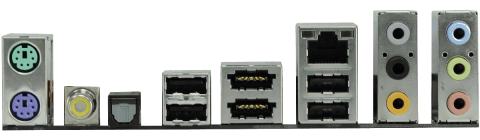

image3 Image 3 of 3 (ASRock)
