ASRock M3N78D FX
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 191mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
3x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
2x
eSATA II
cardExpansion slots
3x
32-bit PCI
3x
PCIe x1
1x
PCIe x16
Last updated 2025-09-29T18:10:02Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-105-0000010-00101111-060512-nVidia-AS617105
Note
Core version
080015
BIOS version
Logs
POST string
64-012-0000010-00101111-121611-nVidia-AS617012
Note
Core version
080015
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 5 (ASRock)
image2 Image 2 of 5 (ASRock)

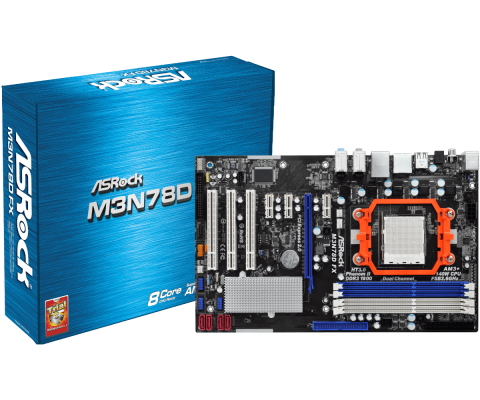

image3 Image 3 of 5 (ASRock)

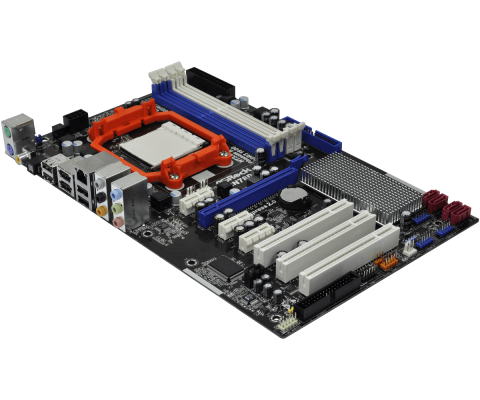

image4 Image 4 of 5 (ASRock)

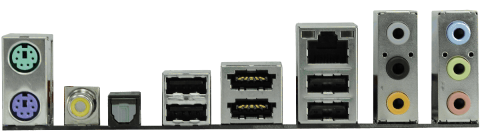

image5 Image 5 of 5 (ASRock)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
