ASRock K8A780LM
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244 mm x 198 mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
DVI
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-07-25T16:54:15Z
Board info score is 9/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-106-0000010-00101111-031611-AMD-AS313106
Note
Instant Flash
Core version
080015
BIOS version
Logs
POST string
64-106-0000010-00101111-031611-AMD-AS313106
Note
DOS
Core version
080015
BIOS version
Logs
POST string
64-106-0000010-00101111-031611-AMD-AS313106
Note
Windows flash
Core version
080015
BIOS version
Logs
POST string
64-007-0000010-00101111-112409-AMD-AS313007
Note
DOS
Core version
080015
BIOS version
Logs
POST string
64-007-0000010-00101111-112409-AMD-AS313007
Note
Windows flash
Core version
080015
BIOS version
Logs
drv No drivers available

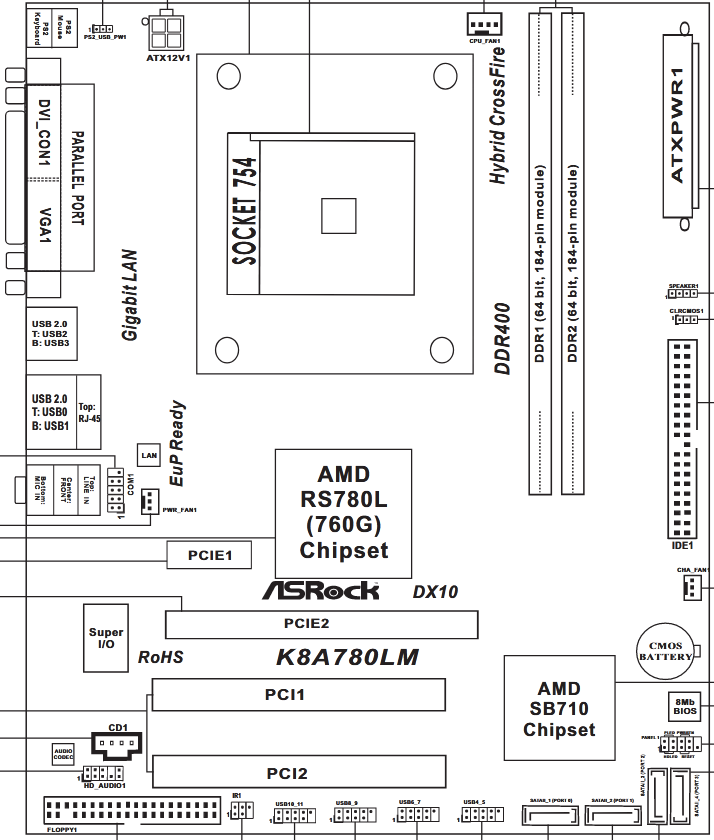

image1 Image 1 of 3 (ASRock)

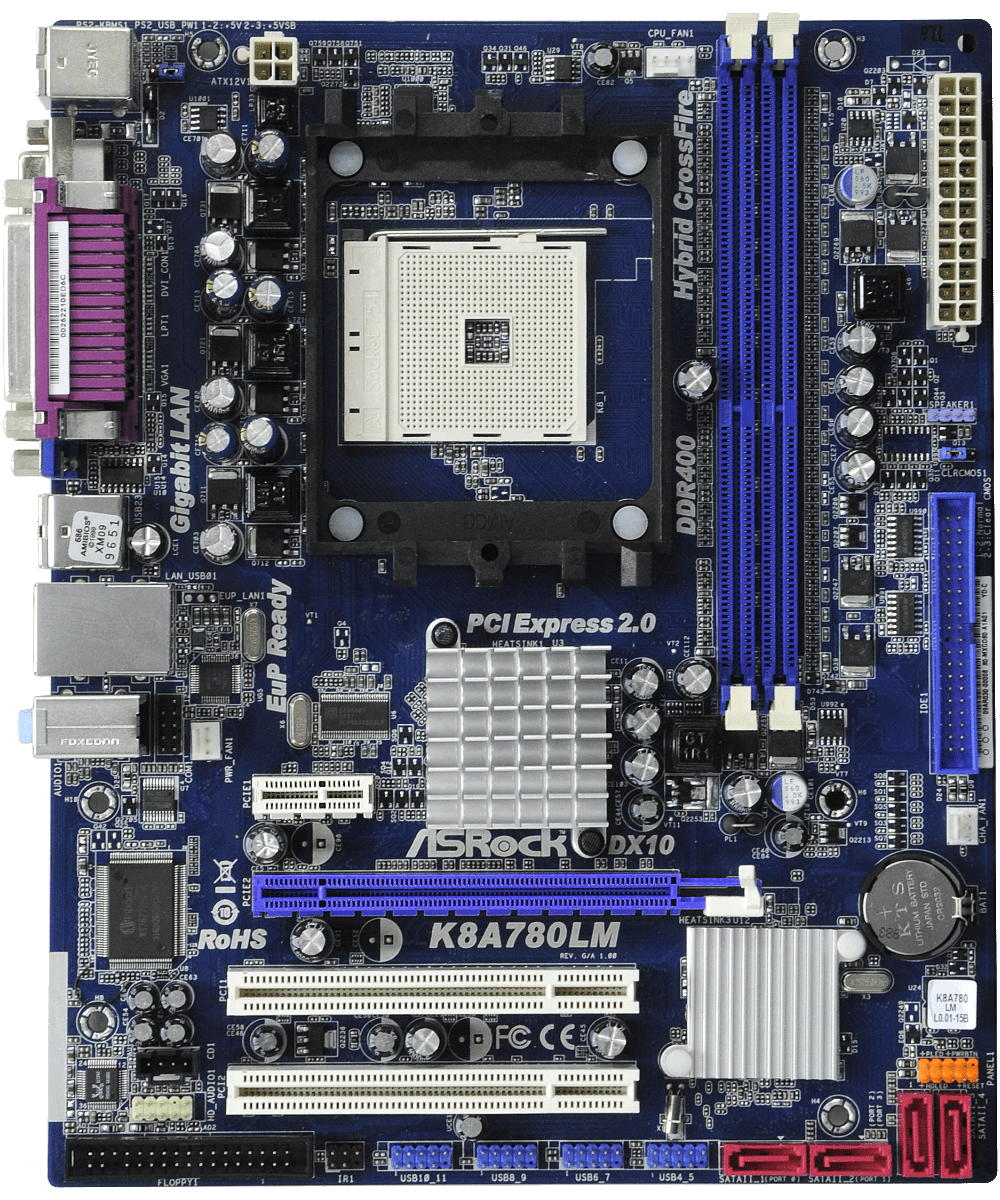

image2 Image 2 of 3 (ASRock)

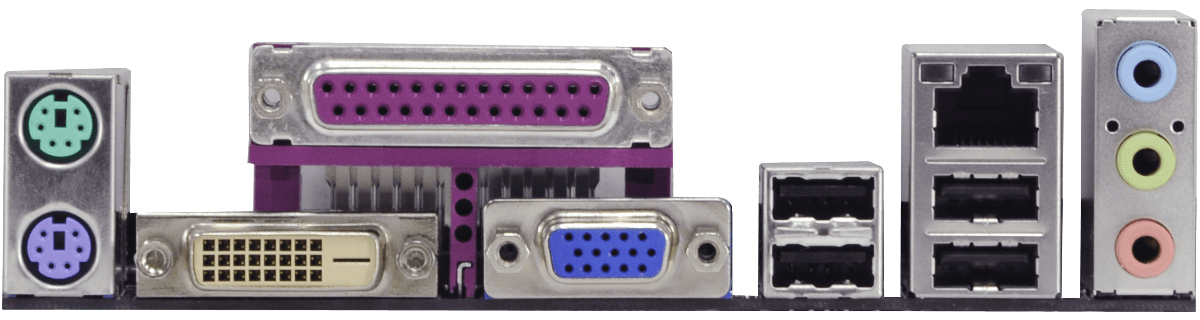

image3 Image 3 of 3 (ASRock)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
