ASRock K7S41GX (Rev. 1.03)
Chipset
Socket
FSB speeds 200MHz266MHz333MHz
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 198mm
Max VRAM size64MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
Serial
6x
USB 2.0
1x
VGA
Expansion slots1x
1.5V AGP
2x
32-bit PCI
1x
AMR
Last updated 2025-07-30T12:52:48Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> Network
-> Super I/O
CPU family support
14 BIOS files available
AMI - 14 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-P280-001368-00101111-040201-SIS
Note
Latest BIOS
Core version
040201
BIOS version
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.73
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.93
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

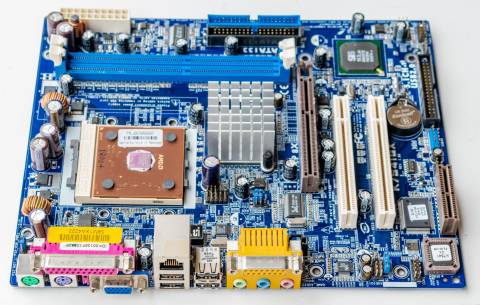

Image 1 of 6 (ASRock)

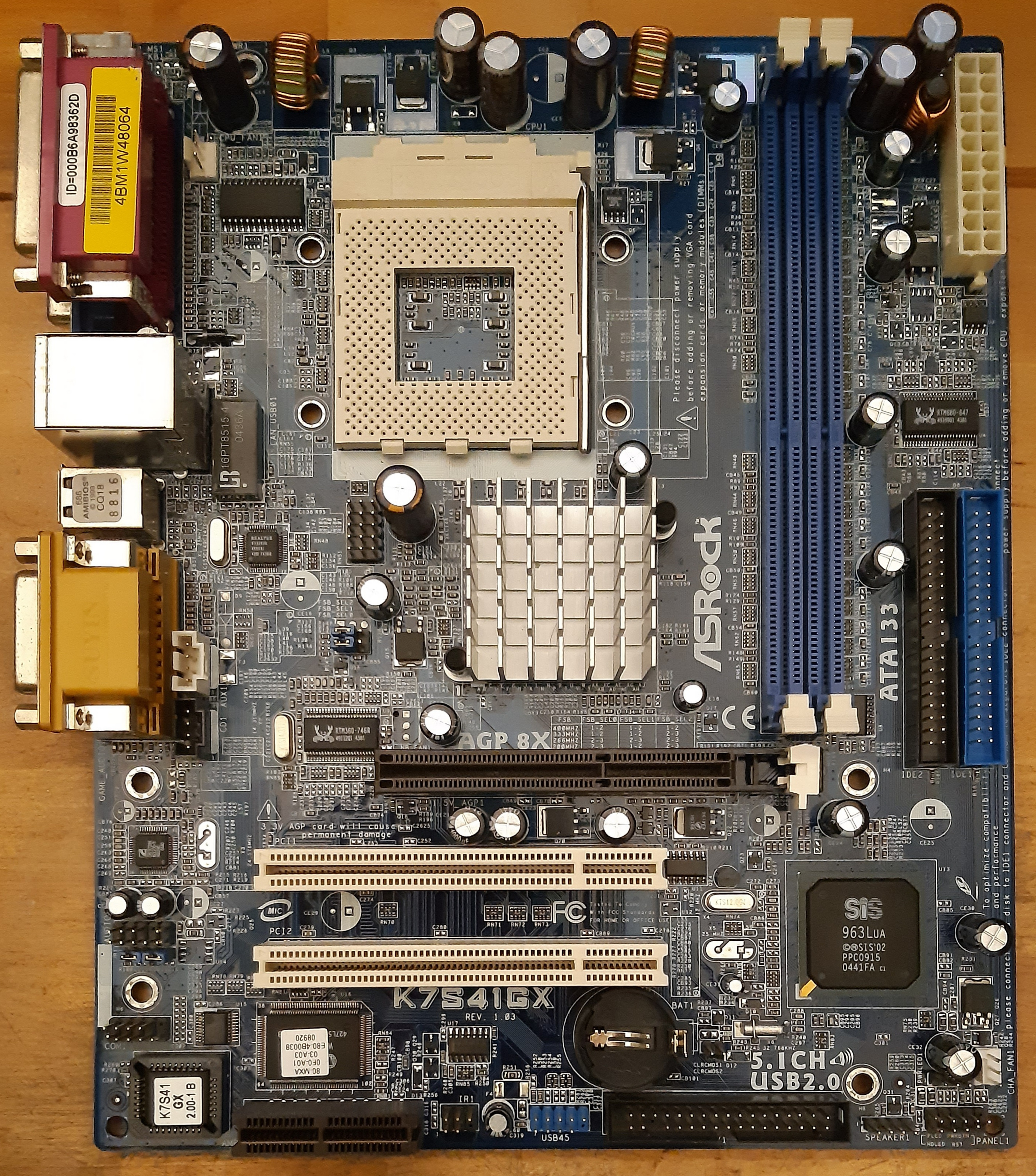

Image 2 of 6 (Motherboard Continuum)
Image 3 of 6 (Carlos S. M.)

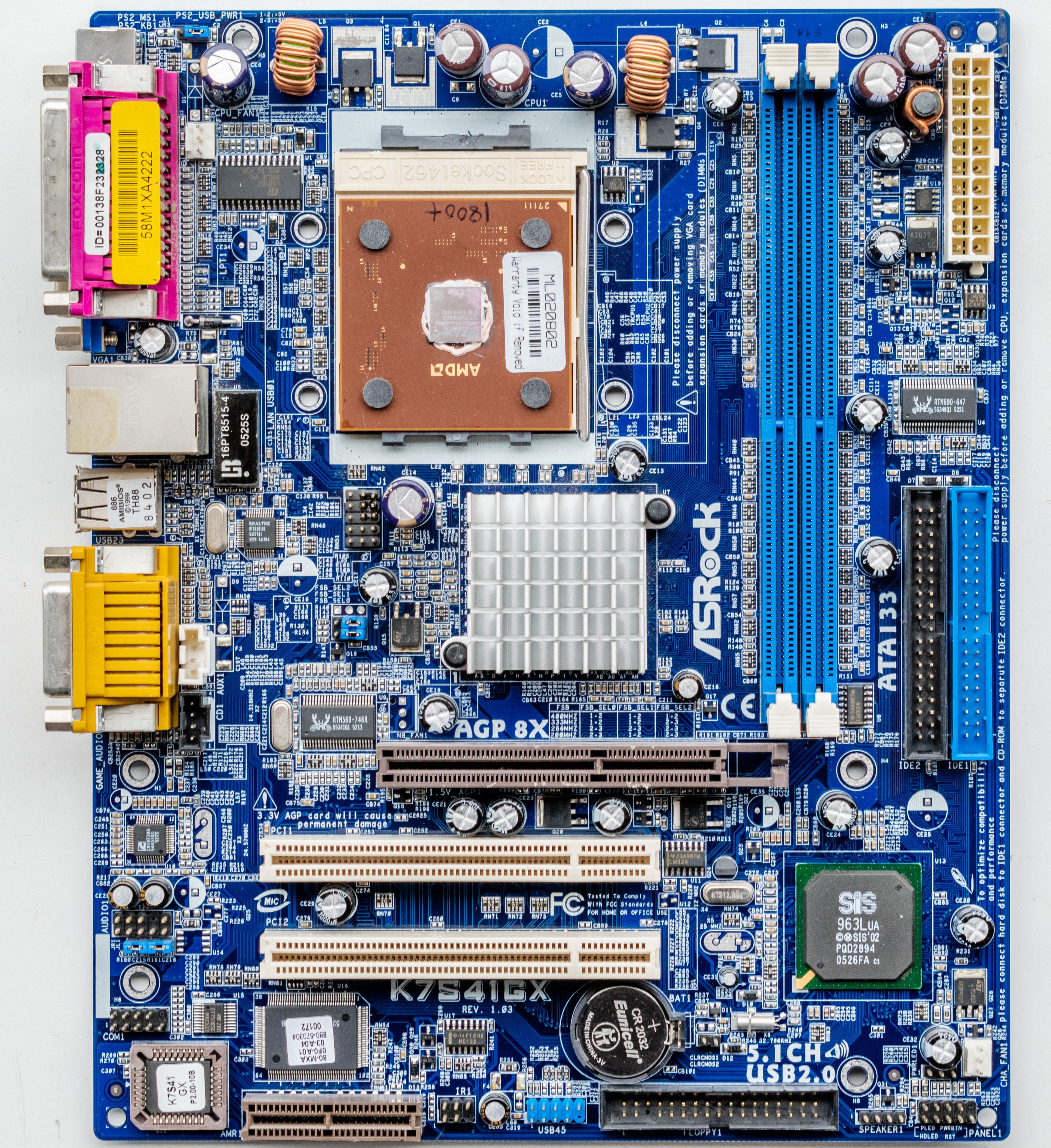

Image 4 of 6 (Motherboard Continuum)

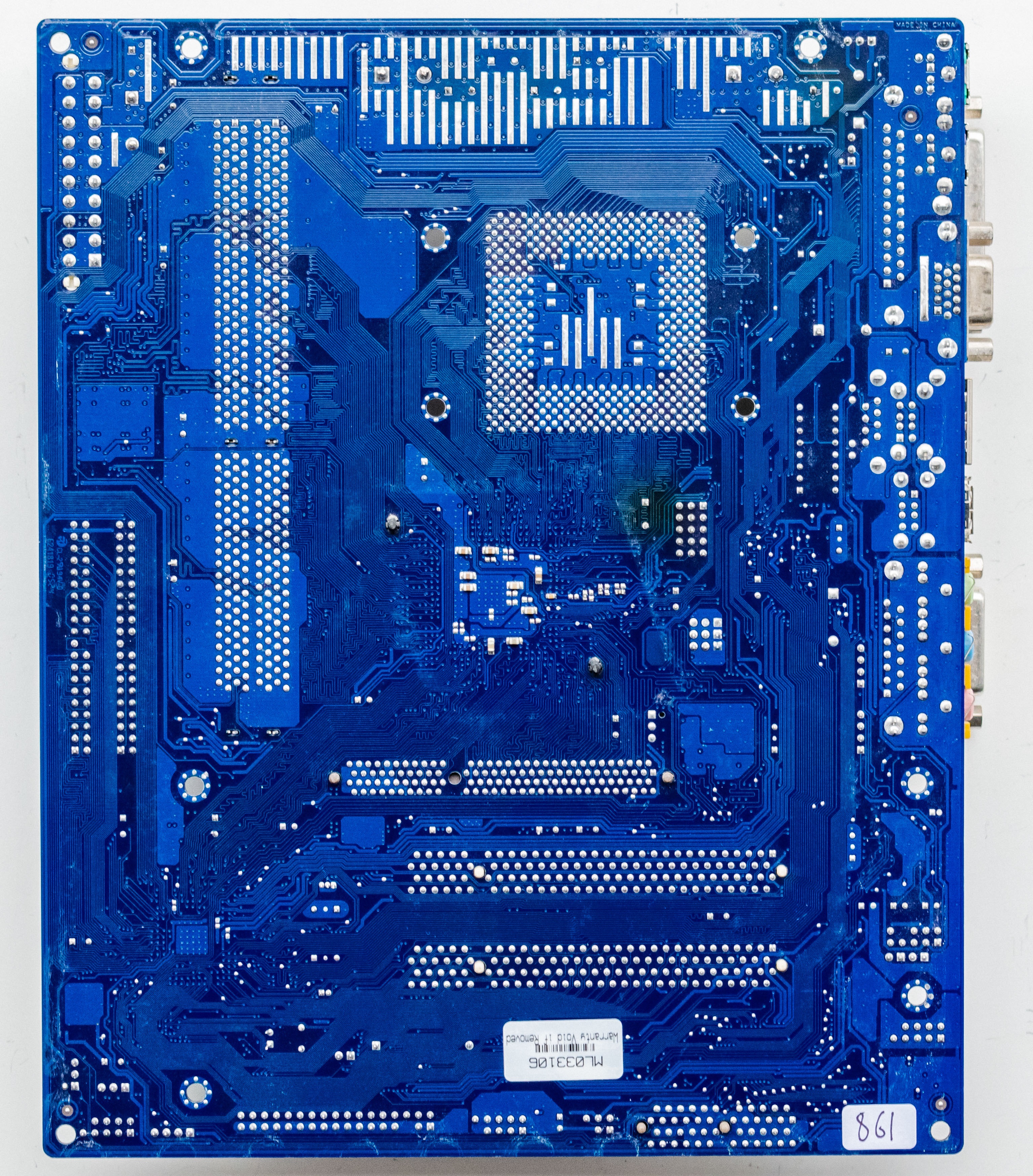

Image 5 of 6 (Motherboard Continuum)
Image 6 of 6 (ASRock)
