ASRock K7S41 (Rev. 1.03)
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz333MHz400MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 198mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
2x
32-bit PCI
1x
AMR
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

  • Unstable or No Boot with Modern PSU

This motherboard may not P.O.S.T or may be unstable with a modern power supply with low amperage 5V Rail. Using a older high 5V amperage rail is recommended

notes Notes

Uses a Realtek RTL8201BL Fast Ethernet PHY controller.

Last updated 2025-07-11T12:12:14Z
Board info score is 9/10
bios 15 BIOS files available

vendor AMI - 15 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-P260-001368-00101111-040201-SIS
Note
Latest BIOS
Core version
040201
BIOS version
Logs
POST string
62-P250-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P240-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P230-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P210-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P200-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P190-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P180-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P170-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P160-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P150-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P140-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P120-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P110-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
POST string
62-P100-001368-00101111-040201-SIS
Note
Core version
040201
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.73
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.93
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

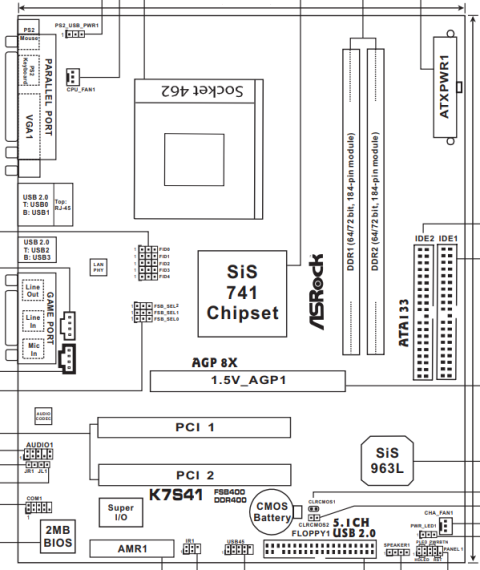

image1 Image 1 of 3 (ASRock)

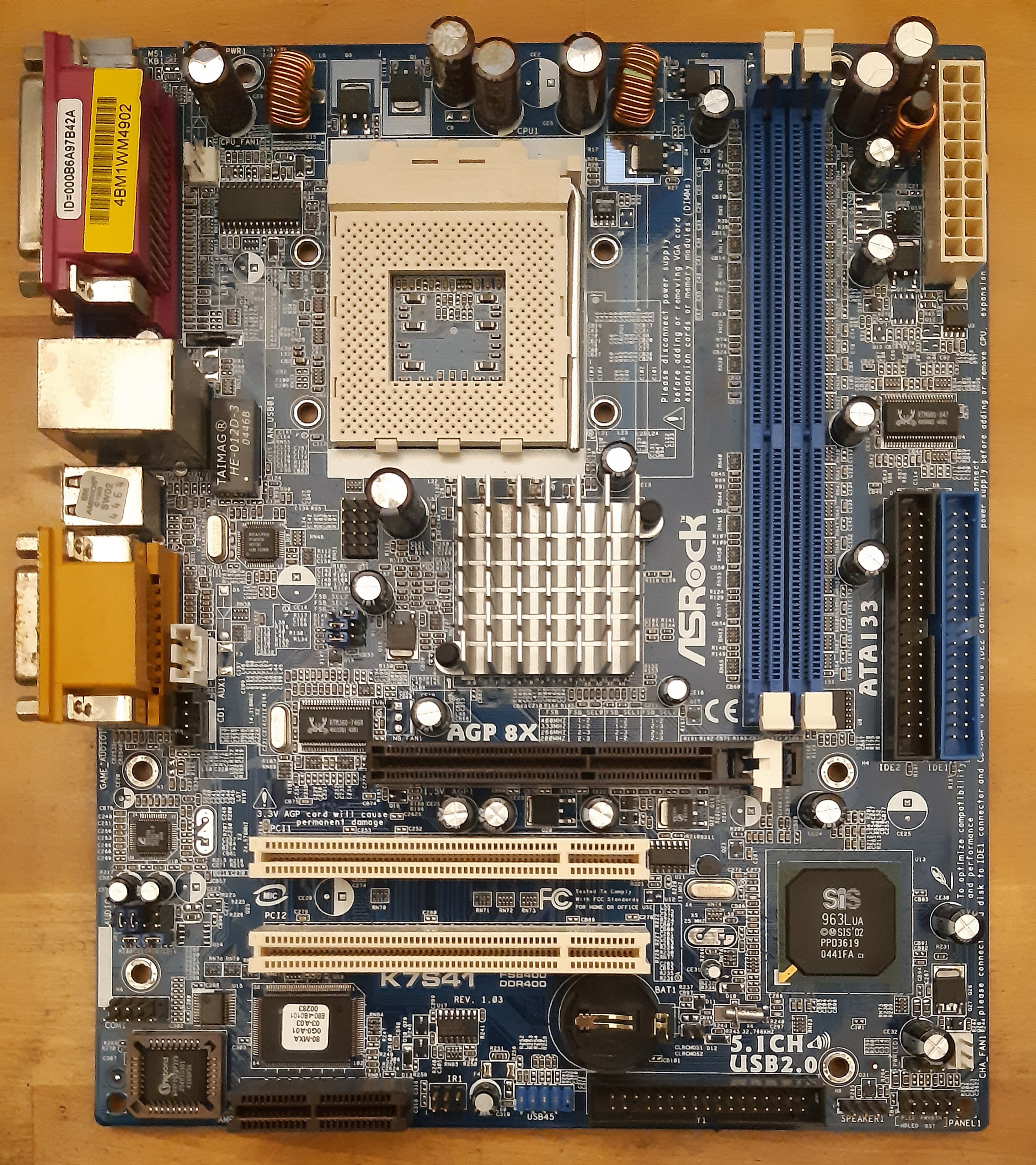

image2 Image 2 of 3 (Carlos S. M.)

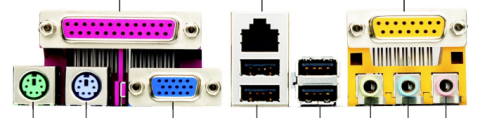

image3 Image 3 of 3 (ASRock)
