ASRock FM2A55 Pro+ (Rev. 1.01)
Logs
chipChipset
cpuSockets
Socket FM2 (PGA904) Socket FM2+ (PGA906)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
6x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
3x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-12-15T14:11:03Z
Board info score is 7.9/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Beta Version
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-08-03
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2015-01
File
Logs

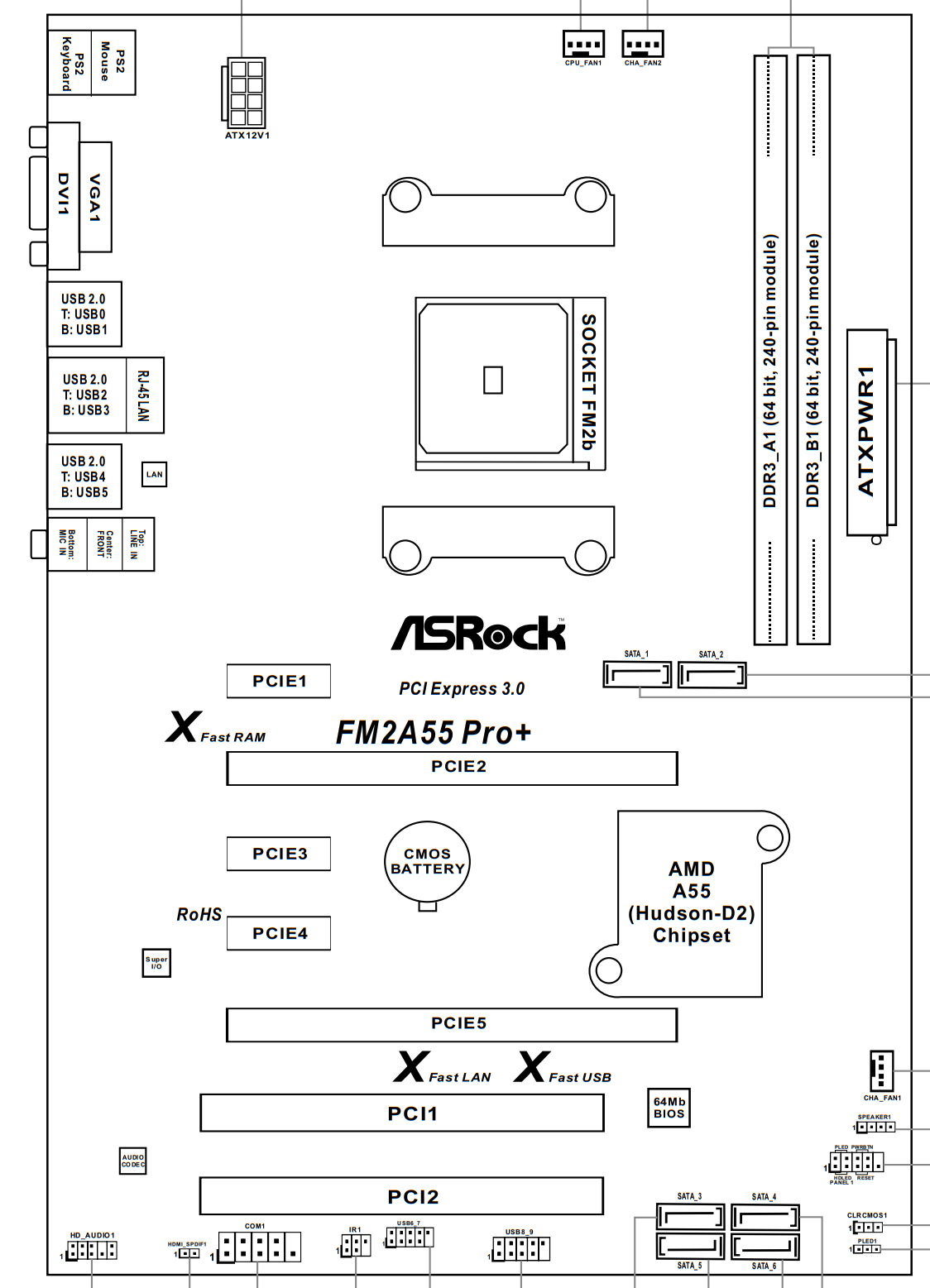

image1 Image 1 of 5 (ASRock)

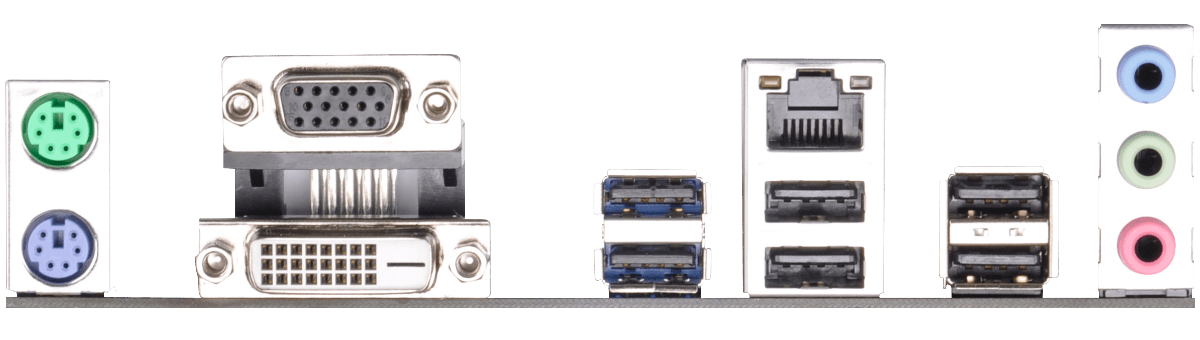

image2 Image 2 of 5 (ASRock)

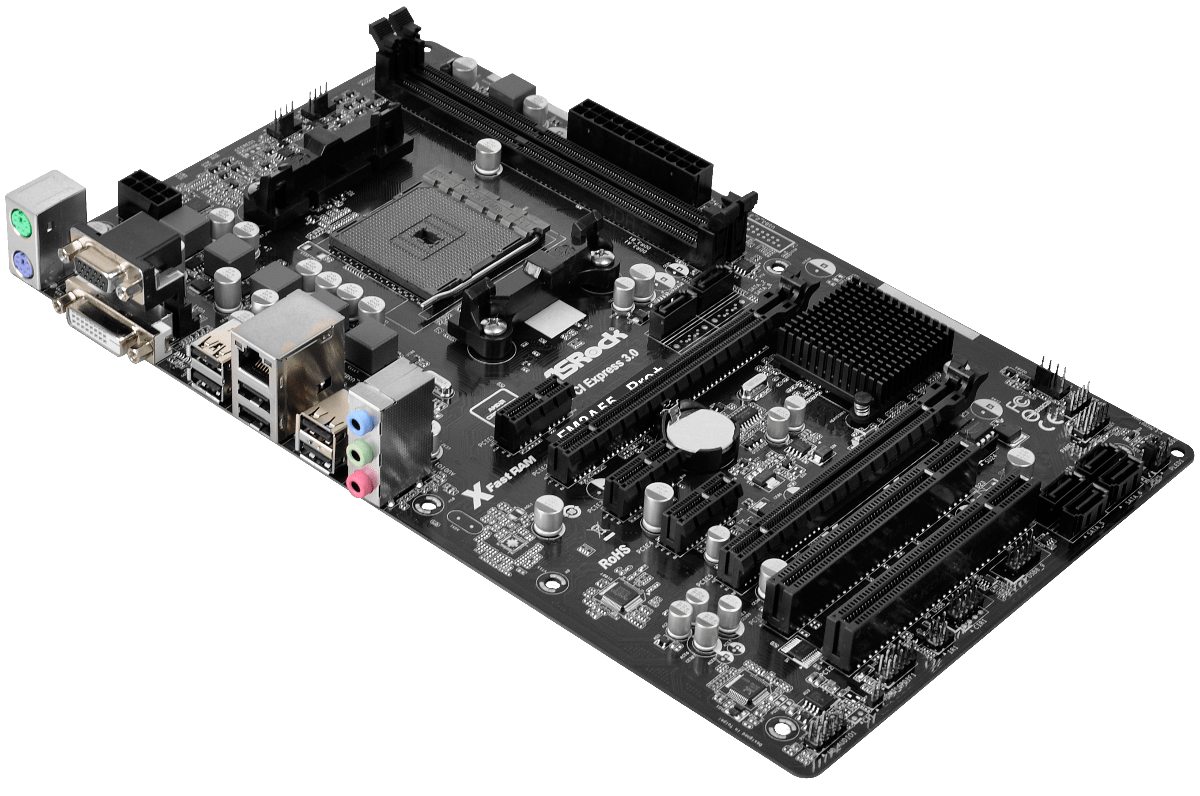

image3 Image 3 of 5 (ASRock)

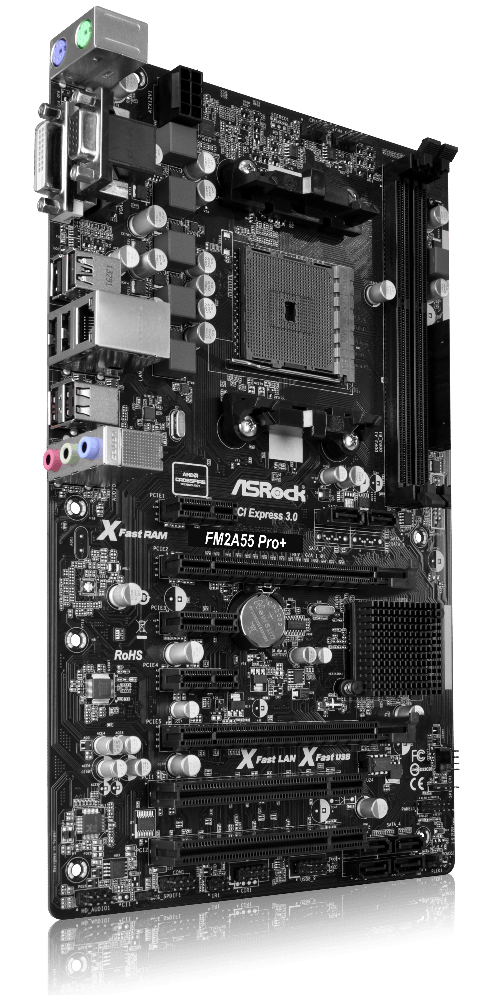

image4 Image 4 of 5 (ASRock)

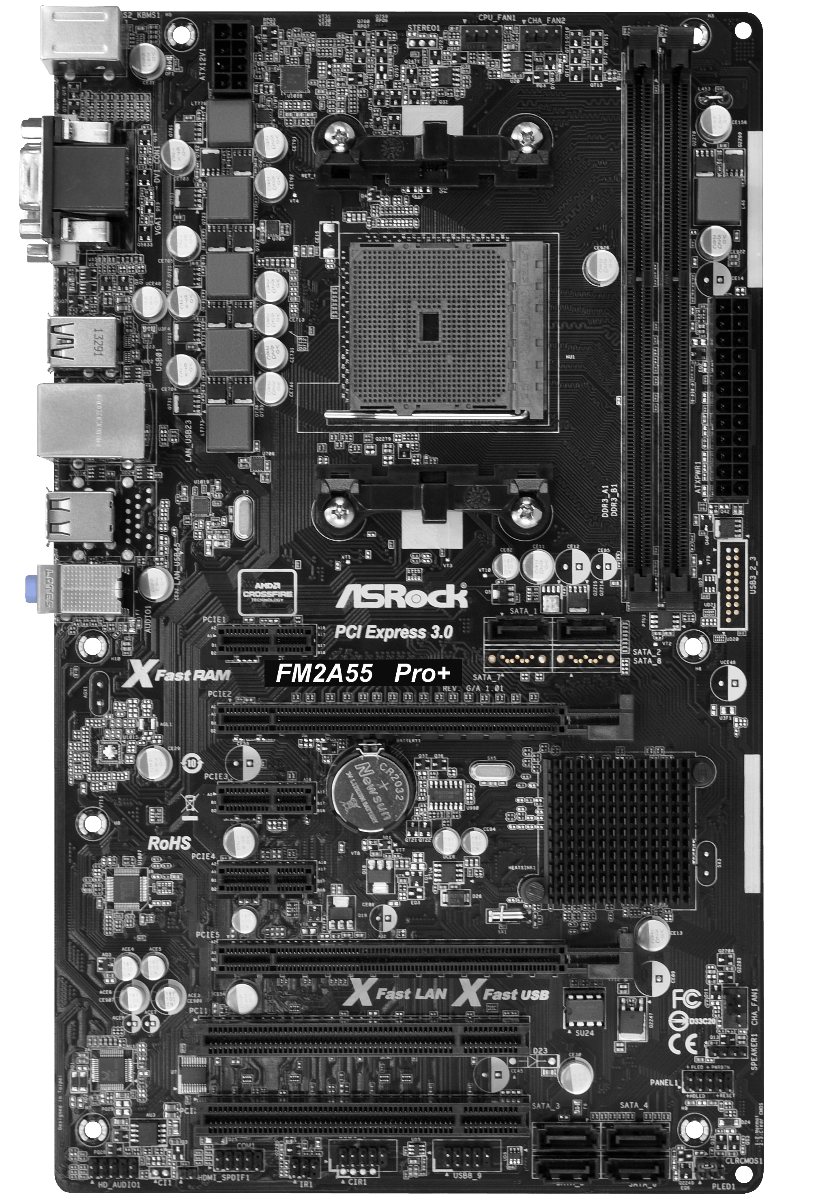

image5 Image 5 of 5 (ASRock)
