ASRock ALiveSATA2-GLAN (Rev. 1.01)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 203mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
2x
SATA II
1x
Serial
8x
USB 2.0
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
notes Notes

Supports AM2+ and AM3 CPUs with beta BIOS.

Due to a hardware bug in the VIA VT8237A southbridge, most of SATA II and newer drives will not be detected.

To work around this issue, use the SATA II ports provided by the JMicron JMB363 chip instead.

Last updated 2025-12-06T20:04:50Z
Board info score is 9.4/10
bios 16 BIOS files available

vendor AMI - 18 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-254-0000010-00101111-072407-VIA-AS2GL254
Note
Latest official BIOS
Core version
080013
BIOS version
Logs
POST string
63-241-0000010-00101111-050407-VIA-AS2GL241
Note
Core version
080013
BIOS version
Logs
POST string
63-231-0000010-00101111-032807-VIA-AS2GL231
Note
Core version
080013
BIOS version
Logs
POST string
63-223-0000010-00101111-011207-VIA-AS2GL223
Note
Core version
080013
BIOS version
Logs
POST string
63-211-0000010-00101111-122006-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-210-0000010-00101111-120706-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-194-0000010-00101111-112106-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-172-0000010-00101111-101206-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-164-0000010-00101111-091906-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-142-0000010-00101111-082306-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-140-0000010-00101111-081706-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-120-0000010-00101111-080406-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-102-0000010-00101111-071006-VIA-AS2GL000
Note
Core version
080013
BIOS version
Logs
POST string
63-261-0000010-00101111-090108-VIA-AS2GL261
Note
beta, AM2+ CPUs support
Core version
080013
BIOS version
Logs
POST string
63-261-0000010-00101111-041709-VIA-AS2GL261
Note
beta, AM2+ and AM3 CPUs support
Core version
080013
BIOS version
Logs
POST string
63-261-0000010-00101111-120108-VIA-AS2GL261
Note
beta, AM2+ CPUs support
Core version
080013
BIOS version
Logs
POST string
Note
beta, no file
Core version
080013
BIOS version
L2.61 REV:5
Logs
POST string
Note
beta, no file
Core version
080013
BIOS version
L2.61 REV:3
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
6.10C
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
Size
12MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

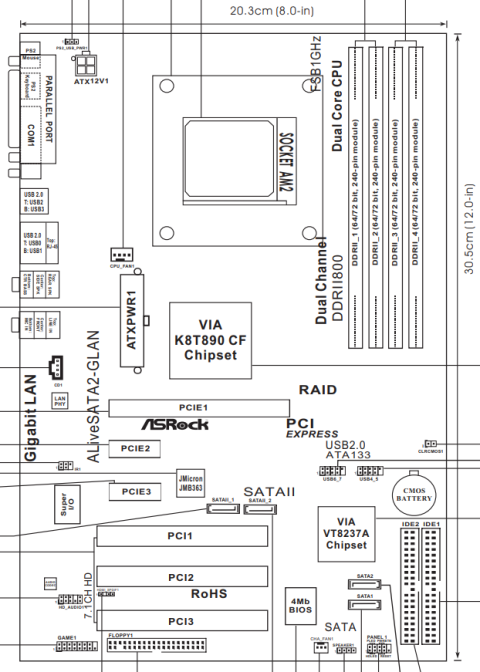

image1 Image 1 of 5 (ASRock)

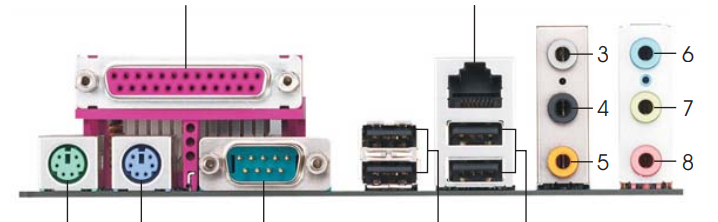

image2 Image 2 of 5 (iXBT)

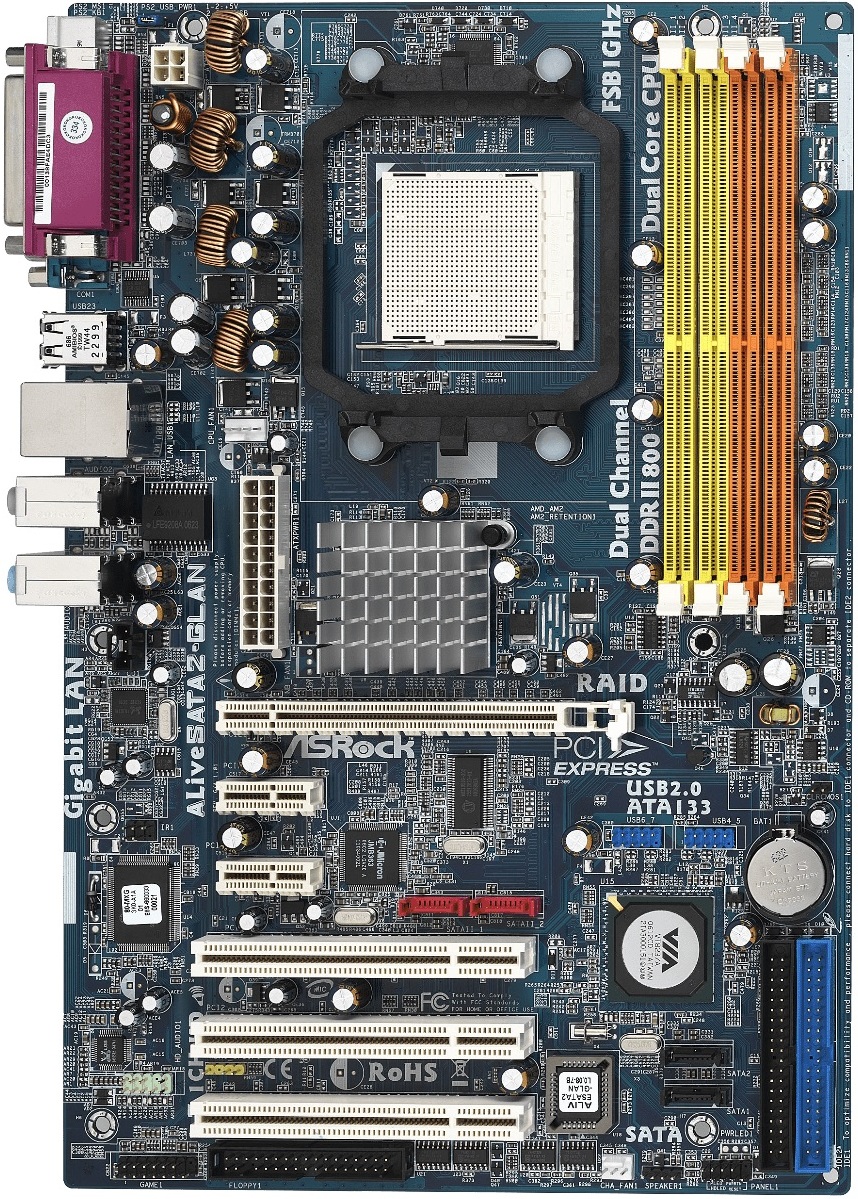

image3 Image 3 of 5 (ASRock)
image4 Image 4 of 5 (iXBT)

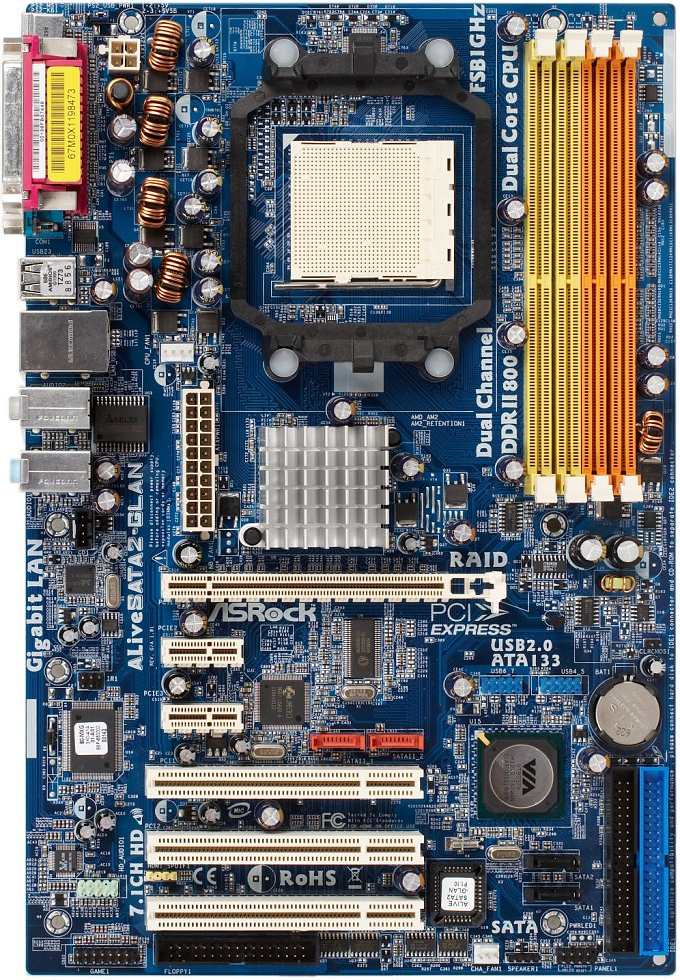

image5 Image 5 of 5 (ASRock)
