ASRock 960GM-S3 FX
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 183mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-10-05T01:34:50Z
Board info score is 9.4/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-141-0000010-00101111-021913-AMD-AS580141
Note
Core version
080015
BIOS version
Logs
POST string
64-122-0000010-00101111-052112-AMD-AS580122
Note
Core version
080015
BIOS version
Logs
POST string
64-115-0000010-00101111-032712-AMD-AS580115
Note
Core version
080015
BIOS version
Logs
POST string
64-101-0000010-00101111-092211-AMD-AS580101
Note
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename

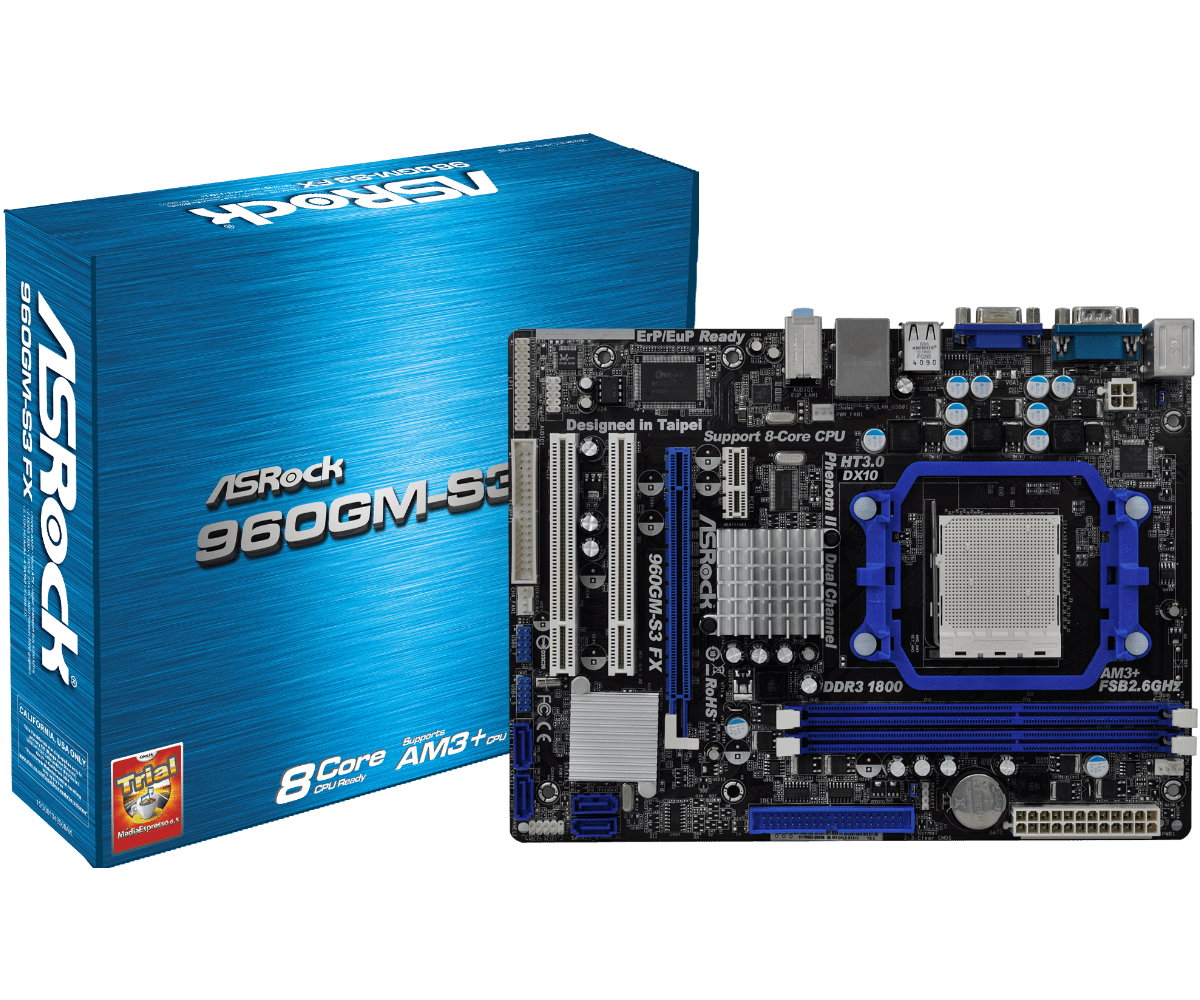

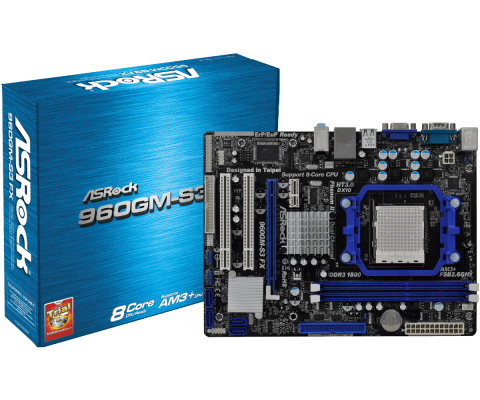

image1 Image 1 of 5 (ASRock)

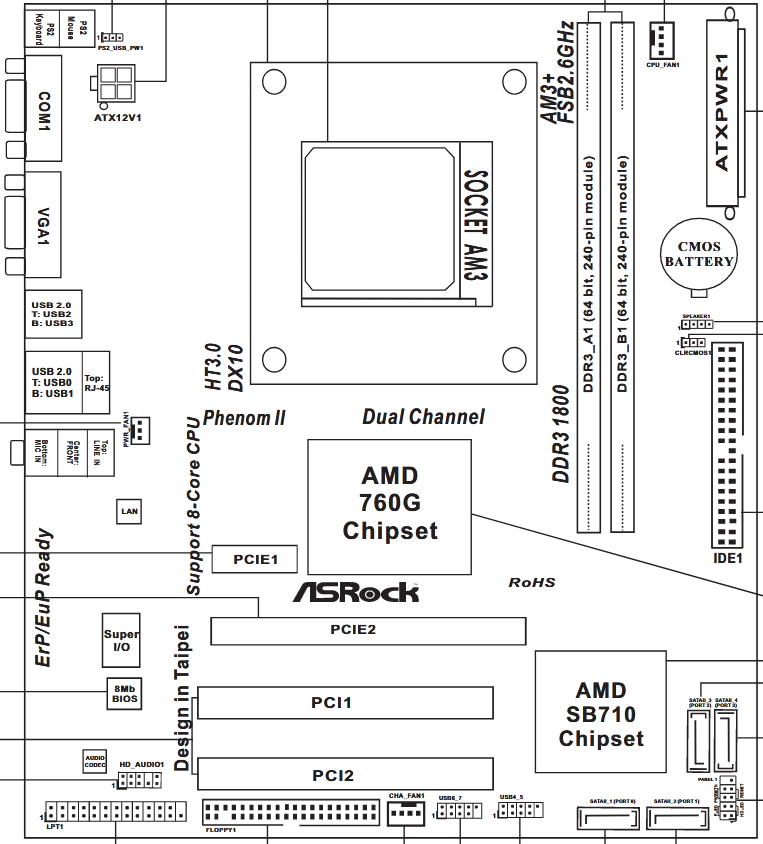

image2 Image 2 of 5 (ASRock)

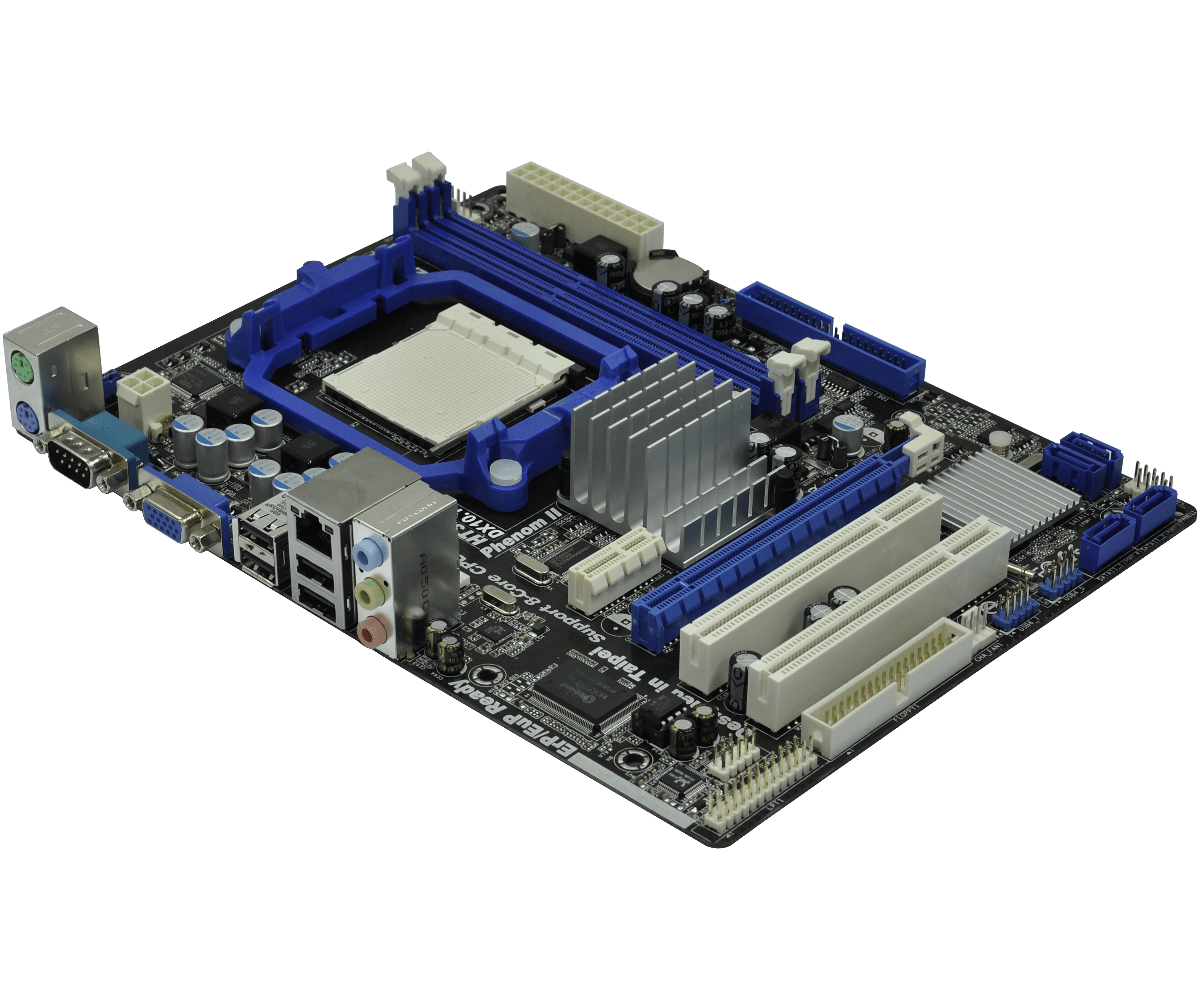

image3 Image 3 of 5 (ASRock)

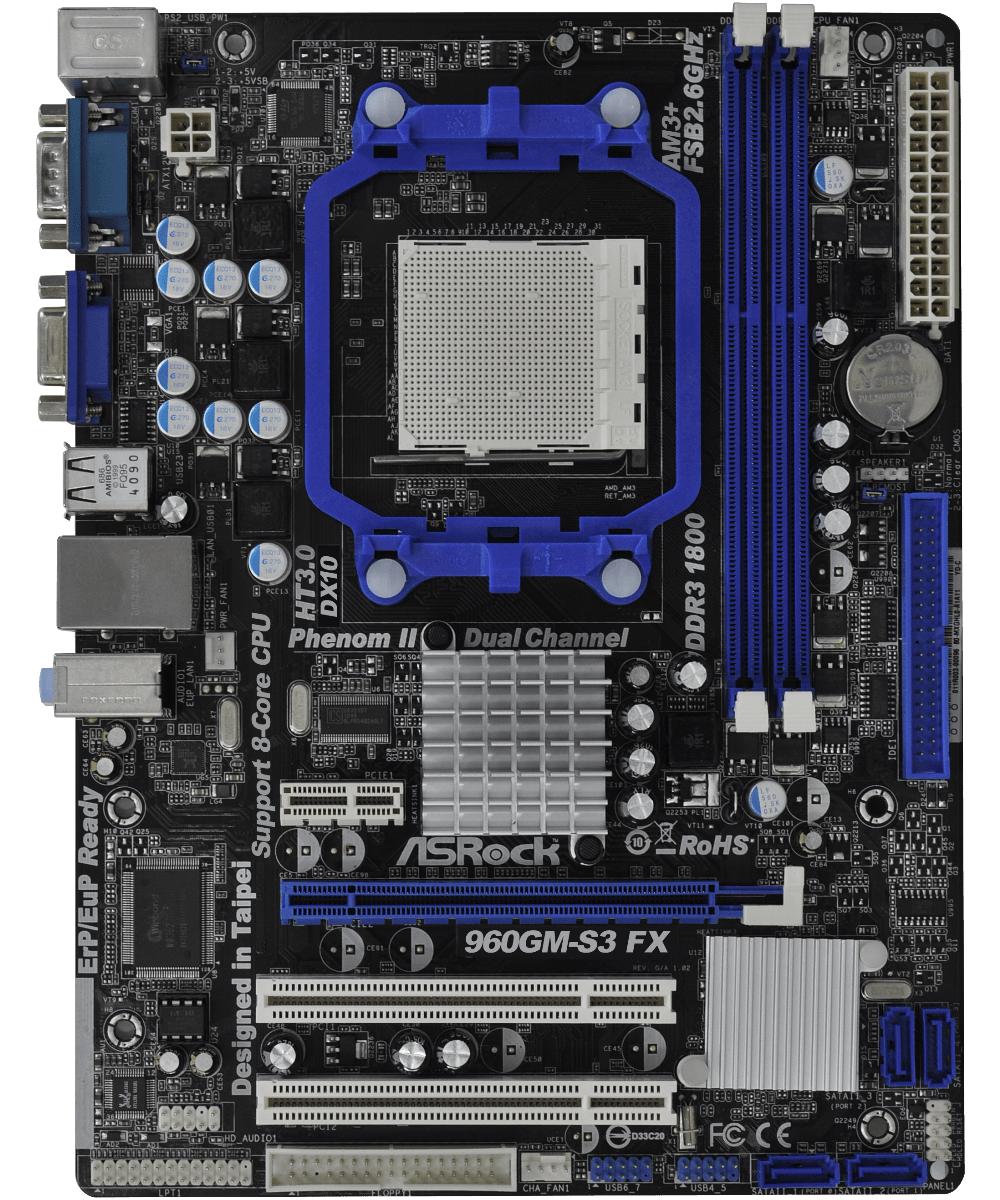

image4 Image 4 of 5 (ASRock)

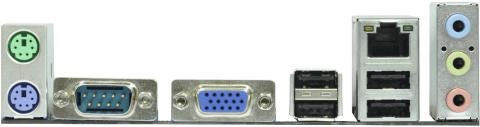

image5 Image 5 of 5 (ASRock)
