ASRock 939VM890 (Unreleased)
Logs
chipChipset
cpuSocket
Socket 939 (mPGA939)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
ASRock HDMR
1x
PCIe x1
1x
PCIe x16
wrench Known issues
  • Engineering Sample

This is an engineering sample, not a final product, for testing and evaluation.

  1. Compatibility: Limited compatibility with hardware, software, or peripherals.
  2. Stability: Potential for crashes, freezes, or unexpected behavior.
  3. Performance: Differences in memory bandwidth, data transfer rates, or overall system performance.
  4. Feature Limitations: Missing or incomplete features compared to the final product.
  5. Engineering Features: Additional options or settings not found in commercial versions.
notes Notes

Never released. Optional SATA II port.

Last updated 2025-06-05T15:41:32Z
Board info score is 6.1/10
bios 0 BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.49V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.4MB
Filename
Name
Version
5.24A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
15.56.68.05
OS support
Windows 9x
Arch
Size
6.2MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
doc No board documents available

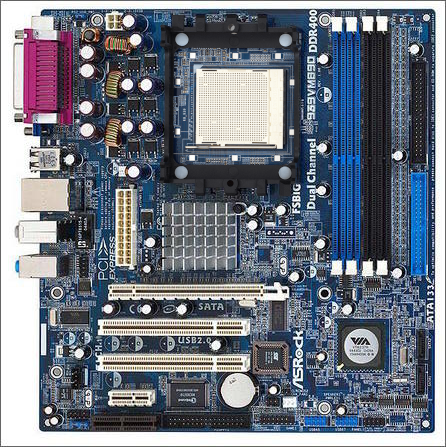

image1 Image 1 of 2 (Wladimirek94)
image2 Image 2 of 2 (ASRock)
