ASRock 880GM-LE FX
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 198mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-09-29T18:37:06Z
Board info score is 9.4/10
bios 7 BIOS files available

vendor AMI - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-161-0000010-00101111-072315-AMD-AS595161
Note
Core version
080015
BIOS version
Logs
POST string
64-150-0000010-00101111-122914-AMD-AS595150
Note
beta, improve video cards compatibility
Core version
080015
BIOS version
Logs
POST string
64-142-0000010-00101111-100213-AMD-AS595142
Note
Core version
080015
BIOS version
Logs
POST string
64-132-0000010-00101111-021813-AMD-AS595132
Note
Core version
080015
BIOS version
Logs
POST string
64-122-0000010-00101111-052112-AMD-AS595122
Note
Core version
080015
BIOS version
Logs
POST string
64-111-0000010-00101111-011212-AMD-AS595111
Note
Core version
080015
BIOS version
Logs
POST string
64-101-0000010-00101111-110811-AMD-AS595101
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

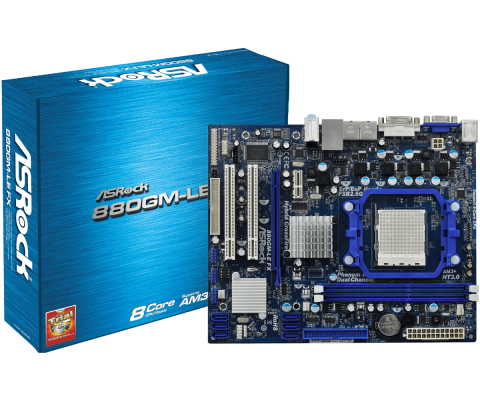

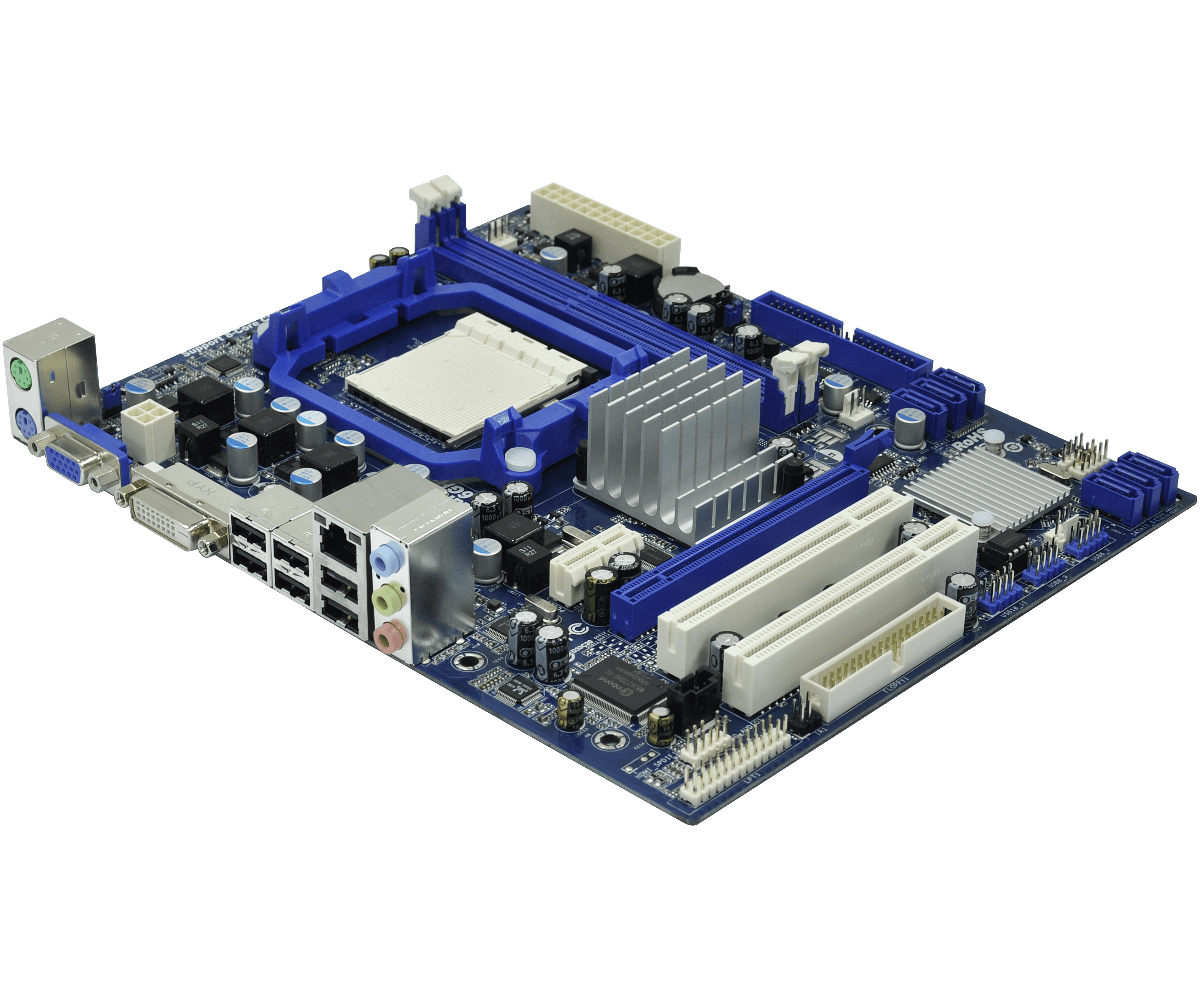

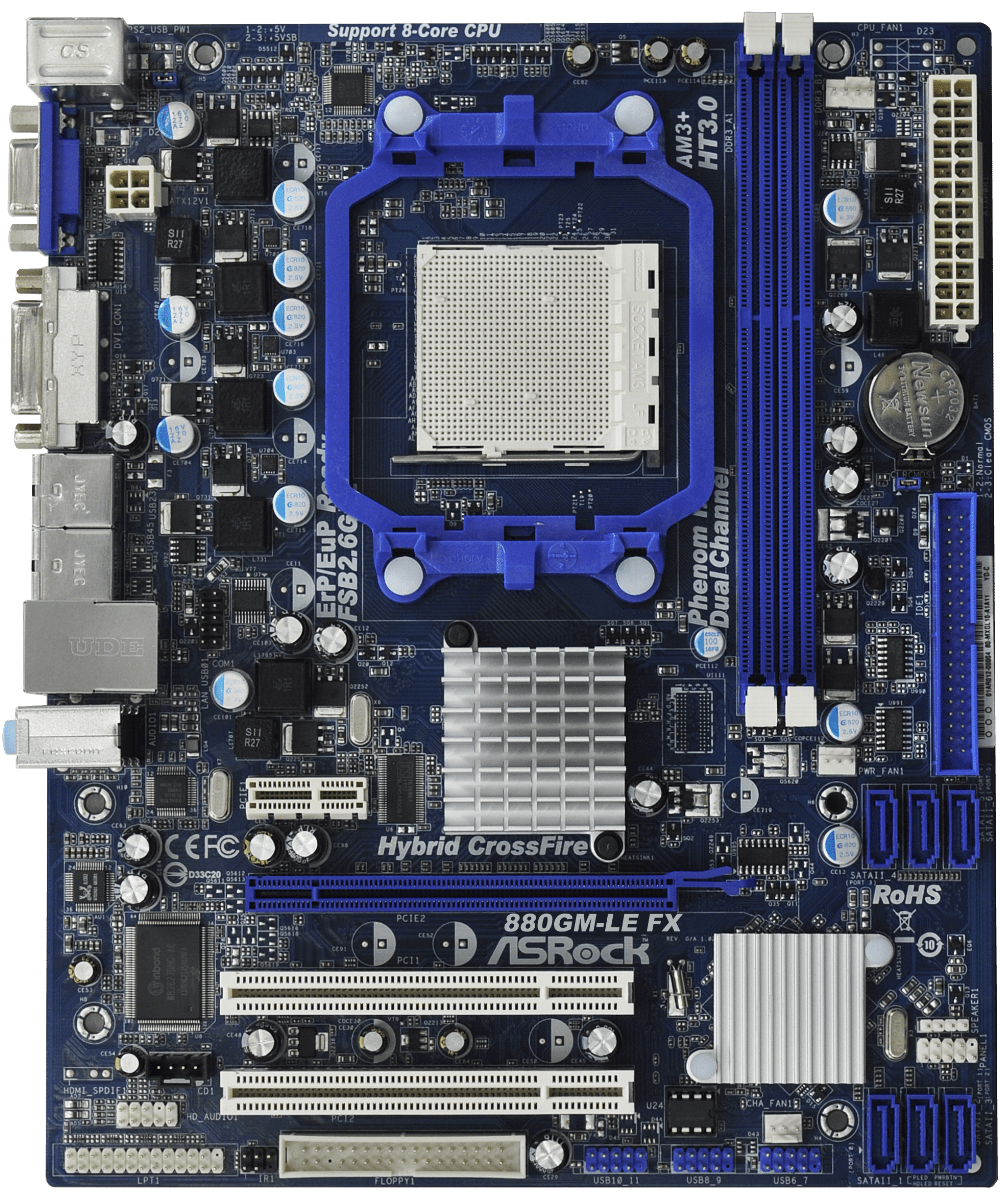

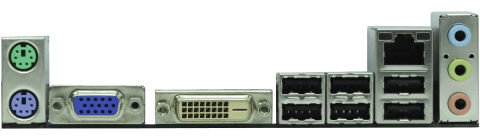

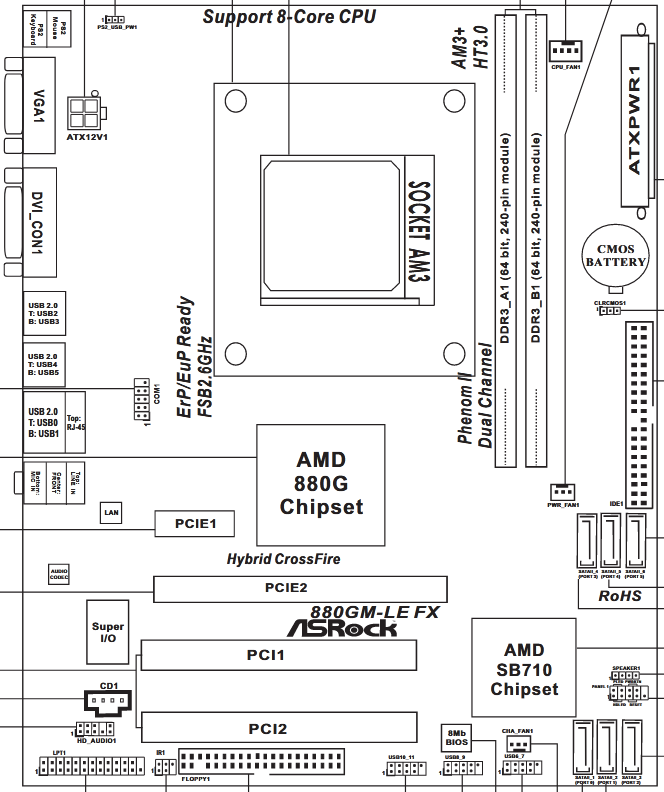

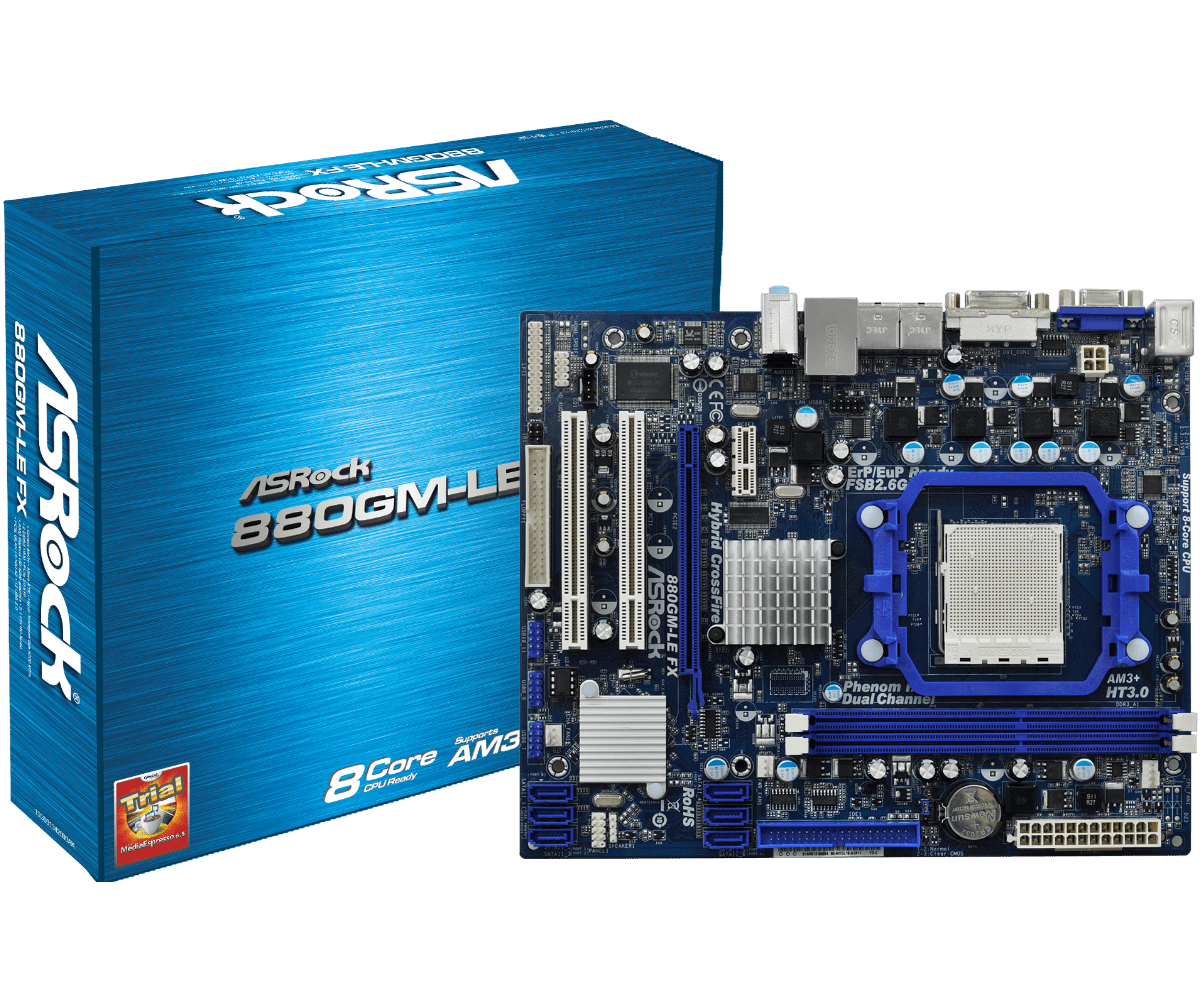

image1 Image 1 of 5 (ASRock)
image2 Image 2 of 5 (ASRock)
image3 Image 3 of 5 (ASRock)
image4 Image 4 of 5 (ASRock)
image5 Image 5 of 5 (ASRock)
