ASRock 785G Pro
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
RJ-45 LAN
2x
S/PDIF
5x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
notes Notes
  • Supports ATI™ Hybrid CrossFireX™
Last updated 2025-07-26T19:59:31Z
Board info score is 9.4/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-006-0000010-00101111-060410-AMD-AS399006
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

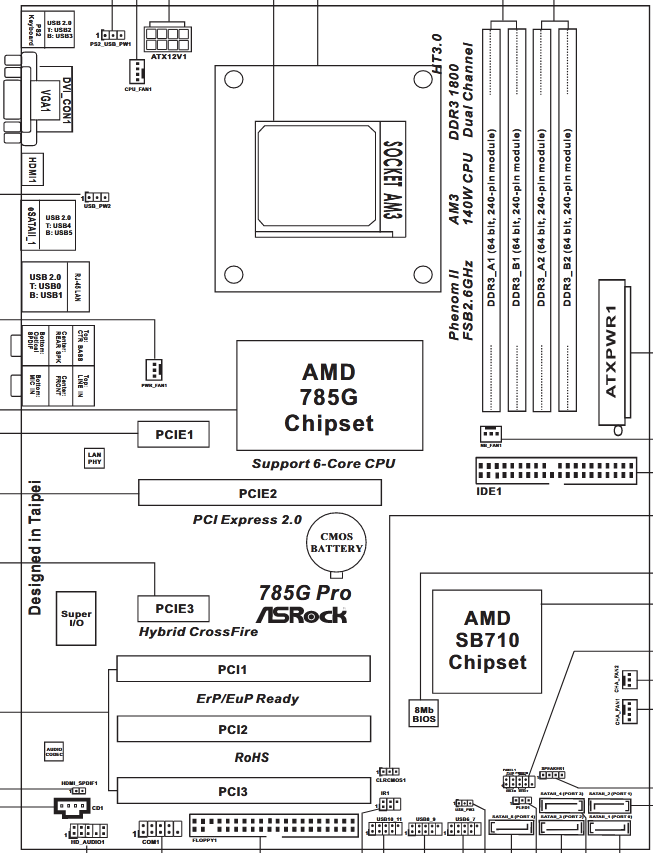

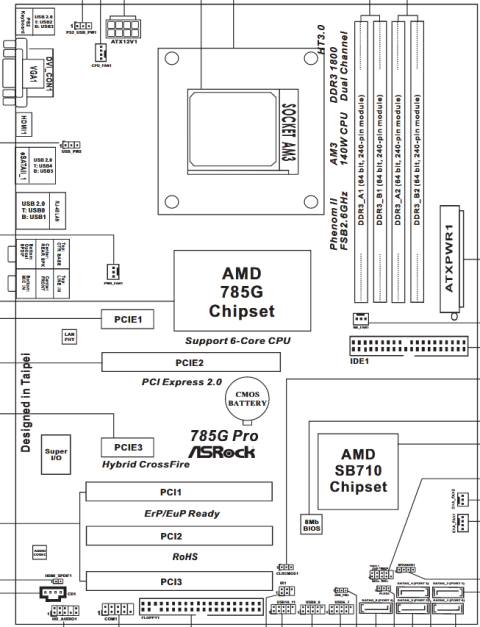

image1 Image 1 of 4 (ASRock)
image2 Image 2 of 4 (ASRock)

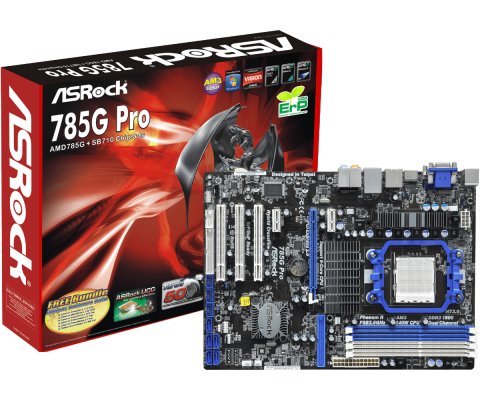

image3 Image 3 of 4 (ASRock)

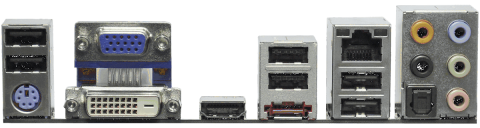

image4 Image 4 of 4 (ASRock)
