Aquarius Systems/BCOM MD-4DUV
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
25MHz33MHz40MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
250mm x 220mm
chipCache
64KB128KB256KB
ramMax RAM size
64MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
7x
16-bit ISA
3x
32-bit VLB
Last updated 2025-11-09T20:57:43Z
Board info score is 9.1/10
chip Chips
-> Chipset part
UMC UM8496 UMC UM8498F
cpufam CPU family support
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/17/94-UMC-498GP-2C4X6A31-00
Note
Core version
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

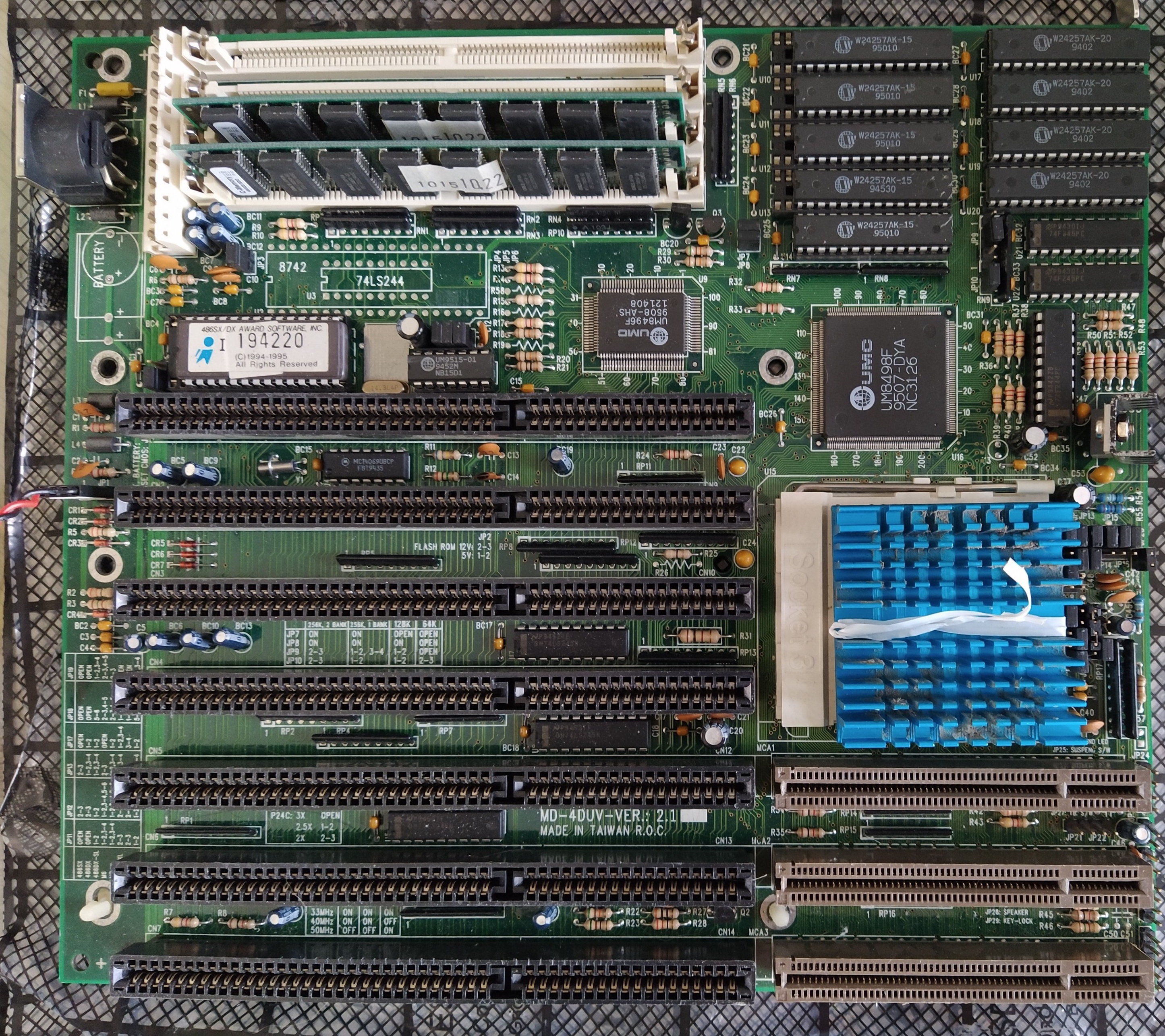

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5
image3 Image 3 of 5 (waterbeesje)

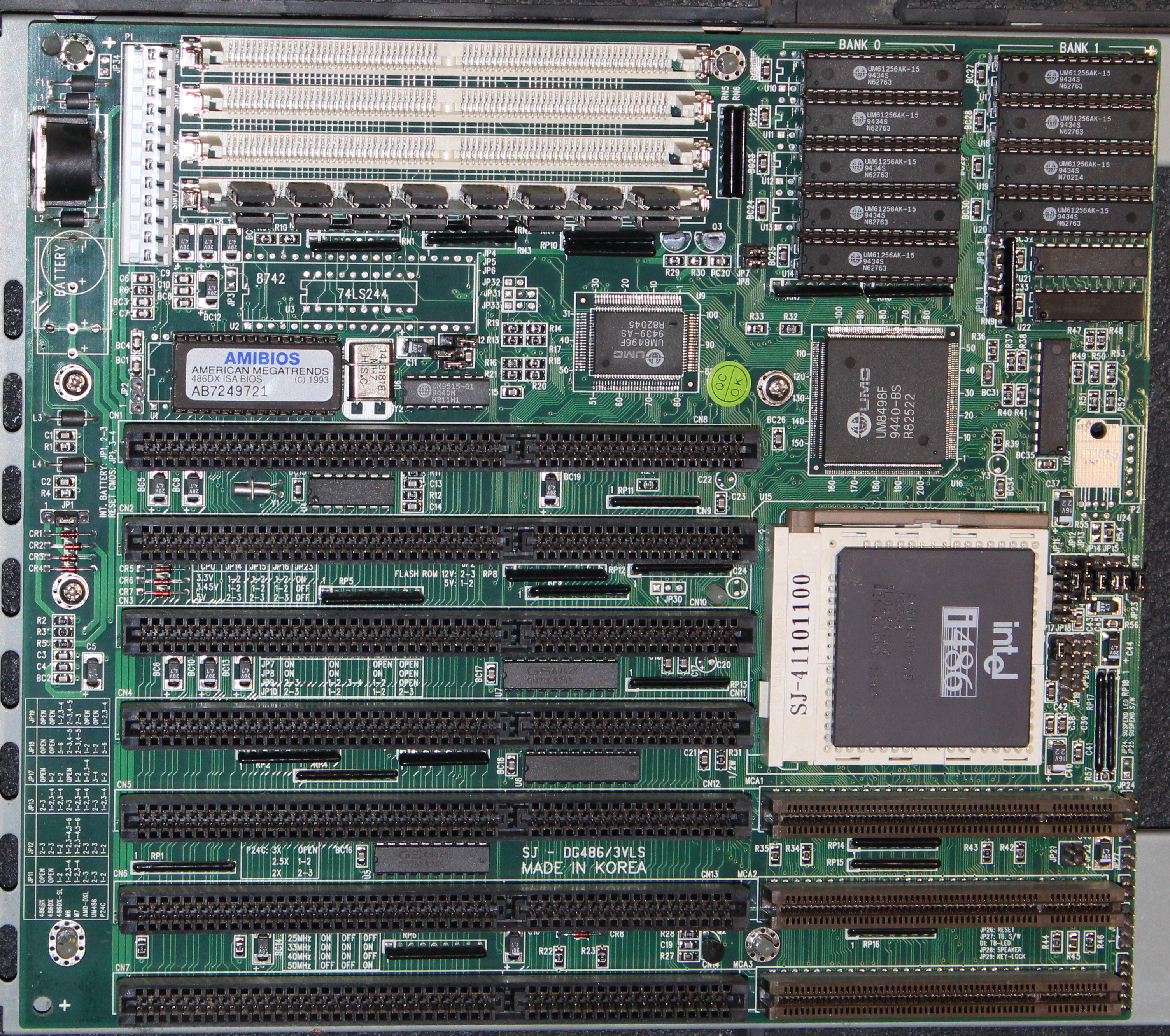

image4 Image 4 of 5 (andysarcade)

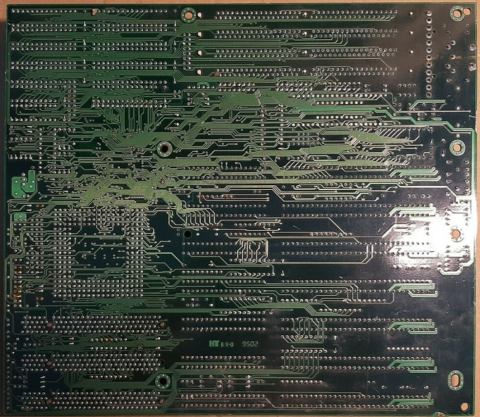

image5 Image 5 of 5
