Anigma / Solectron / SCI Pentium LPX
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
256MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
Empty
notes Notes

Support documents:
https://web.archive.org/web/20010501080833/http://www.gateway.com/support/techdocs/references/motherboard/0aagt/0aagt.shtml

Onboard video is probably S3 Trio64V2/GX based on the official manual and driver pages for the E-1000, however S3 ViRGE is listed in the support documents instead (probably due to different revisions of the motherboard being made or an error on Gateway's part).

Last updated 2025-10-30T15:41:15Z
Board info score is 9/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-01-00648200-00101111-071595-I430TX-0AAGT046
Note
Core version
071595
BIOS version
Logs
drv 18 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-07
File
Logs
Family
Release date
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

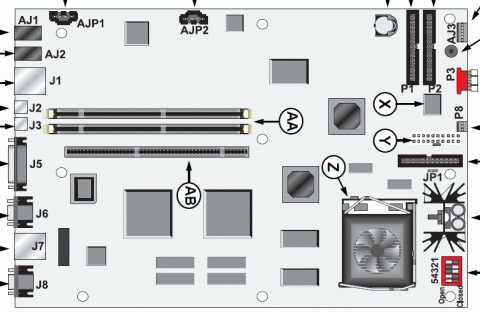

image1 Image 1 of 3

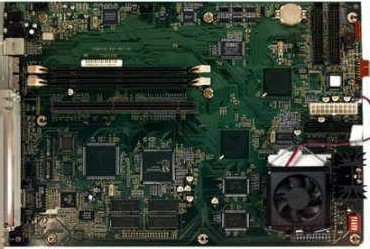

image2 Image 2 of 3
image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
