Angxun/Angthumb/XLZ X99Z V600
Logs
chipChipset
cpuSocket
Socket R3 (LGA2011-3)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
190mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM types
DDR4 UDIMMDDR4 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
RJ-45 LAN
4x
SATA II
4x
USB 2.0
6x
USB 3.0
cardExpansion slots
1x
M.2 (M key)
1x
PCIe x16
Last updated 2025-06-27T11:53:39Z
Board info score is 6/10
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

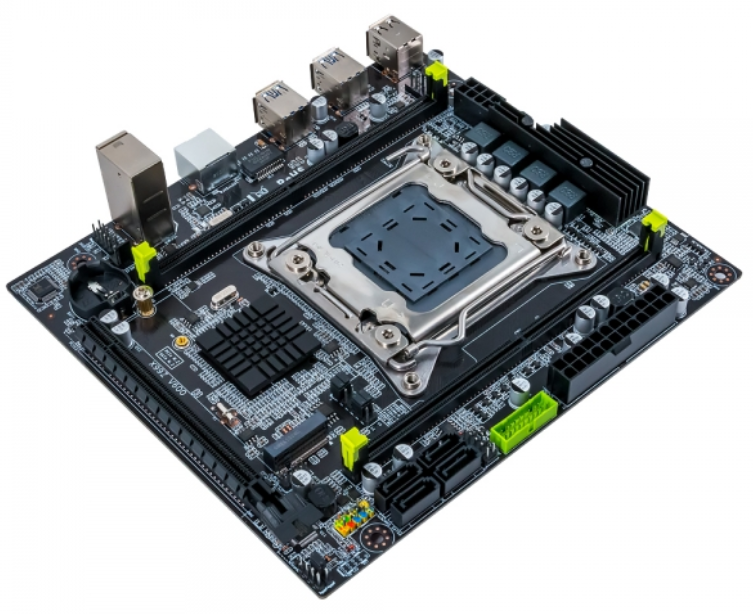

image1 Image 1 of 3 (Angxun/Ancthumb/XLZ)

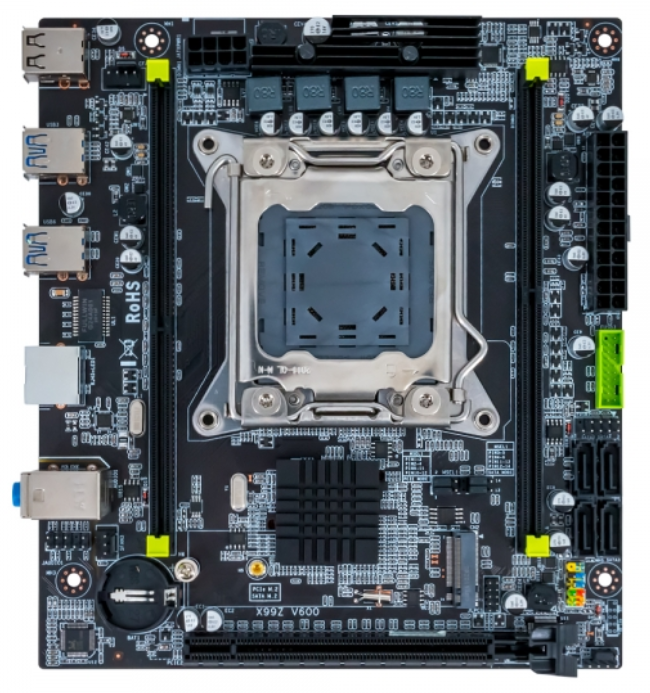

image2 Image 2 of 3 (Angxun/Ancthumb/XLZ)
image3 Image 3 of 3 (Angxun/Ancthumb/XLZ)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
