Angxun/Angthumb/XLZ X99-XD3 V2.0
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions237mm x 185mm
Cache
None/Integrated in the CPU
Max RAM size
128GB
RAM types DDR3 UDIMMDDR3 UDIMM ECC
PSU connector
Also known as
- Angxun/Angthumb/XLZ X99-XD3-V2.0
I/O ports1x
3.5mm Audio Combo
1x
RJ-45 LAN
6x
SATA III
6x
USB 2.0
6x
USB 3.0
Expansion slots1x
M.2 (E key)
2x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
1x
PCIe x4
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Last updated 2025-09-11T19:59:11Z
Board info score is 6.3/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
0 BIOS files available
No drivers available
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

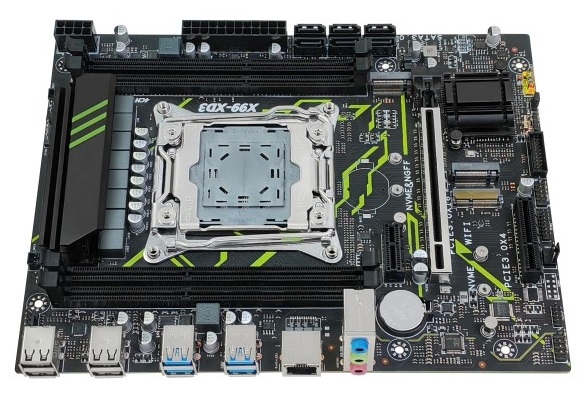

Image 1 of 2 (Angxun/Ancthumb/XLZ)
Image 2 of 2 (Angxun/Ancthumb/XLZ)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
