Angxun/Angthumb/XLZ X99-X34 V1.1
Chipset
Socket
FSB speed Empty
Form factorITX (215 mm x 191 mm)
Dimensions216mm x 190mm
Cache
None/Integrated in the CPU
Max RAM size
64GB
RAM types DDR3 UDIMMDDR4 UDIMMDDR3 UDIMM ECCDDR4 UDIMM ECC
PSU connector
Also known as
- Angxun/Angthumb/XLZ X99-X34-V1.1
I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
3x
SATA III
6x
USB 2.0
4x
USB 3.0
Expansion slots1x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Last updated 2025-07-01T20:20:59Z
Board info score is 7.2/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-091015-Chipset-0AAAA000
Note
07/05/2023
Core version
UEFI
BIOS version
Logs
No drivers available
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

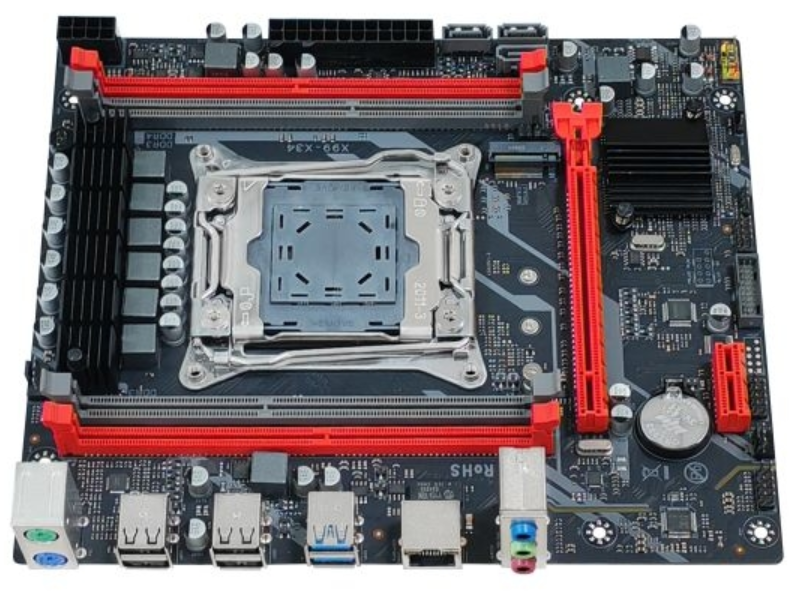

Image 1 of 2 (Angxun/Ancthumb/XLZ)

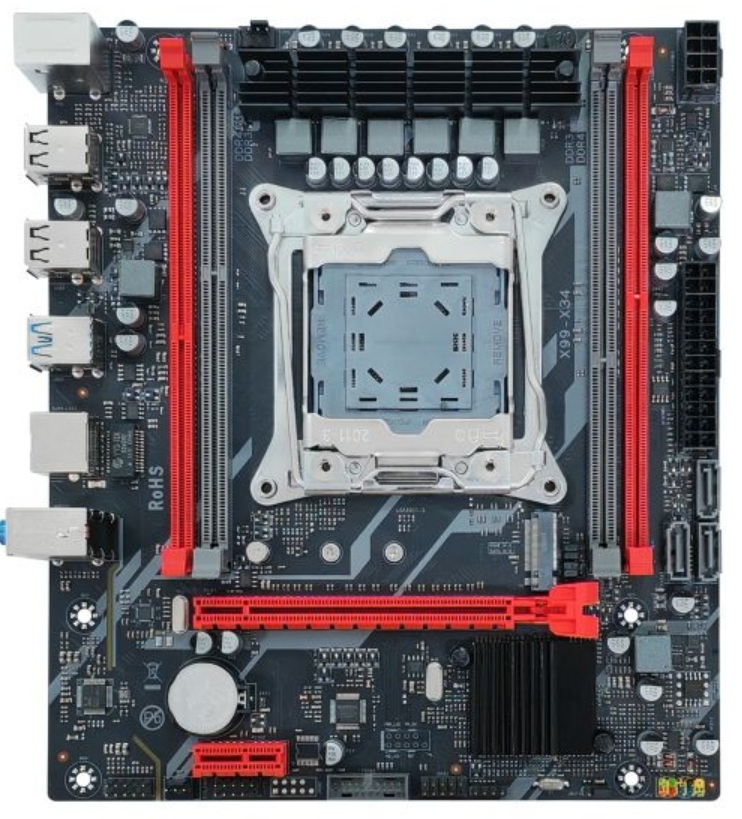

Image 2 of 2 (Angxun/Ancthumb/XLZ)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
