Angxun/Angthumb/XLZ X8-VB V2.11
Logs
chipChipset
cpuSocket
Socket H3 (LGA1150)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
RJ-45 LAN
2x
SATA II
1x
SATA III
6x
USB 2.0
4x
USB 3.0
1x
VGA
cardExpansion slots
1x
M.2 (M key)
1x
PCIe x16
Last updated 2025-06-28T21:16:53Z
Board info score is 6.7/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.0.4.43v2
OS support
Windows 7
Arch
Size
5.3MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-06-03
File
Logs

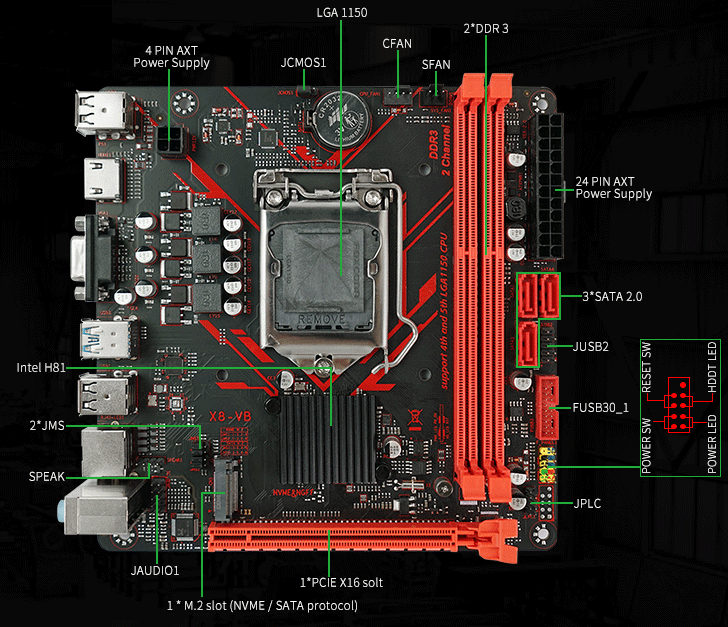

image1 Image 1 of 4 (Angxun/Ancthumb/XLZ)

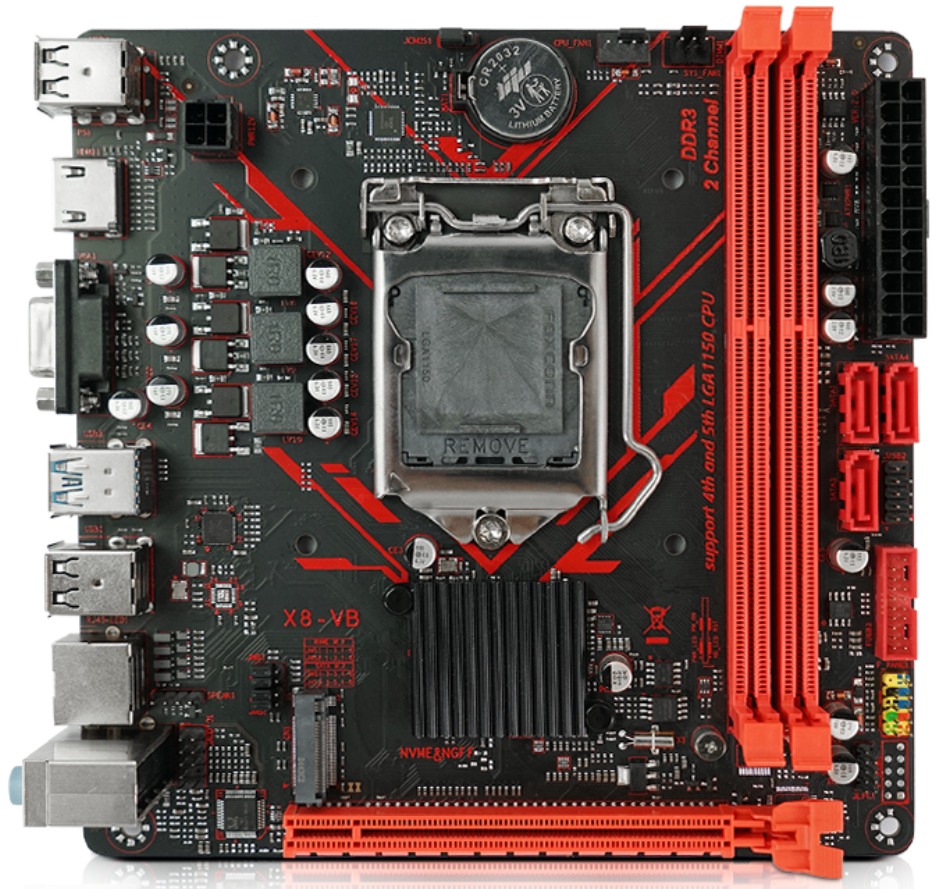

image2 Image 2 of 4 (Angxun/Ancthumb/XLZ)
image3 Image 3 of 4 (Angxun/Ancthumb/XLZ)

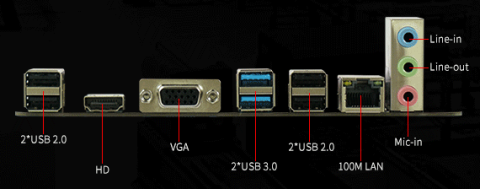

image4 Image 4 of 4 (Angxun/Ancthumb/XLZ)
