Angxun/Angthumb/XLZ X79Z VER: 2.4F_G
Logs
chipChipset
cpuSocket
Socket R (LGA2011-0)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
283mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
128GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
2x
SATA III
12x
USB 2.0
4x
USB 3.0
cardExpansion slots
1x
32-bit PCI
1x
M.2 (M key)
1x
PCIe x1
2x
PCIe x16
notes Notes

Motherboard was made fitted with one of several different X79 Series Compatible Chipsets

Last updated 2025-07-01T21:43:31Z
Board info score is 6/10
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

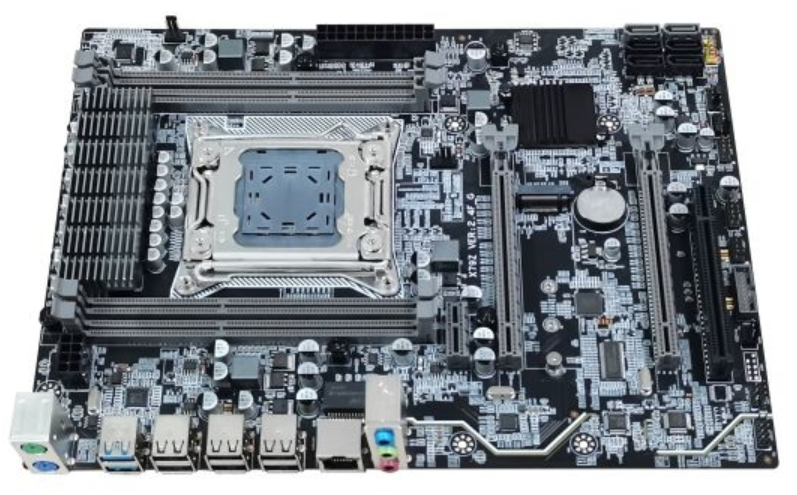

image1 Image 1 of 2 (Angxun/Ancthumb/XLZ)

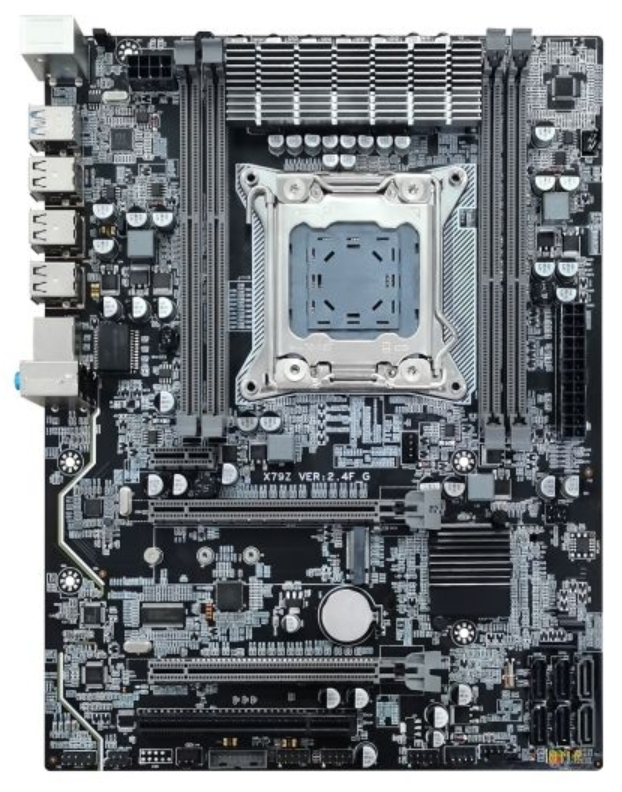

image2 Image 2 of 2 (Angxun/Ancthumb/XLZ)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
