Angxun/Angthumb/XLZ X79_S290 V2.84
Logs
chipChipset
cpuSocket
Socket R (LGA2011-0)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
237mm x 187mm
chipCache
None/Integrated in the CPU
ramMax RAM size
128GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
3x
SATA II
1x
SATA III
8x
USB 2.0
4x
USB 3.0
cardExpansion slots
1x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
Last updated 2025-06-27T18:59:51Z
Board info score is 7.3/10
chip Chips
-> Chipset part
Intel BD82X79 (PCH)
-> Audio
Realtek ALC897 (High Definition Audio)
-> Network
Realtek RTL8111H (PCIe Gigabit Ethernet)
cpufam CPU family support
Empty
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
04/01/2024
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

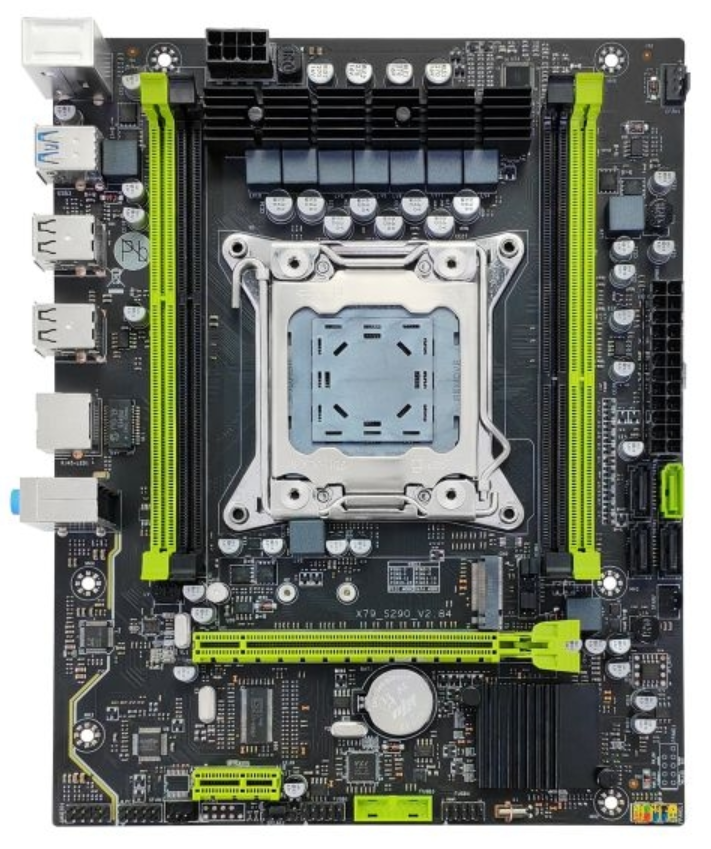

image1 Image 1 of 2 (Angxun/Ancthumb/XLZ)

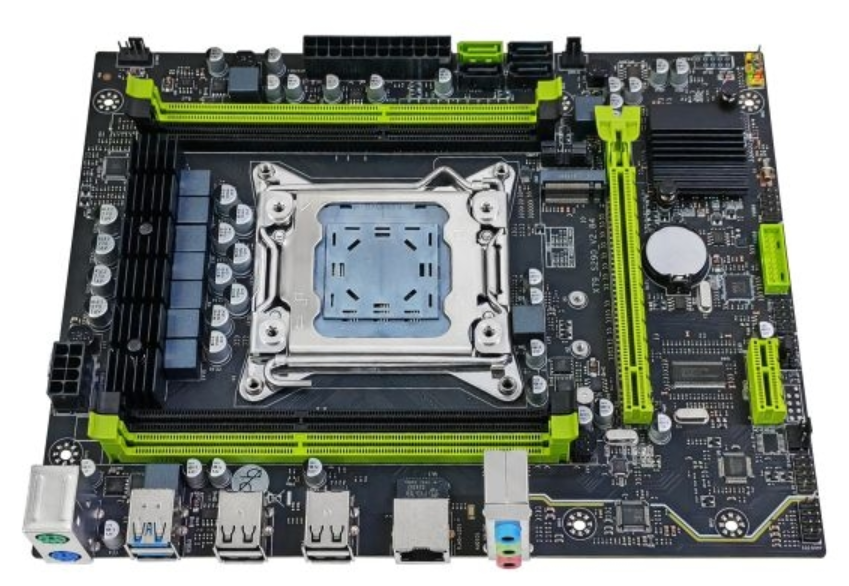

image2 Image 2 of 2 (Angxun/Ancthumb/XLZ)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
