Angxun/Angthumb/XLZ X58V310S3
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
224mm x 188mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
12x
USB 2.0
cardExpansion slots
1x
PCIe x1
1x
PCIe x16
Last updated 2025-07-04T19:24:31Z
Board info score is 6/10
chip Chips
-> Chipset part
Intel AC82X58 (IOH) Intel AF82801JIR (ICH10R)
-> Network
Realtek RTL8111G (PCIe Gigabit Ethernet)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

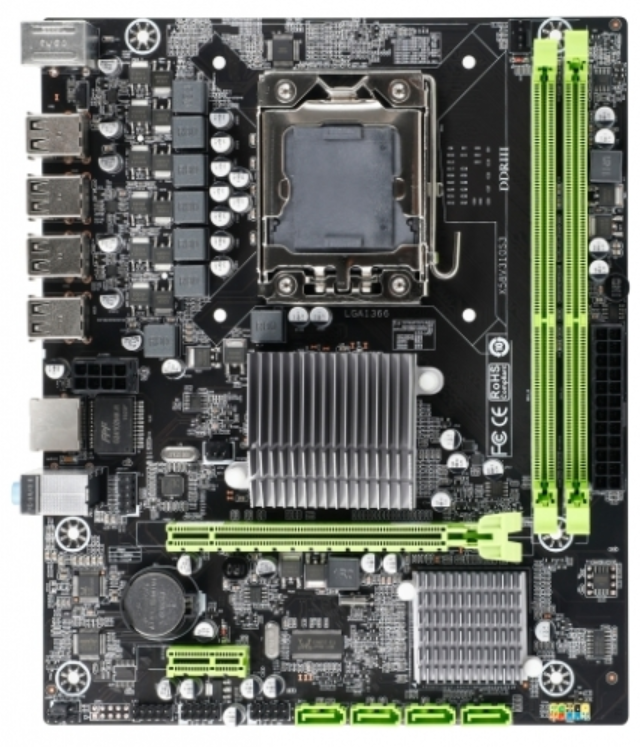

image1 Image 1 of 2 (Angxun/Ancthumb/XLZ)

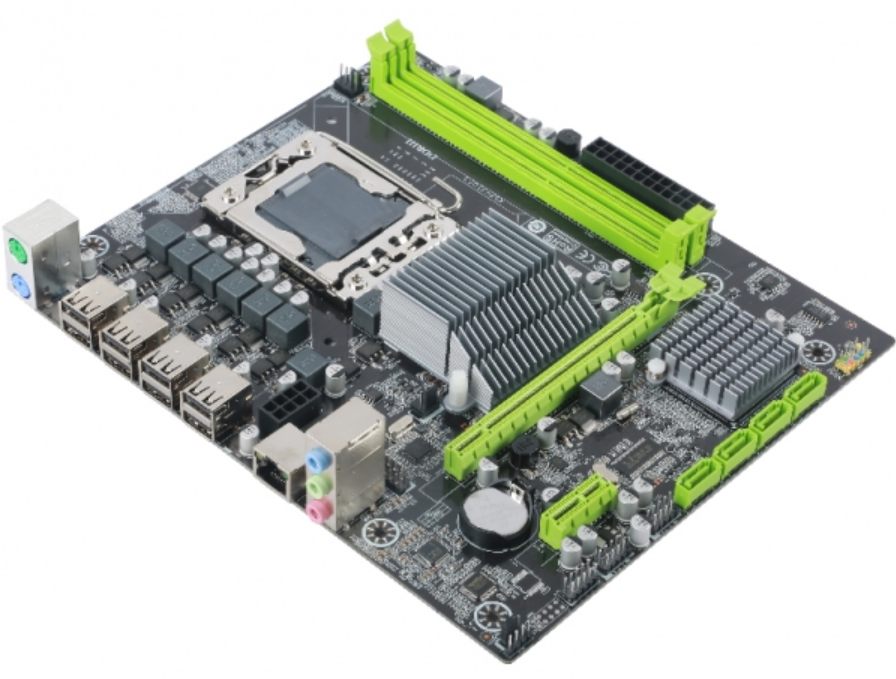

image2 Image 2 of 2 (Angxun/Ancthumb/XLZ)
