Angxun/Angthumb/XLZ P55 VER: M31B
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
ITX (215 mm x 191 mm)
dimDimensions
211mm x 171mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
8x
USB 2.0
cardExpansion slots
1x
32-bit PCI
1x
PCIe x16
wrench Known issues
  • Falsely advertised chipset

This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.

Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.

Last updated 2025-06-27T12:23:26Z
Board info score is 5.5/10
chip Chips
-> Chipset part
Intel BD3420 (PCH)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

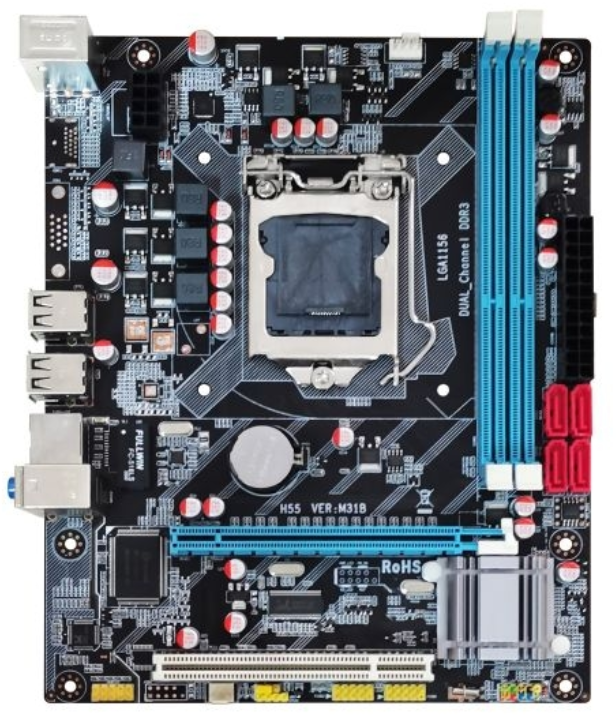

image1 Image 1 of 3 (Angxun/Ancthumb/XLZ)

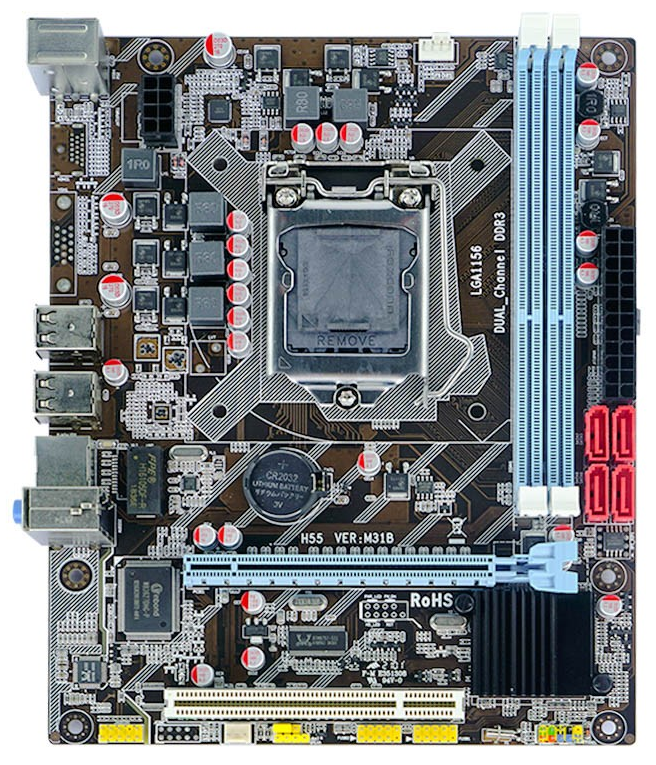

image2 Image 2 of 3 (Angxun/Ancthumb/XLZ)

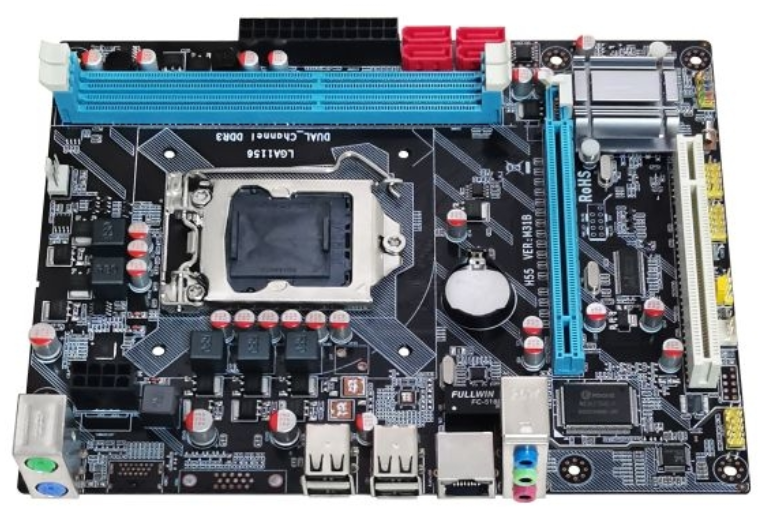

image3 Image 3 of 3 (Angxun/Ancthumb/XLZ)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
