Angxun/Angthumb/XLZ OPS67 V1.0
Logs
chipChipset
Empty
cpuSocket
Socket H4 (LGA1151)
speedFSB speed
Empty
moboForm factor
OEM / Proprietary
dimDimensions
190mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
260-pin DDR4 SO-DIMM
pwrPSU connector
OEM/Proprietary ATX P4 connector 12v (4-pin P4)
tag Also known as

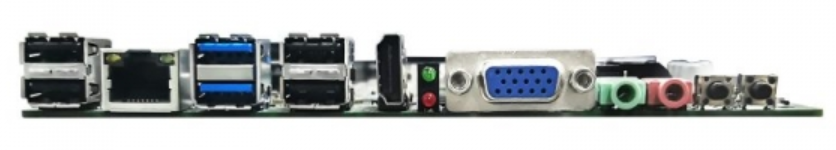

connI/O ports
1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
HDMI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
SATA III
4x
USB 2.0
2x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
notes Notes

Extended daughter card:

  • Expandable 1 USB3.0 interface and 3 USB2.0 interfaces.
  • An HDMI interface can be extended to support HDMI1.4, and the maximum resolution is 4096x2304@24Hz.
  • 1 expansion COM port (TTL mode supported)
  • 1 standard 2.5mm DC power socket; 1 2x2Pin ATX power socket, all supporting DC19V/12V power input.
  • 1 Line-out
Last updated 2025-07-04T20:50:55Z
Board info score is 5.8/10
bios 0 BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86 , x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86 , x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86 , x86-64
Size
3.6MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
2011-02-11
File
Logs

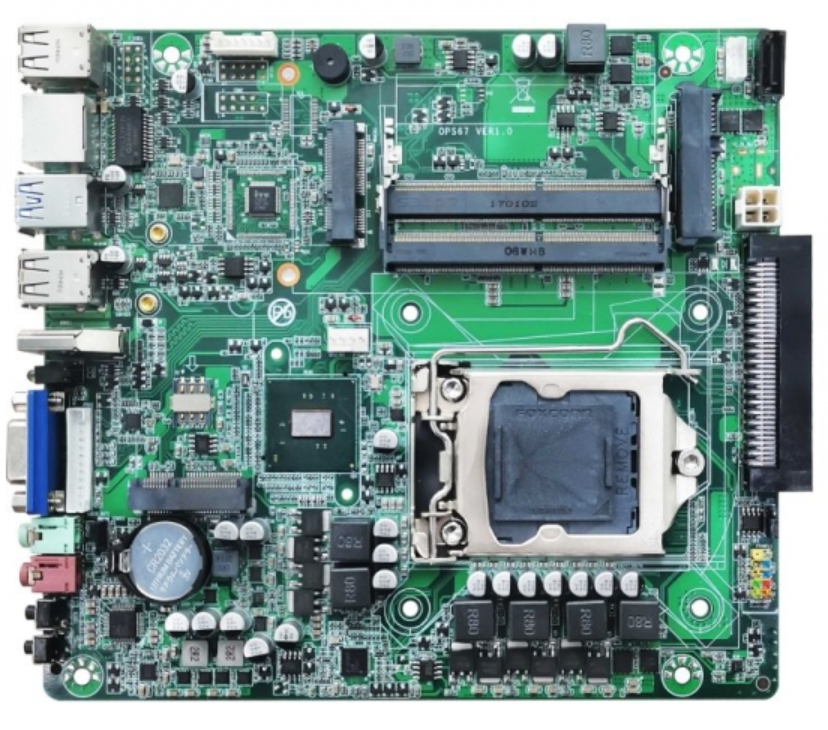

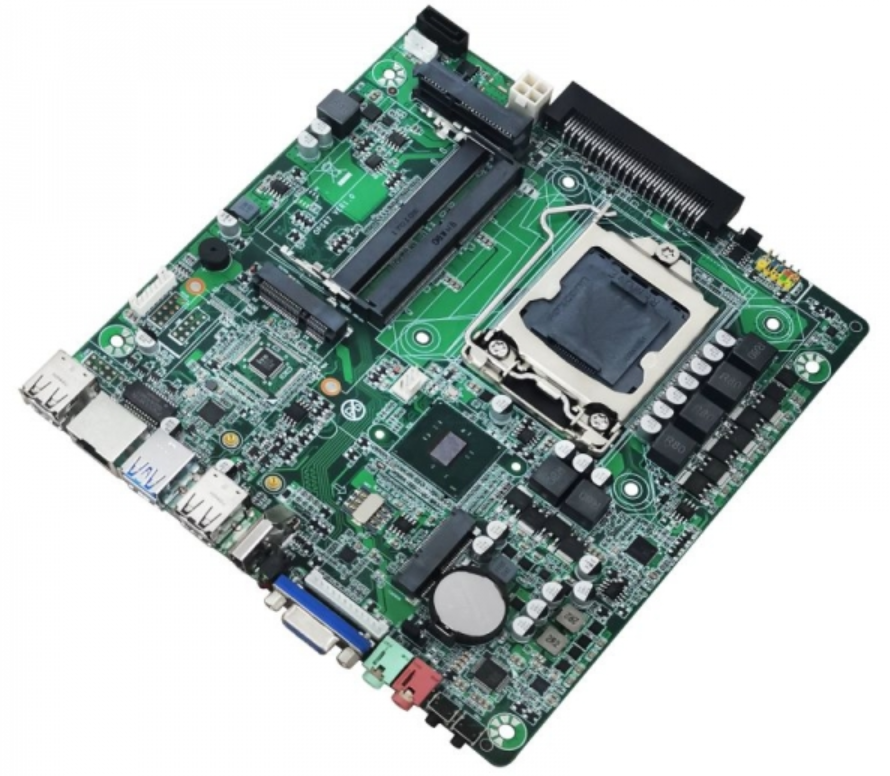

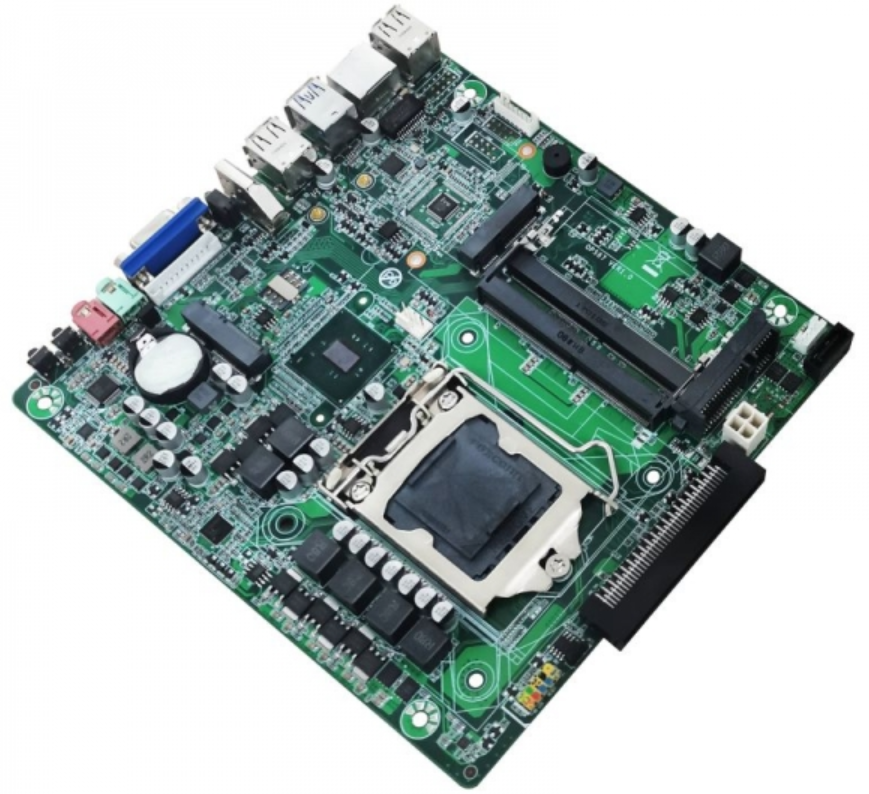

image1 Image 1 of 4 (Angxun/Ancthumb/XLZ)
image2 Image 2 of 4 (Angxun/Ancthumb/XLZ)
image3 Image 3 of 4 (Angxun/Ancthumb/XLZ)
image4 Image 4 of 4 (Angxun/Ancthumb/XLZ)
